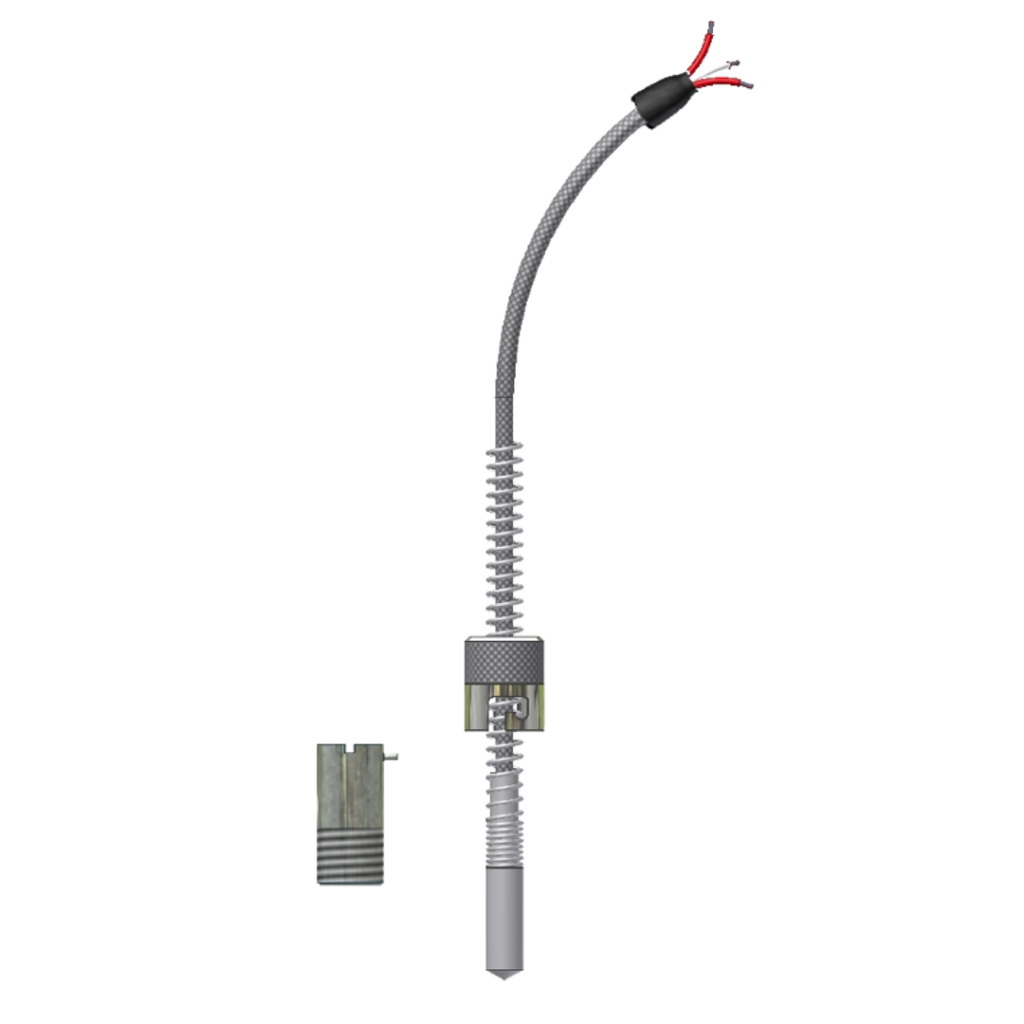

Thermo-Electra WF 5820 Adjustable bayonet resistance thermometer
Click to enlarge

Thermo-Electra WF 5820 Adjustable bayonet resistance thermometer

Thermo-Electra WF 5820 Adjustable bayonet resistance thermometer

Product Code: WF5820

Manufacturer: Thermo-Electra


Thermo-Electra Plastic industry RTD sensors. Designed for injection molding and plastics machinery and general-purpose applications. Temperature sensors with a Bayonet cap connection have one or two slots adjustable bayonet caps allowing easy mounting and replacement. These Bayonet and threaded Pt100 sensors are available in different models and dimensions.

Insertion length Springloaded
Diameter 8 mm
Bayonet Diameter 15 mm, two slots
Spring Length 200 mm
PTFE insulated flexible cable with stainless steel braiding, 240°C
Cable length Customer to specify ( 3000 mm standard )
Customer to specify 16 or 40 mm
400°C maximum
Single Pt 100
Accuracy According IEC 751 class B
Style / Connection 3 wire system
Please order separately
Model A1 Process connection 1/4″BSP
Model A2 Process connection 3/8″BSP
Model A3 Process connection M14 x 1.5
Datasheet Download
