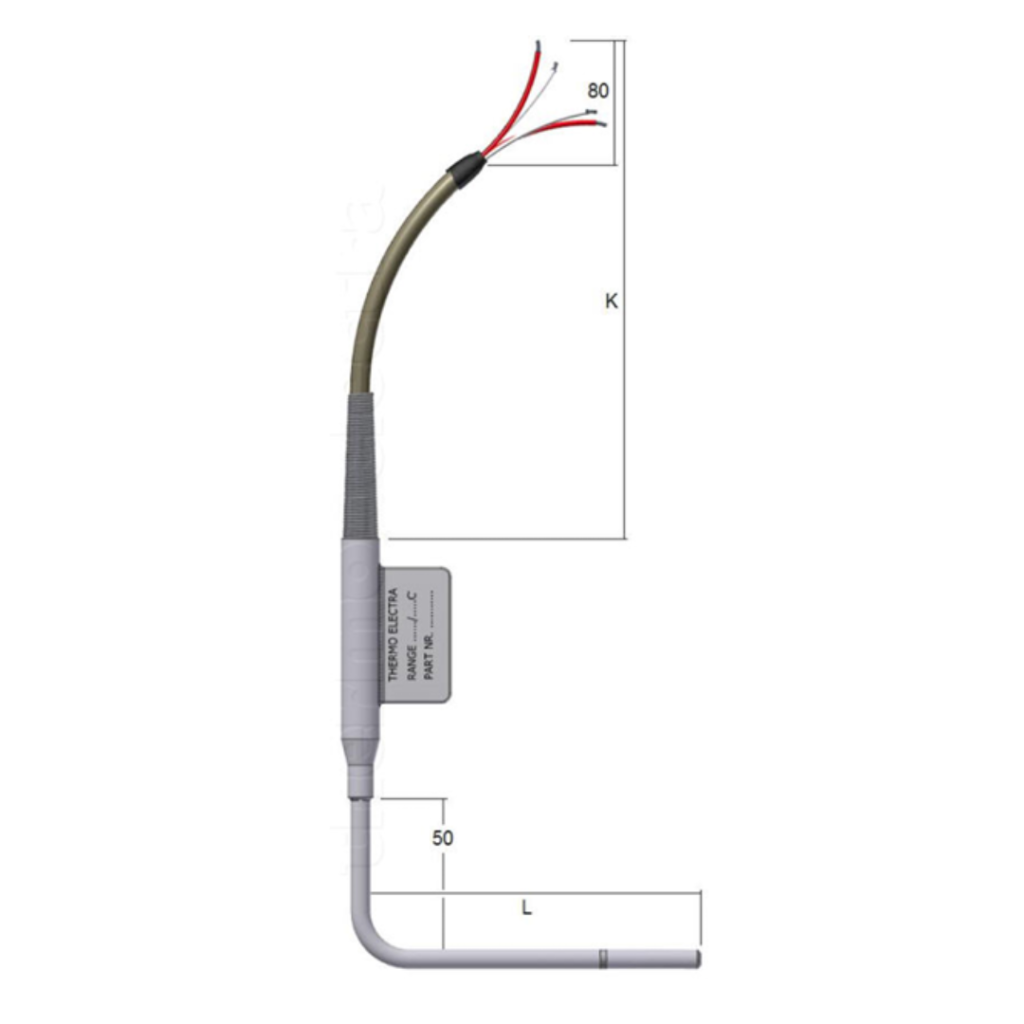

Thermo-Electra REF 2042 Reference resistance thermometer with traceable calibration certificate

Product Code: REF2042

Manufacturer: Thermo-Electra

Enquire

Thermo-Electra RTD sensors with cable or plug such as Pt100 sensors are made in all sizes starting from 0.5 mm. Both standard and high vibration resistant versions in single and duplex in 2, 3 and 4 wire system. You can select from a wide range of designs from quick connect type to transition style. We offer glass, ceramic, wire wound and thin film sensors.

Features
Downloads

Construction	Mineral insulated
Material	SS 316 – (Wst 1.4401)
Insulation	MgO
Diameter “D”	3 or 6 mm, customer to specify
Length	Customer to specify

	Silicone insulated flexible with tinned copper braiding,200°C
Cable length	Customer to specify

Single or Duplex Pt100
Accuracy	According IEC 60751 Cl. B, A or AA
Style / Connection	4-wire system
Range	-20°C to +400°C standard, -220°C to +600°C optional
Testing	Tested 500 Vdc @ 20°C
Insulation resistance	Minimum 100Mohm

Elevated range	Up to 600°C, initial accuracy can drift due to this higher temperature, recalibration on a regular basis is recommended

Elevated range

Up to 600°C, initial accuracy can drift due to this higher temperature, recalibration on a regular basis is recommended

Calibration temperature points	To specify

Calibration temperature points

To specify

	1) Traceable to the national standard
	2) RvA or BELAC certificate
	3) VSL certificate (national standard)
Other RTD / resistance temperature detector	For example Pt25, Pt500
