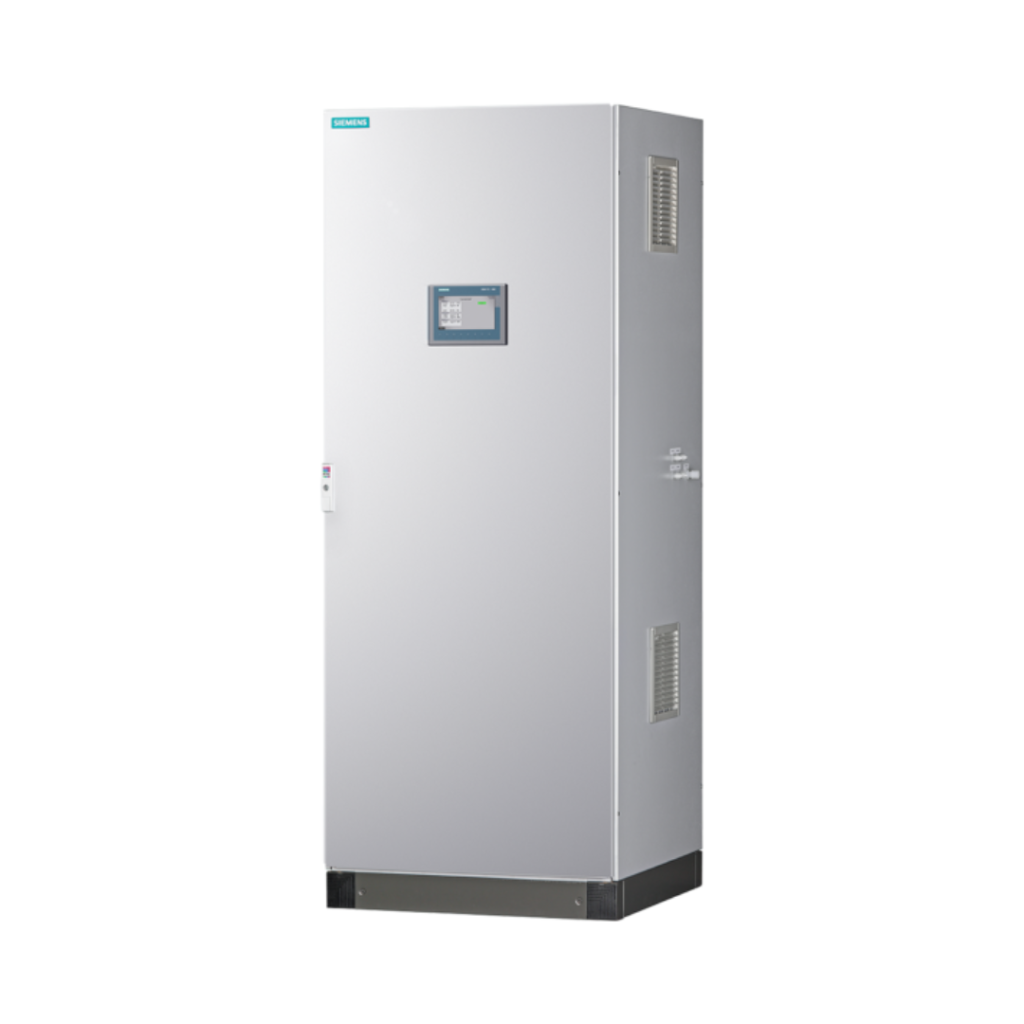

Siemens Gasmet CEMS

Siemens Gasmet CEMS

Siemens Gasmet CEMS

Product Code: Gasmet CEMS

Manufacturer: Siemens


Benefits

Standardized complete system
  • Highly accurate and reliable monitoring of emission components in flue gases
  • Modular complete package with gas sampling system, hot sample processing, measurement at 180 °C, data processing and analysis
  • Numerous analog and digital signal I/Os
  • Simultaneous multicomponent analysis of 16 gas components as standard:
    CO, CO2, HCl, HF, H2O, NH3, NO, NO2, N2O, SO2, CH4, C2H4, C2H6, C3H8, C6H14, HCOH
  • Additionally calculated from the FTIR measurement: NOx and total carbon values
  • Approval for FTIR-based emission measurements (QAL 1 in accordance with EN 14181) possible for ten measured components
  • Can be expanded with one or two additional analyzers for measuring oxygen and for FID-based total carbon measurement (also with QAL 1 approval, if required)
  • Simple and fast to configure
  • Tried and tested, harmonized and reliable set
  • Low purchase price and economic operation
Proven, performance-tested technologies
  • Continuous determination of up to eleven measured components
  • Simultaneous FTIR measurement for CO, CO2, HCl, H2O, NH3, NO, NO2, N2O and SO2
  • Optionally: Use of a QAL1 certified ZrO2 oxygen analyzer with hot sample feed
  • Optionally: FID-based total organic carbon measurement with FIDAMAT 6
Simple operation
  • Intuitive operation
  • Configuration on a large TFT display using keyboard
Easy maintenance
  • Maintenance-friendly cabinet design with 19” telescopic rails
  • Digital display of maintenance requirements

Application

The measurement and monitoring of emission components in flue gases is one of the most important topics for continuous gas analysis. This is a result of legislation for monitoring emissions, e.g. for waste incinerators, and also due to the requirements of companies operating process plants who can draw conclusions on process efficiency from the gas analyses, e.g. with boiler and oven controls, DeNOx and DeSOx plants.

The market requires a reliable complete system which is specially designed for the application. The Gasmet CEMS (Continuous Emission Monitoring System) offered by Siemens is an extractive and continuous gas probe measuring system based on established FTIR spectroscopy method. It reliably covers all requirements associated with sampling, sample processing, and gas analysis.

The concentration of the following gas components can be determined on the basis of FTIR: CO, CO2, HCl, HF, H2O, NH3, NO, NO2, N2O, SO2, CH4, C2H4, C2H6, C3H8, C6H14and HCOH. The FTIR measurement can also be used to derive additional values for total organic carbon and NOx. In addition, the Gasmet CEMS offers space for an optional ZrO2 oxygen analyzer as well as a FIDAMAT 6 for determining total organic carbon levels (also QAL1 certified, if required).

The standardized Gasmet CEMS provides great clarity and simple configuration facilities. Different versions facilitate individual adaptation to the system requirements in hand. Standardization, however, also means that not all imaginable versions can be included, and that it may not always be possible to implement particular requirements such as armored cables, customer-specific documentation or special conductor labeling without an extra charge.
