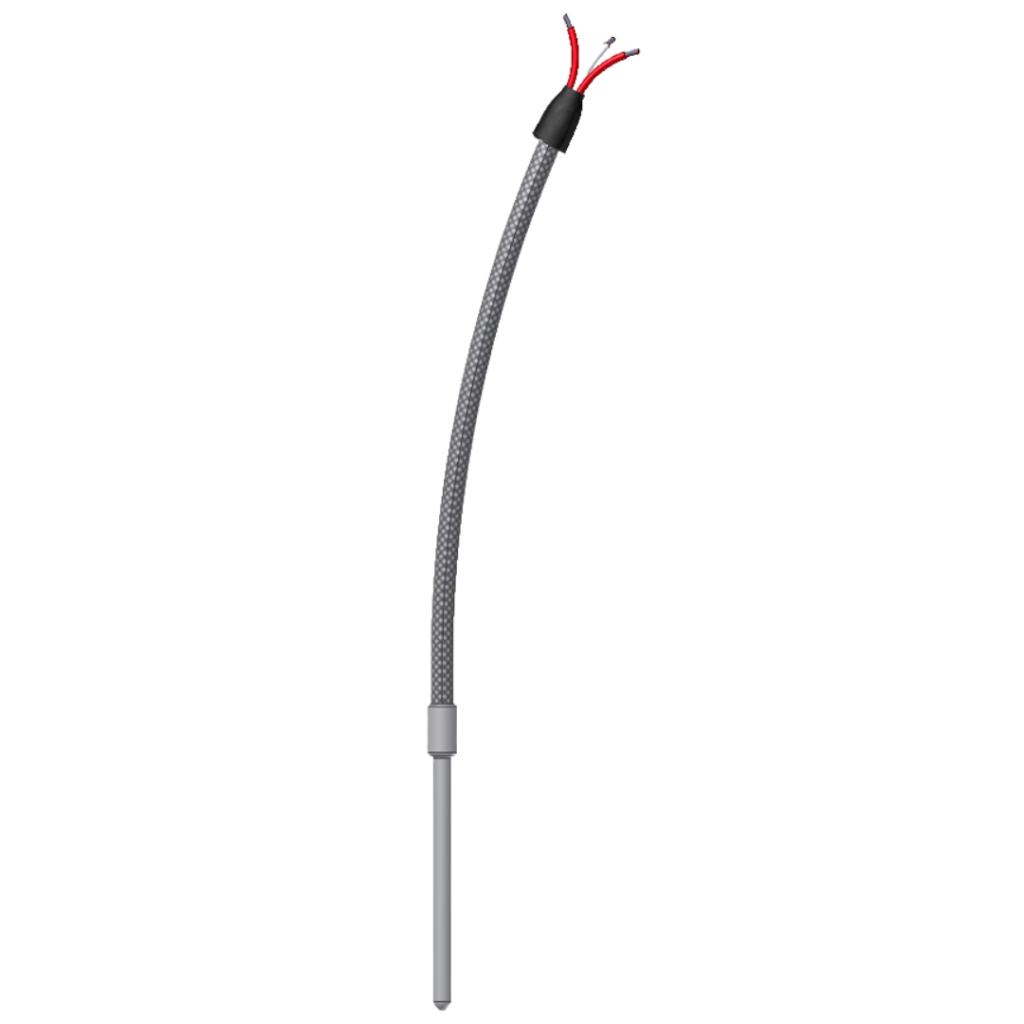

Thermo-Electra WF 5850 Miniature resistance thermometer
Click to enlarge

Thermo-Electra WF 5850 Miniature resistance thermometer

Thermo-Electra WF 5850 Miniature resistance thermometer

Product Code: WF5850

Manufacturer: Thermo-Electra


Designed for injection molding and plastics machinery and general-purpose applications. Thermo-Electra Plastic industry RTD sensors with a Bayonet cap connection have one or two slots adjustable bayonet caps allowing easy mounting and replacement. These Bayonet and threaded Pt100 sensors are available in different models and dimensions.

Construction Closed-end tube
Diameter 3.5 mm standard
Insertion length “L” 29 mm standard
PTFE insulated flexible armoured cable, 240°C
Cable length “K” Customer to specify ( 3000 mm standard )
400°C maximum
Single Pt100
Accuracy According IEC 60751 class B
Style / Connection 3 wire system
Datasheet Download
