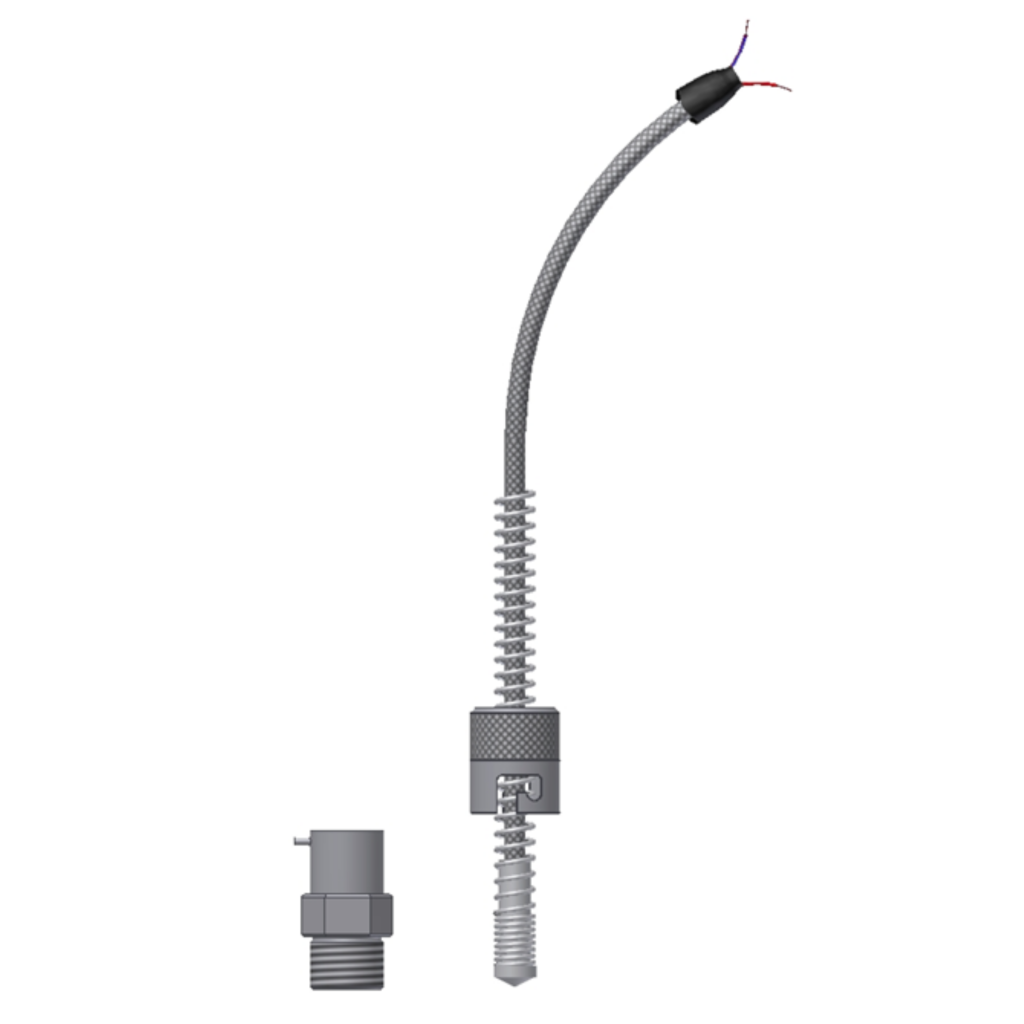

Thermo-Electra TF 5810 Adjustable bayonet thermocouple
Click to enlarge

Thermo-Electra TF 5810 Adjustable bayonet thermocouple

Thermo-Electra TF 5810 Adjustable bayonet thermocouple

Product Code: TF5810

Manufacturer: Thermo-Electra


Thermo-Electra Plastic industry thermocouples are designed for injection moulding, plastics industry machinery, and general-purpose applications. For easy mounting and replacement our temperature sensors have a bayonet cap with one or two slots. We offer a wide range of Bayonet threaded and extruder nozzle thermocouple sensors in different models and dimensions.

Insertion length Springloaded
Diameter 8.0mm standard, other diameters possible
Bayonet Diameter 12.2 mm, one slot
Spring Length 200 mm
PTFE insulated thermocouple cable with steel wire braiding
Length 3000mm standard, other lengths possible
Calibration K, J or L
For duplex KK, JJ or LL
Accuracy According IEC 60584 / DIN 43710
Temperature 400 °C maximum
Hot junction Grounded
Model B1 Process connection 1/4″BSP (G1/4″)
Model B2 Process connection 3/8″BSP (G3/8″)
Model B3 Process connection M14x1.5
Please order separately
