Thermo-Electra LEX15 Ex e certified thermocouple with cable for zone 1 and 2

Thermo-Electra LEX15 Ex e certified thermocouple with cable for zone 1 and 2

Product Code: LEX 15

Manufacturer: Thermo-Electra


Thermo-Electra produces ATEX- and IECEx-certified thermocouples and Pt100 sensors, both single and multi-point sensors with ATEX and IECEx certification for Exe, Exia, Exna/Exce, Exd, Extb for zones 0, 1, 2 and 20, 21, 22. The sensors are available in various designs, and customer-specific options and available with a certified integrated head transmitter or display with 4-20mA, Hart or Profibus communication.

ATEX execution II 2 G Ex eb IIC T6…T1 Gb
ATEX certificate DEKRA 17ATEX0123 X
IECEx execution Ex eb IIC T6…T1 Gb
IECEx certificate IECEx DEK 17.0046X
Suitable for zone 1 and 2
Ingress protection IP65 / IEC529
Ambient temp. range -45°C…+80°C, this can be limited depending on the materials applied such as cable, connection head or junction box.
Construction Mineral insulated (MgO)
Material SS316 standard, other materials possible
Diameter Customer to specify (0.25-12.7mm)

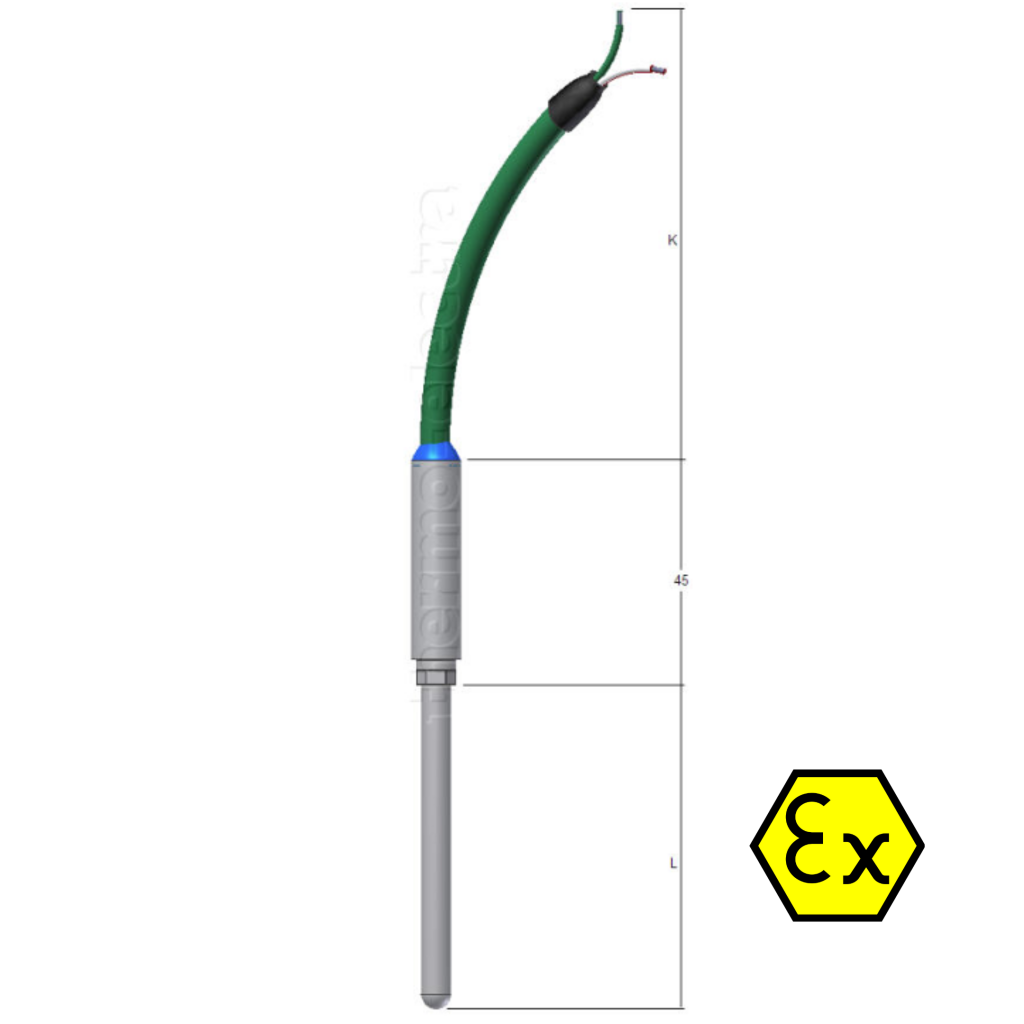

Length Customer to specify
Isolated
Length 45 mm
Diameter To suit cable diameter
Type of cable PVC standard
Option PUR, Silicon or PTFE insulated cable
Cable length Customer to specify
Calibration K, T, J, E, N, R, S, B, U or L
For duplex KK, TT, JJ, EE, NN, RR, SS, BB, UU or LL
Accuracy According to IEC 60584-1
This datasheet is purely indicative, build-up of model code may vary from this datasheet depending on chosen model or execution!
Datasheet Download
