Thermo-Electra RV 2097 Indoor resistance thermometer

Thermo-Electra RV 2097 Indoor resistance thermometer

Product Code: RV2097

Manufacturer: Thermo-Electra


Thermo-Electra RTD sensor with connection head are resistance thermometers specifically designed for heavy-duty temperature sensing applications like ovens, machines and industrial environments where their robust construction ensures a prolonged sensor life. These RTD’s are built with a Pt100 detector to EN60751 and are available in accordance with IEC 751 Class A, B and 1/10B. An optional two-wire head-mounted transmitter can be supplied and also ATEX certification for areas with the risk of an explosion, zone 0, 1, 2, 21 and 22.

For indoor wall or ceiling mounting, with attractive box. Low cost roomtemperature sensor
Colour White
Material Moulded ABS
Dimensions 86 x 86 x 30 mm
Cable entry In bottom
Single Pt100

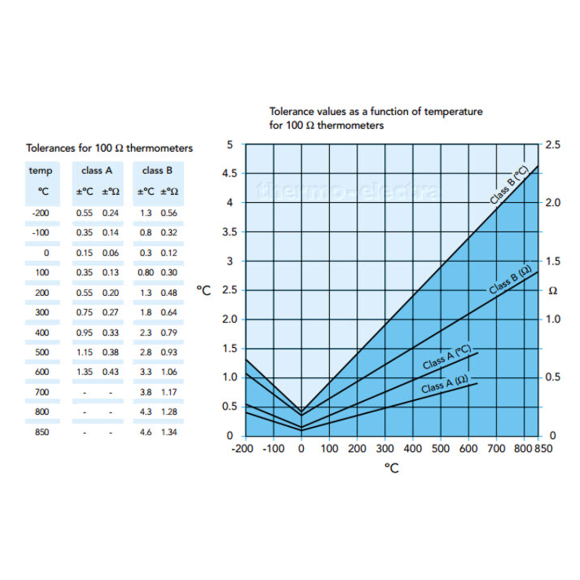

Accuracy According IEC 60751 Cl. B
Range -10 / +50°C
Style / Connection 2-wire system standard, 3- or 4-wire system optional
Datasheet Download
