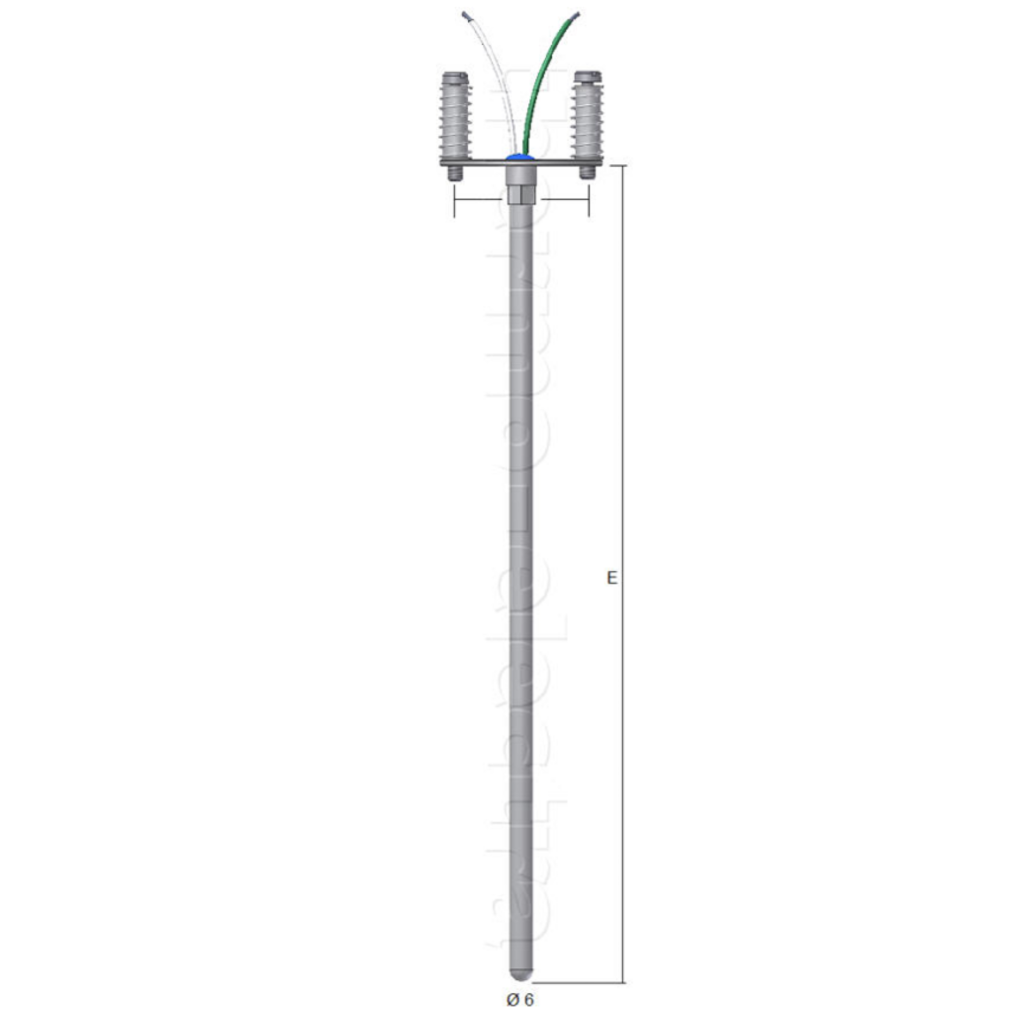

Thermo-Electra MI 1026 Thermocouple insert for temperature transmitter
Click to enlarge

Thermo-Electra MI 1026 Thermocouple insert for temperature transmitter

Thermo-Electra MI 1026 Thermocouple insert for temperature transmitter

Product Code: MI1026

Manufacturer: Thermo-Electra


Thermocouples with connection head are specifically designed for heavy-duty temperature sensing applications like ovens, machines, and industrial environments where their robust construction ensures a prolonged sensor life. Thermo-Electra produces thermocouples according to the highest standards and offers the best quality for every application.

Construction Bendable mineral insulated thermocouple
Material SS 316 – (Wst 1.4401) standard, other materials possible
Insertion length Customer to specify
Diameter 6.0mm standard (3.0mm, 4.5mm, 6.4mm or 8.0mm optional)
Application For mounting a temperature transmitter
Construction Springloaded according DIN 43735
Mounting Pitch 33 mm
Wires 60 mm, insulated flexible wires
Calibration K, T, J, E, N, U or L
For duplex KK, TT, JJ, EE NN, UU or LL
Accuracy According IEC 60584
Insulation material Mineral insulated ( MgO )
Hot junction Insulated
Insulation test Tested with 500 Vdc @ 20 °C
Insulation resistance Minimum 100 M ohm
Hot junction Grounded hot junction
Diameter Other sheath or tip diameter
Material Other sheath material
Transmitter 4-20mA In-Head transmitter, standard or Ex version. Please select from our standard range or specify your own standard
Datasheet Download
