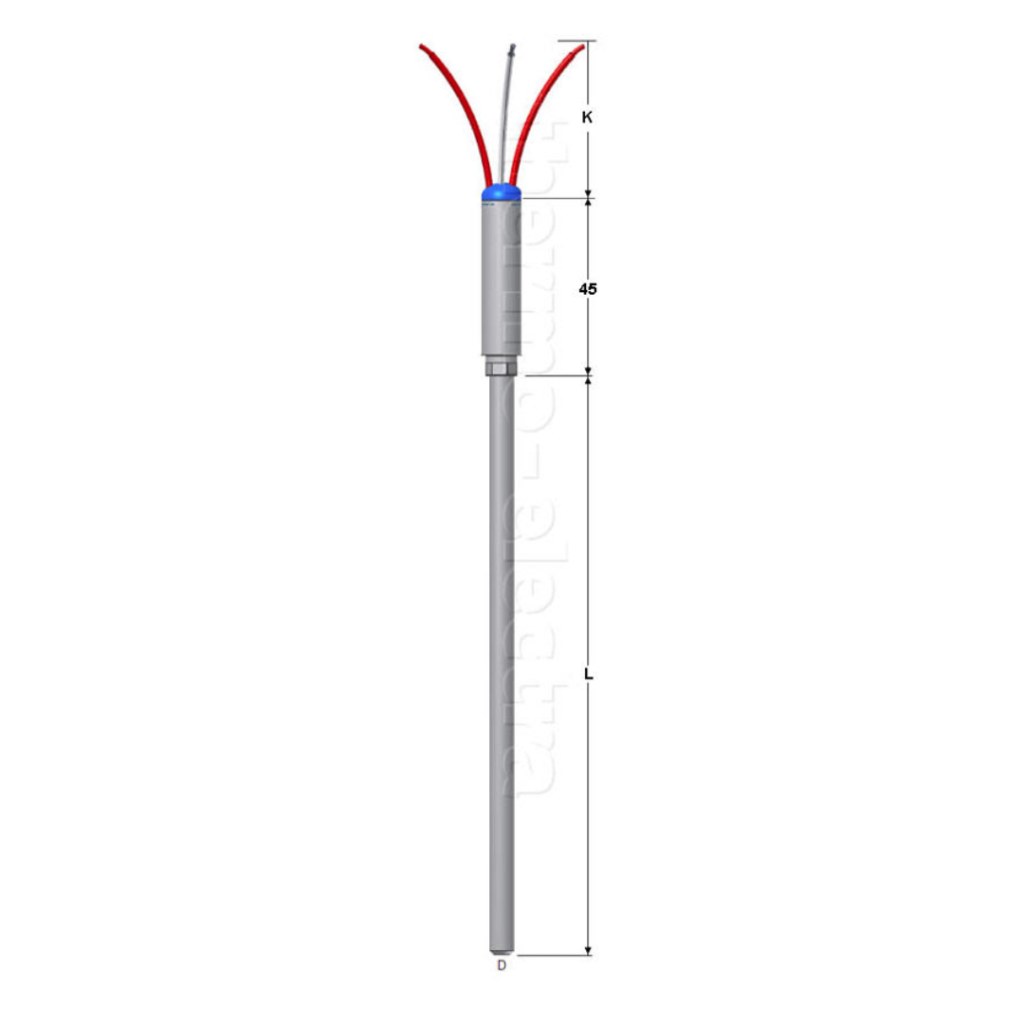

Thermo-Electra ME 2060 General purpose resistance thermometer with flying leads

Product Code: ME2060

Thermo-Electra RTD sensors with cable or plug such as Pt100 sensors are made in all sizes starting from 0.5 mm. Both standard and high vibration resistant versions in single and duplex in 2, 3 and 4 wire system. You can select from a wide range of designs from quick connect type to transition style. We offer glass, ceramic, wire wound and thin film sensors.

Features
Downloads

Construction	Mineral insulated
Material	SS 316 – (Wst 1.4401) standard, other materials possible
Insulation	MgO
Diameter	3 or 6 mm, customer to specify
Length	Customer to specify

Transition	Stainless steel sealpot with epoxy resin seal,moisture resistant
Ingress protection	IP65 / IEC 529
Flying leads	PVC (90°C) insulated flexible copper wire
Length	Customer to specify

Single or Duplex Pt100
Accuracy	According IEC 60751 Cl. B, A or AA
Style / Connection	3-wire system standard, 4-wire system optional
Range	Standard -20 / +400°C, optional -220 / +600°C
Insulation test	Tested with 500 Volt @ 20°C
Insulation resistance	Minimum 100Mohm
