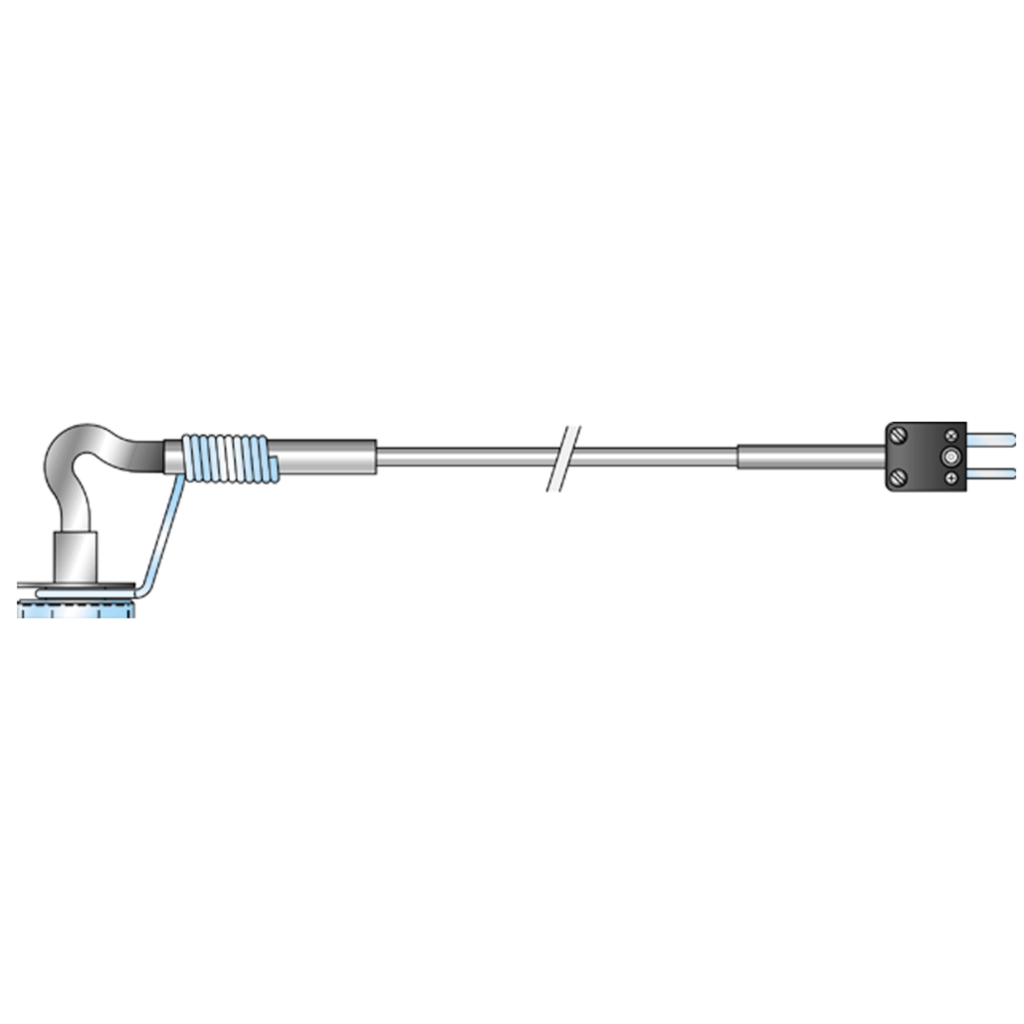

Thermo-Electra 80100 Magnetic surface thermocouple up to 240°C
Click to enlarge

Thermo-Electra 80100 Magnetic surface thermocouple up to 240°C

Thermo-Electra 80100 Magnetic surface thermocouple up to 240°C

Product Code: 80100

Manufacturer: Thermo-Electra


Thermo-Electra’s range of surface temperature thermocouples includes mechanical and magnetic contact probes and self-adhesive patch-type thermocouples for general and high-temperature surface measurement applications up to 800°C.

Housing Nickel plated
Shape Disc shape
Surface contact Magnetic
Magnetic force > 50 Newton
Surface measurements Ferretic materials
Typical applications Bearings, Inductionheaters,
Connection cable PTFE insulated cable
Cable length 1000mm standard, other lenghts possible
Connector Miniature thermocoupleplug, flat pins
Strain relief Retaining spring
Accuracy According IEC 60584-1
Max. tip temperature 240°C / 428°F
High temperature version (HT) Up to 350°C optional
Ingress protection IP54
Dimensions Round 14mm, hight approx. 18mm
Cable Other cable length
Thermocouple Type J or type N
Connector Other connector or without
Calibration Type K , standard
Oven profilers
Datasheet Download
