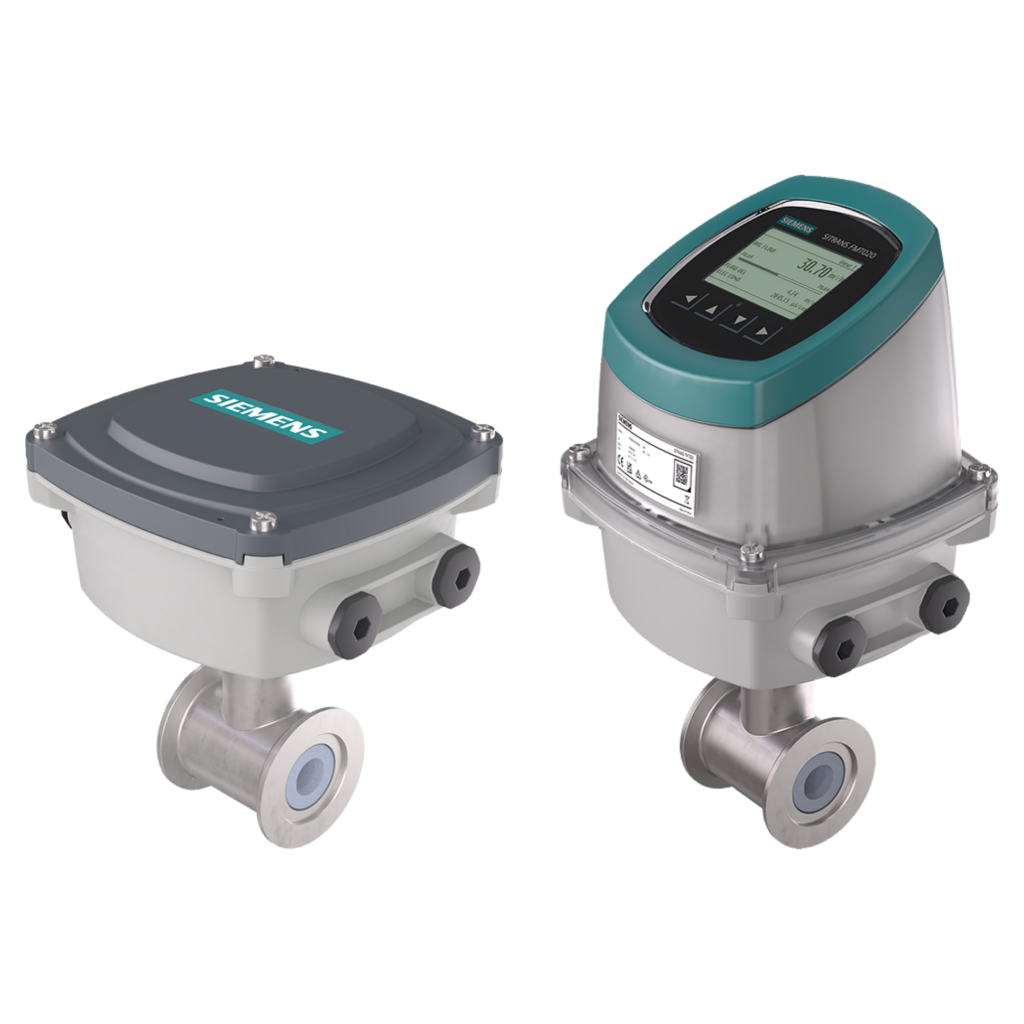

The SITRANS FMS100 is a magnetic flow sensor suitable for volume flow measurement of liquids (conductive) with a large variety of product options to meet the demands of almost any flow application. The sensor model provides a high level of flexibility and has a comprehensive set of product features. The FMS100 is deliverable in small sizes for precise dosing, with a high variety of flanges included grounding electrodes as standard and F&B approvals. Combined with a flow meter transmitter it is a traditional externally powered electromagnetic flow meter system.
The SITRANS FMS100 is designed to meet the most common specifications within the chemical and process as well as F&B industries. The field proven flow sensor with high temperature resistance is also the ideal solution for the toughest and challenging applications. The main applications of the SITRANS FMS100 flow sensor can be found in the following fields:
- Process industry
- Chemical industry
- Water treatment
- Food industry
- Beverage industry
- Pharmaceutical industry
For a complete magnetic flowmeter, the FMS100 flow sensor can be combined with a FMT020 transmitter. The entire flowmeter system either mounted remotely or as a compact unit is operated under the product name SITRANS FM120. SITRANS FM120: This versatile magnetic flowmeter finds its primary applications in the food and beverage industry as well as in the process, chemical and pharmaceutical industry.
Available sensor sizes from DN 2 to DN 100 (1/12 … 4”).
Measuring accuracy ±0.4% of flow rate, optional ±0.2% of flow rate available.
- Sensor sizes: DN 2 to DN 100 (1/12″ to 4″)
- Compact wafer-type design matching for mating flange according to EN 1092-1 and ANSI B16.5 standard
- Unique mechanical design with a wide range of sanitary process connections for the F&B version
- Sanitary design for CIP/SIP cleaning for the F&B version
- Corrosion resistant AISI 316 stainless steel sensor housing
- Highly resistant liner and electrodes fitting most extreme process media
- High temperature version is available for applications with temperatures up to 200 °C (392 °F)
- Hose proof IP67/NEMA 6 enclosure rating
- Option for IP68/NEMA 6P protection class ex works or for upgrading on site
- No moving parts for maintenance-free operation over many years
- Smooth surface with minimal risk of build-up
- SENSORPROM™ Technology provides an automatic upload of start up settings and calibration data for easy commissioning
- Designed to allow in-situ verification for easy performance check
- Approved for hazardous areas for maximum safety and reliability
- Meets EMC requirements acc. to NAMUR recommendation
- Meets EEC directives: PED, 2014/68/EU pressure directive for EN 1092-1 flanges
