The explosion-proof ProtEX-MS2 and ProtEX-MFI Super Snoopers are serial input RS-485 Modbus RTU scanners. These Modbus devices are ideal for hazardous areas or safe areas in need of a rugged solution. The ProtEX-MS2 has a two-line decimal display. The ProtEX-MFI top line displays level in feet and inches up to 399 ft, 11 and 15/16 inches. It includes a 20-segment tank level indicator.
The ProtEX Super Snooper can be programmed as a Modbus RTU Master, Slave, or Snooper. As a Master, the scanner reads up to 16 slave devices, scales the data from each, and indicates each on an alternating display. The scanner in Master Mode is capable of polling up to 16 process variables (PVs). It shows each PV (PV1-PV16) alternately on the top and/or bottom display. In Snooper Mode, the scanner is able to read up to 16 variables being polled by the master by listening to the bus traffic.
The PD6830X scanners can communicate with any Modbus device using the ever-popular Modbus communications protocol. Take advantage of the Modbus capabilities in the level and flow transmitters you already have by using Master Mode to read more data, more accurately.
Features
Modbus® Master, Slave, or Snooper Mode
Scan up to 16 Modbus Process Variables
5-Digit Decimal or Feet & Inches Level Display
On-Board Three-Wire RS-485 with Modbus
Independent Scaling, Tag, and Unit for Each PV
7 Alphanumeric Character 0.4″ (10.2 mm) Lower Display
for Process Variables, Custom Units, and Tags
Explosion-Proof, IP68, NEMA 4X Enclosure
SafeTouch® Through-Glass Button Programming
Isolated 4-20 mA Output Option
Pulse Input for Rate, Total, and Grand Total
13-Digit Totalizer with Total Overflow Feature
Password Protection
Backlight Standard on All Models
Automatic Rate, Total, and Grand Total Unit Conversions

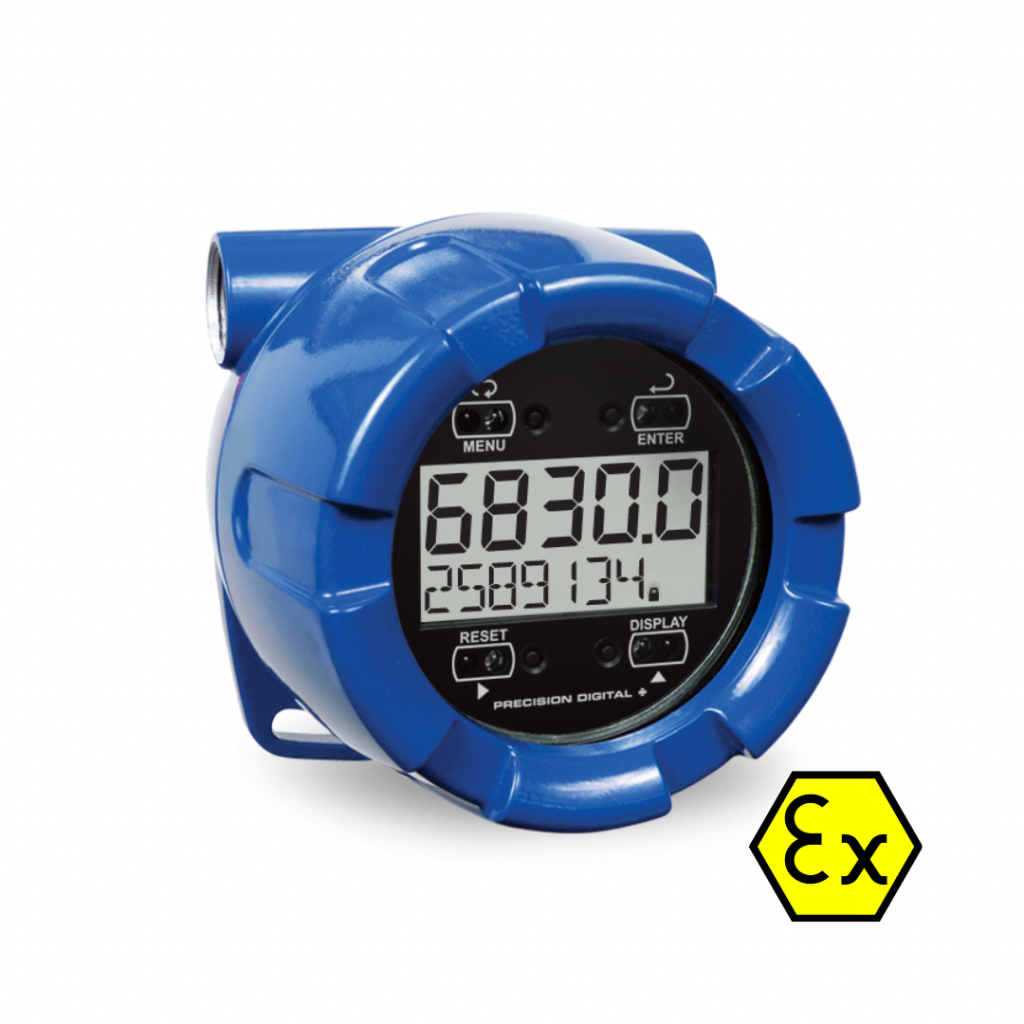

Precision Digital PD6830X ProtEX Ex Proof Modbus Scanner
The explosion-proof ProtEX-MS2 and ProtEX-MFI Super Snoopers are serial input RS-485 Modbus RTU scanners. These Modbus devices are ideal for hazardous areas or safe areas in need of a rugged solution. The ProtEX-MS2 has a two-line decimal display. The ProtEX-MFI top line displays level in feet and inches up to 399 ft, 11 and 15/16 inches. It includes a 20-segment tank level indicator.
The ProtEX Super Snooper can be programmed as a Modbus RTU Master, Slave, or Snooper. As a Master, the scanner reads up to 16 slave devices, scales the data from each, and indicates each on an alternating display. The scanner in Master Mode is capable of polling up to 16 process variables (PVs). It shows each PV (PV1-PV16) alternately on the top and/or bottom display. In Snooper Mode, the scanner is able to read up to 16 variables being polled by the master by listening to the bus traffic.
The PD6830X scanners can communicate with any Modbus device using the ever-popular Modbus communications protocol. Take advantage of the Modbus capabilities in the level and flow transmitters you already have by using Master Mode to read more data, more accurately.
Features
Modbus® Master, Slave, or Snooper Mode
Scan up to 16 Modbus Process Variables
5-Digit Decimal or Feet & Inches Level Display
On-Board Three-Wire RS-485 with Modbus
Independent Scaling, Tag, and Unit for Each PV
7 Alphanumeric Character 0.4″ (10.2 mm) Lower Display
for Process Variables, Custom Units, and Tags
Explosion-Proof, IP68, NEMA 4X Enclosure
SafeTouch® Through-Glass Button Programming
Isolated 4-20 mA Output Option
Pulse Input for Rate, Total, and Grand Total
13-Digit Totalizer with Total Overflow Feature
Password Protection
Backlight Standard on All Models
Automatic Rate, Total, and Grand Total Unit Conversions
Operates from -40 to 75°C
Data Logging Functions and Modbus Accessible Data
Two Isolated Pulse Outputs Standard, Up to 5 kHz
