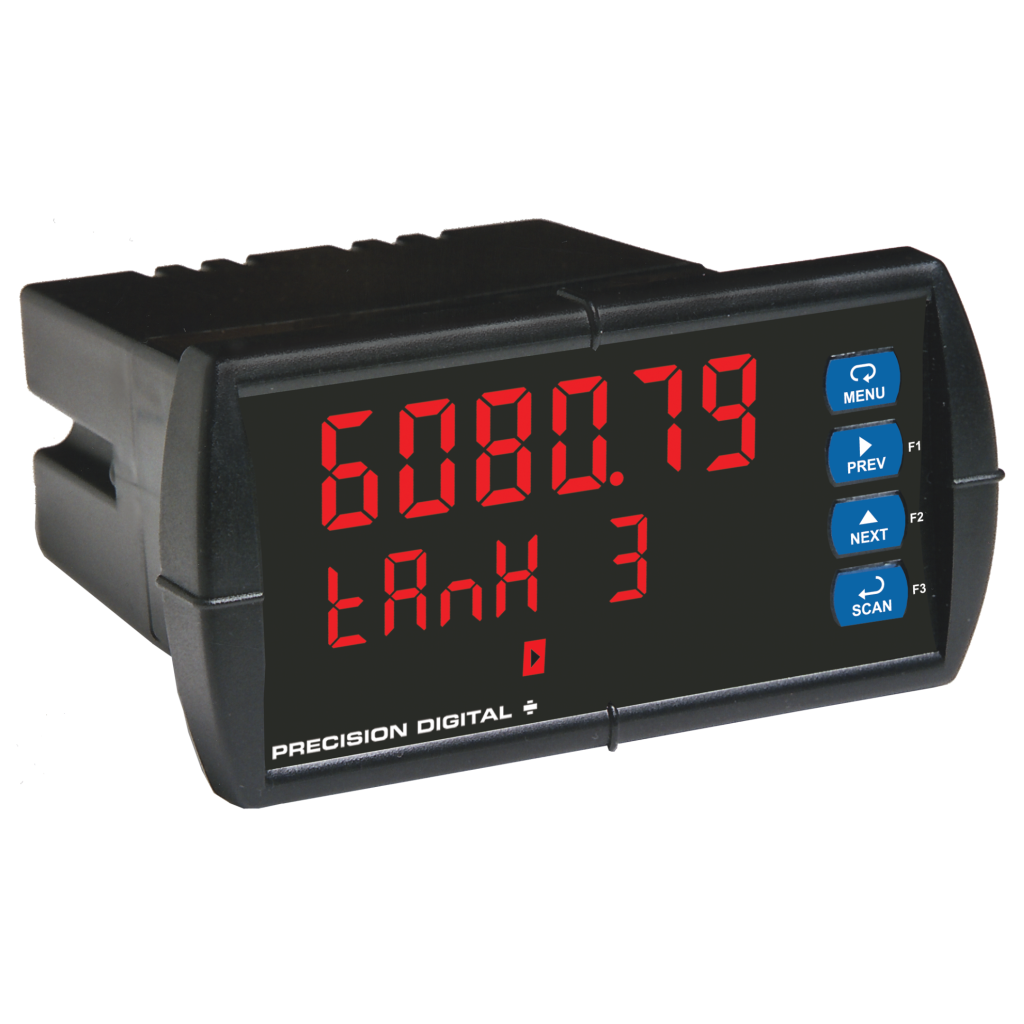

Precision Digital PD6088/PD6089 ProVu Modbus Scanners

Precision Digital PD6088/PD6089 ProVu Modbus Scanners

Features

• Modbus® RS-485 RTU Serial Communications as Master, Slave, or Snooper
• RS-485 Serial Communications Standard
• Decimal or Feet & Inches (with Eighths & Sixteenths) Display Options
• Scan up to 16 Modbus Process Variable
• Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
• Large Dual-Line 6-Digit Display, 0.60″ & 0.46″
• Sunlight Readable Display Standard
• NEMA 4X, IP65 Front
• Universal 85-265 VAC, or 12/24 VDC Input Power Models
• Programmable Display & Function Keys
• 32-Point, Square Root, or Exponential Linearization
• Multi-Pump Alternation Control
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• Configure, Monitor, and Datalog from a PC with Free ScanView Software

By using the Modbus signal from your existing multivariable transmitters, you will open up a whole new dimension of display possibilities. Paired with a new Precision Digital Modbus Scanner, you can display multiple variables including level, interface level, density, temperature, and more.

The PD6088/89 Super Snooper Modbus Scanners are multipurpose, easy-to-use scanners that can be programmed as Modbus RTU Masters, Slaves, or Snoopers. They are capable of scanning up to 16 process variables (PVs), which make them ideal for multiple tank level monitoring and control. Plus, they combine these capabilities with powerful math functions that may be applied to the PVs including addition, difference, average, multiplication, division, ratio, and more.

The ProVu can be programmed as a Modbus RTU Master, Slave, or Snooper. Its Modbus communications capabilities and math functions make it unique, while still maintaining the great features and quality of the ProVu family.
