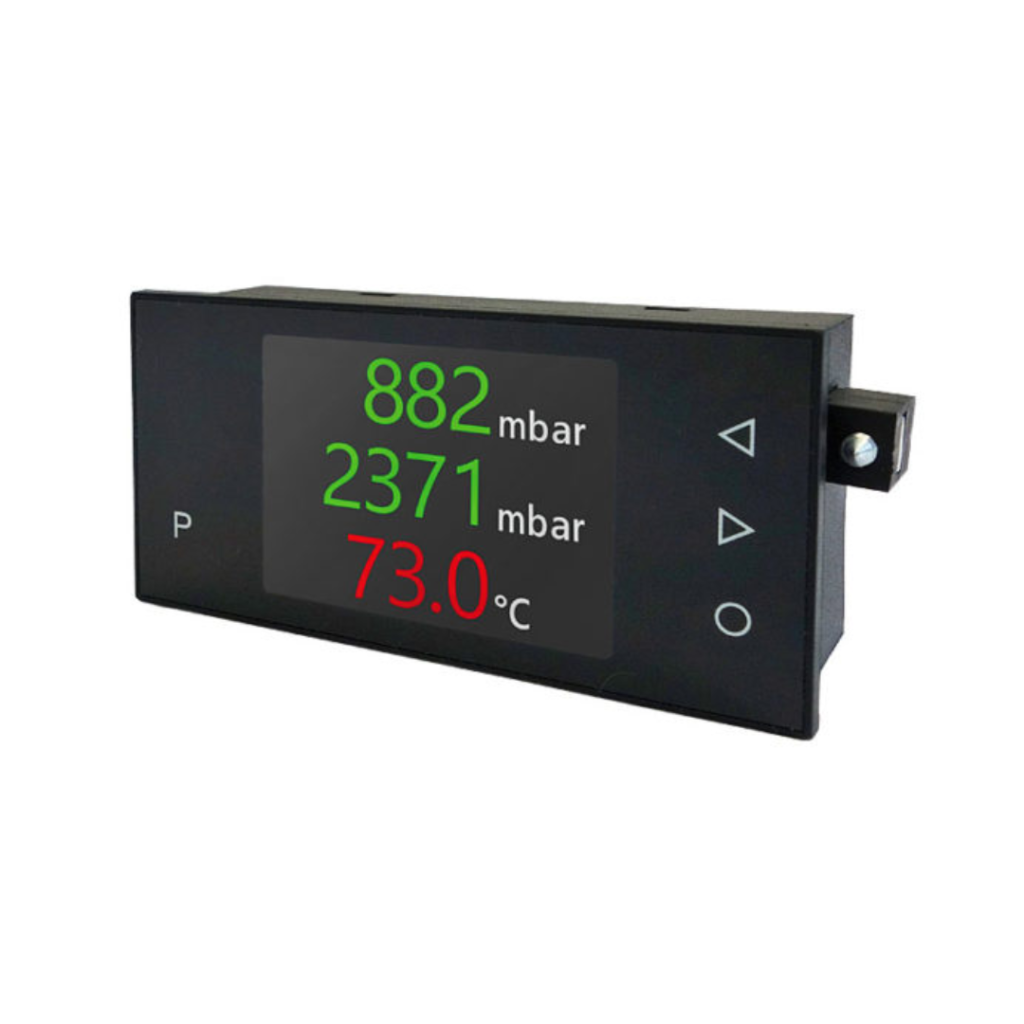

Müller Digital Indicator, Triple, DC Current/Voltage Standard Signal (TFT1-13)
Product Code: TFT1-13
Manufacturer: Müller
This Müller Digital Indicator, Triple, DC Current/Voltage Standard Signal (TFT1-13) compact and versatile display unit supports standard signals including 3x 0/4–20 mA and 0–10 VDC (non-isolated), with triple metered value presentation ranging from -1999 to 9999 digits. It features a 2.4″ high-resolution (320×240 px) display with approx. 9 mm digit height and customizable colors for both measurand and background (red, green, white, black, orange). With a minimal installation depth of just 25 mm (or 42 mm with transformer), it offers functions such as min/max value recording, 9 adjustable support points, Tara function, flashing alerts at threshold breaches, and physical unit labelling. Additional features include an IP65-rated front panel, programming lock via access code, and pluggable screw terminals. Optional dual relay outputs and a PC-based configuration kit (PM-TOOL) are also available.
- Standard signals: 3x 0/4-20 mA, 0-10 VDC (galv. not isolated among each other)
- presentation of metered value of 3x -1999…9999 digits
- digit height approx. 9 mm
- selectable colour for measurand and background: red, green, white, black, orange
- minimal installation depth: 25 mm without plug-in terminal, with transformer 42 mm
- display panel 2,4″, 320×240 Pixel
- adjustable signs for physical dimensions
- min/max value recording
- 9 adjustable supporting points
- display flashing at threshold value exceedance/undercut
- Tara function
- programming interlock via access code
- protection class IP65 at the front
- pluggable screw terminal
- option: 2 relay outputs
- accessories: PC-based configuration kit PM-TOOL with CD & USB adaptermedia center
