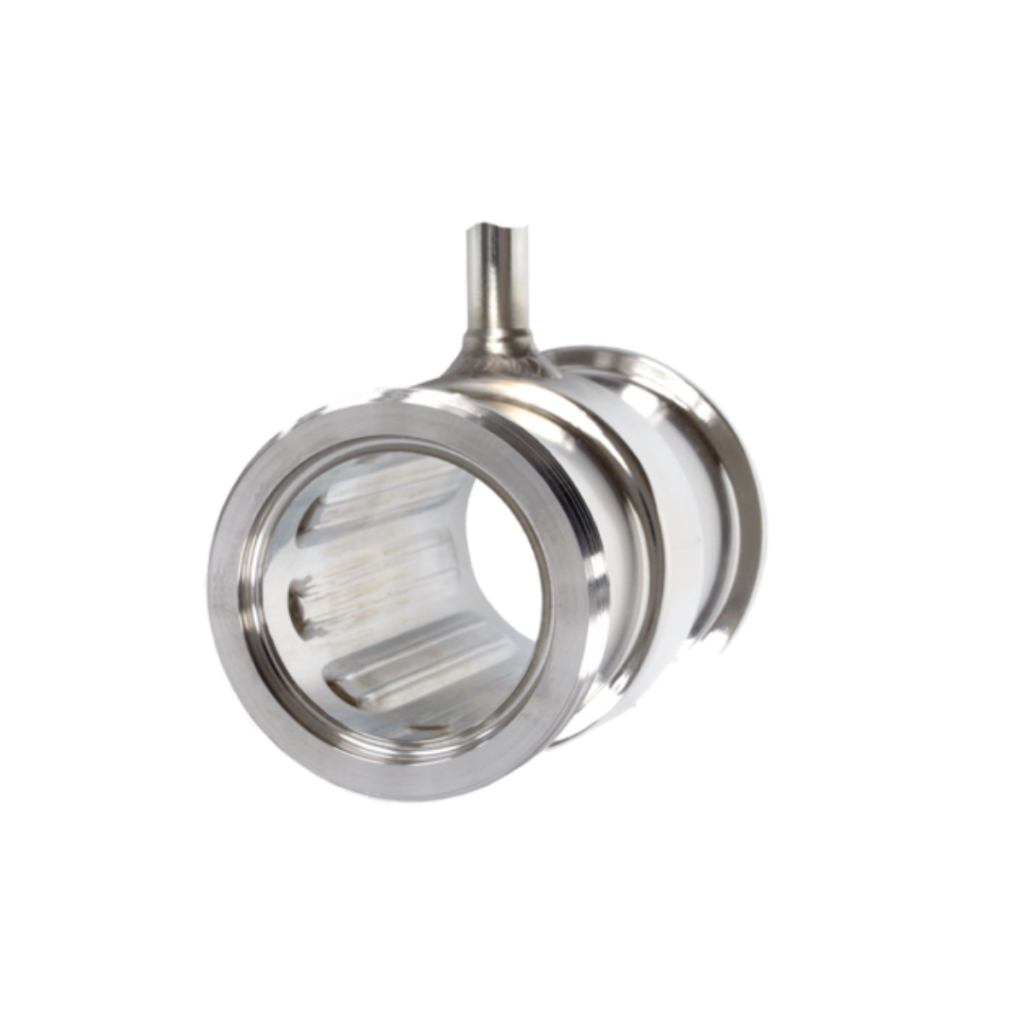

Labom Inline Diaphragm Seal DF6110

Product Code: Labom Inline Diaphragm Seal DF6110

Manufacturer: Labom

The Labom DF6110 Inline Diaphragm Seal is suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The inline diaphragm seal for aseptic design is used mainly for dead-zone free pressure measurement.

Options

Material certificate acc. to DIN EN 10204-3.1
Electropolishing (wetted parts)
Hygienic design with advanced surface quality
Special materials upon request

Features
Downloads

Circular diaphragm of stainless steel, slightly grooved, laser welded
Volume optimised diaphragm base
DIN 11864-1 und -3 with EHEDG certificate, aseptic connection
System fillings for different applications
Measuring device connection: directly welded, directly screwed, with temperature decoupler, with capillary

Datasheet

Labom Inline Diaphragm Seal DF6110
