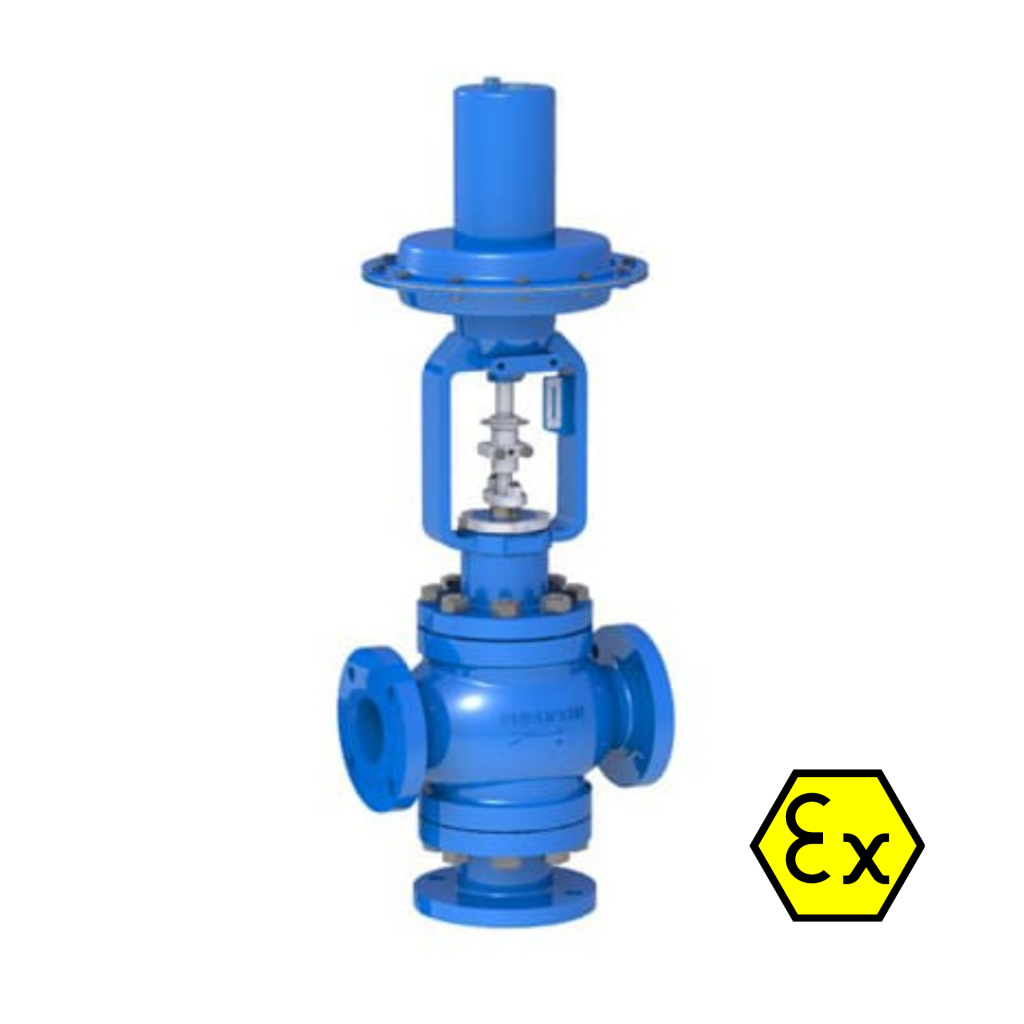

Valve Solutions Three Way Globe control valves are used to combine two flows or to divert one flow into two outlets.
They are designed to replace and perform the functions of two single ported control valves acting in opposite directions, in con- verging or diverging the flow.
They can be used to control the circulation of water, oil, sea water or other liquids, in heating or cooling applications involving heat exchange bypass control.
They can also be used in blending systems and on-off selector systems.
| Valve Size | 15 to 300 mm (1/2” to 12”) |
| Rating | ANSI 150 to 600 or equivalents to DIN, BS10, JIS etc… |
| End Connection | Flanged, Butt Weld |
| Body Material | Carbon Steel, Chrome-moly Steel, Stainless Steel, Monel, Alloy 20, Hastelloy B/C, Duplex Stainless Steel, Aluminium bronze |
| Bonnet | Standard up to 400°C, Normalising between 250°C to 500°C, Extended cold service -20°C to -100°C, Cryogenic -100 ºC to -250 ºC Bellowseal |
| Gland Packing | PTFE Chevrons, Graphite, Low Emission |
| Trim Form | Skirt Guided, Linear, Pressure Balanced |
| Trim Material | Stainless steel, Duplex stainless steel, 13% Chrome Steel, Monel Hastelloy B/C, Stellite |
| Flow Characteristic | Linear |
| Seat Leakage | As per ANSI / FCI 70-2-2006 Class III, IV, V and VI |
| Actuator Form | Diaphragm, Piston, Electric |
| Actuator Type | Direct / Reverse Acting, Direct Acting air failure “Close” top port, Reverse Acting air failure “Opens” top port. |
| Diaphragm | Nitrile / Neoprene (nylon reinforced) |
| Spring Range | 3-15 PSIG (0.2 – 1.0 Bar) 6-30 PSIG (0.4 – 2.0 Bar) |
| Air Supply | 20-60 PSIG (1.4 – 4.0 Bar) |
| Air Connection | 1/4” or 1/2” NPT |
| Accessories | Valve Positioners (Pneumatic, Electro-Pneumatic, Smart), Instruments (Airset, Solenoid Valve, Volume Booster, Airlock, Limit Switches) |
| Features | Top Mounted Hand Wheel, Side Mounted Hand Wheel, Limit Stops Removable Blind Head, Steam Jacketing |
