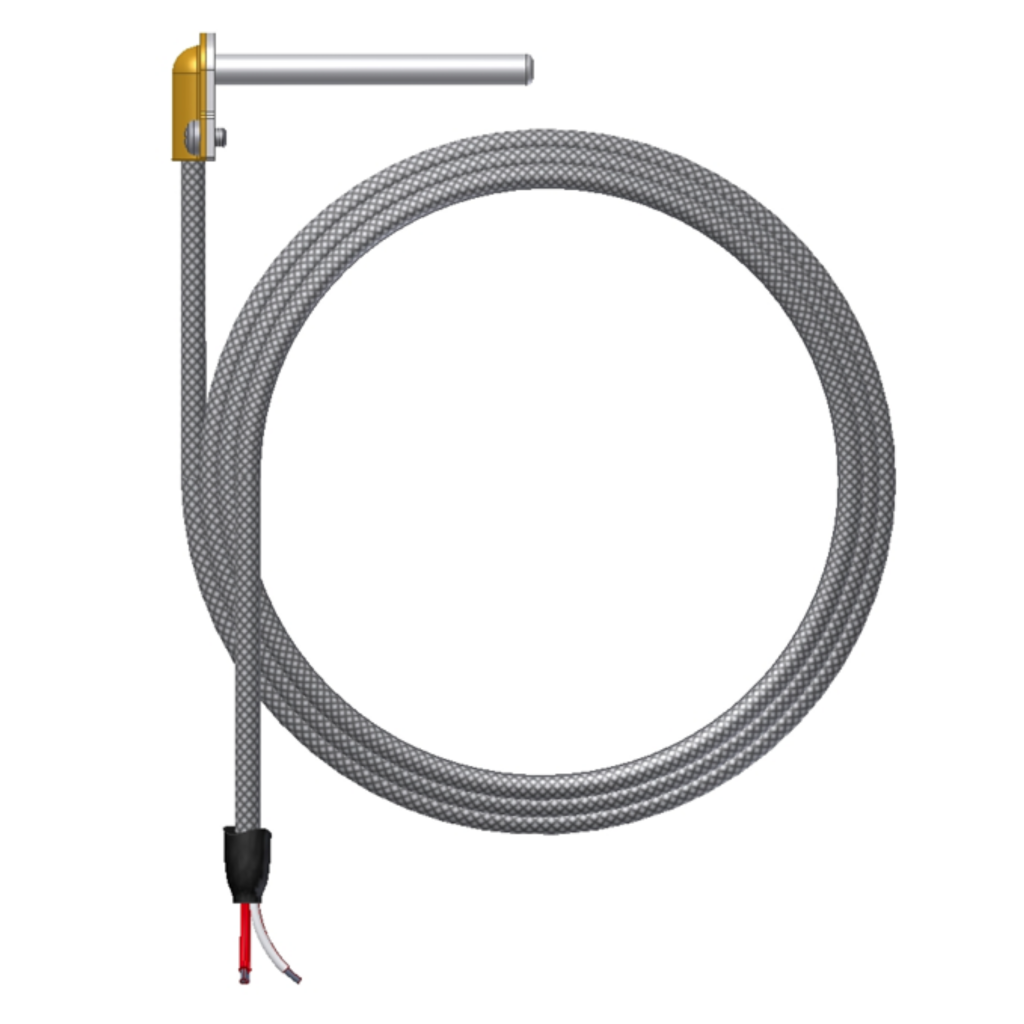

Thermo-Electra TF 5845 Right angle thermocouple
Click to enlarge

Thermo-Electra TF 5845 Right angle thermocouple

Thermo-Electra TF 5845 Right angle thermocouple

Product Code: TF5845

Manufacturer: Thermo-Electra


Thermo-Electra Plastic industry thermocouples are designed for injection moulding, plastics industry machinery, and general-purpose applications. For easy mounting and replacement our temperature sensors have a bayonet cap with one or two slots. We offer a wide range of Bayonet threaded and extruder nozzle thermocouple sensors in different models and dimensions.

Construction Closed-end tube
Diameter 6.0mm standard, other diameters possible
Length 100mm standard, other lengths possible
Material SS 316 – ( Wst 1.4401 ) standard, other materials possible
Type Compression fitting
Style / Connection 1/4
Glassfiber insulated thermocouple cable with steel wire braiding
Length 3000mm standard, other lengths possible
Calibration K, J or L
For duplex KK, JJ or LL
Accuracy According IEC 60584 / DIN 43710
Hot junction Insulated
Datasheet Download
