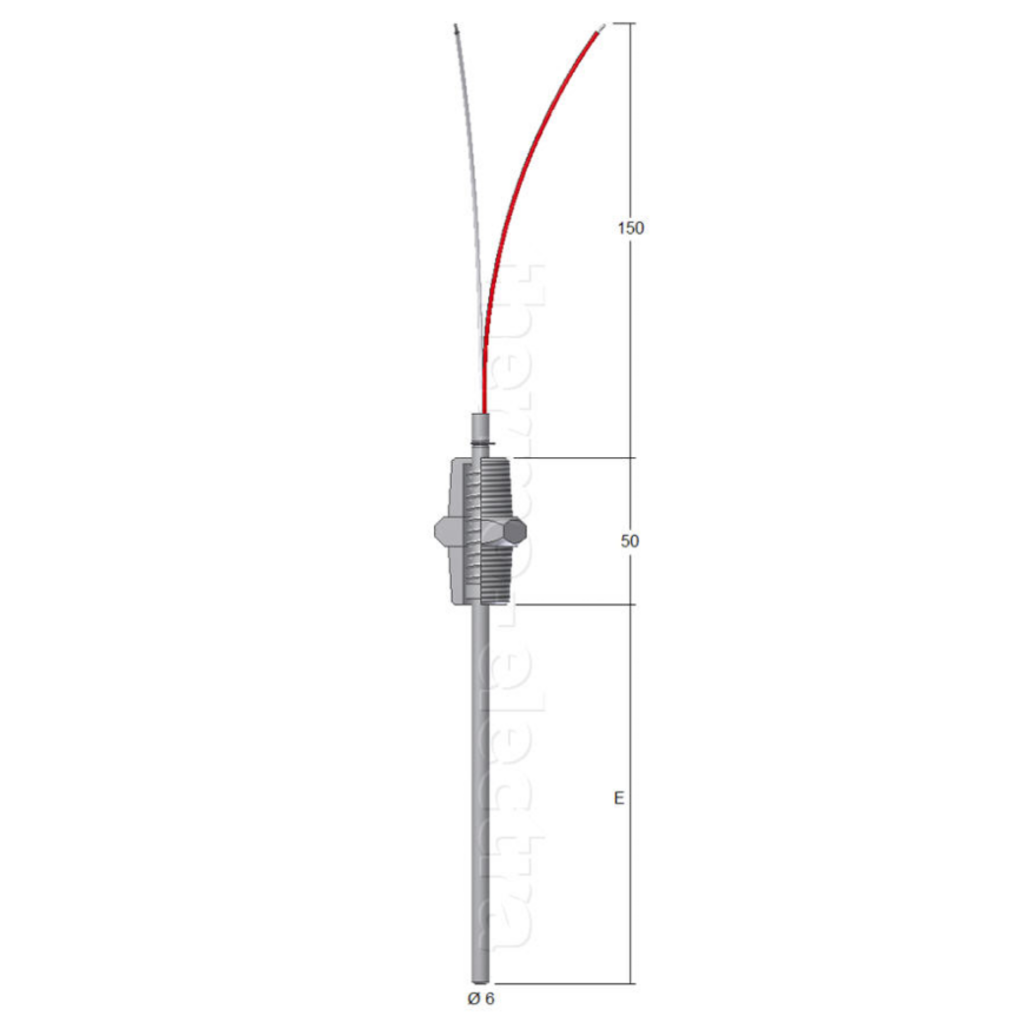

Thermo-Electra MI 1039 Springloaded replacement thermocouple sensor

Product Code: MI 1039

Thermocouples with connection head are specifically designed for heavy-duty temperature sensing applications like ovens, machines, and industrial environments where their robust construction ensures a prolonged sensor life. Thermo-Electra produces thermocouples according to the highest standards and offers the best quality for every application.

Features
Downloads

Construction	Bendable mineral insulated
Material	SS 316 – (Wst 1.4401) standard, other materials possible
Insertion length	Customer to specify
Process connection	M20x1.5, 1/2″BSP (G1/2″), 1/2″NPT or other threads possible

Mechanical	To fit M20x1.5, 1/2″BSP (G1/2″), 1/2″NPT or other threads
Electrical	Insulated PTFE wires 180 °C
Wire length	150 mm
Construction	Spring loaded insertion, length > 25mm

Calibration	K, T, J, E, N, U or L
For duplex	KK, TT, JJ, EE, NN, UU or LL
Accuracy	According IEC 60584
Hot junction	Insulated
Insulation material	Mineral insulated ( MgO )
Insulation test	Tested with 500 Vdc @ 20°C
Insulation resistance	Minimum 100 M ohm
