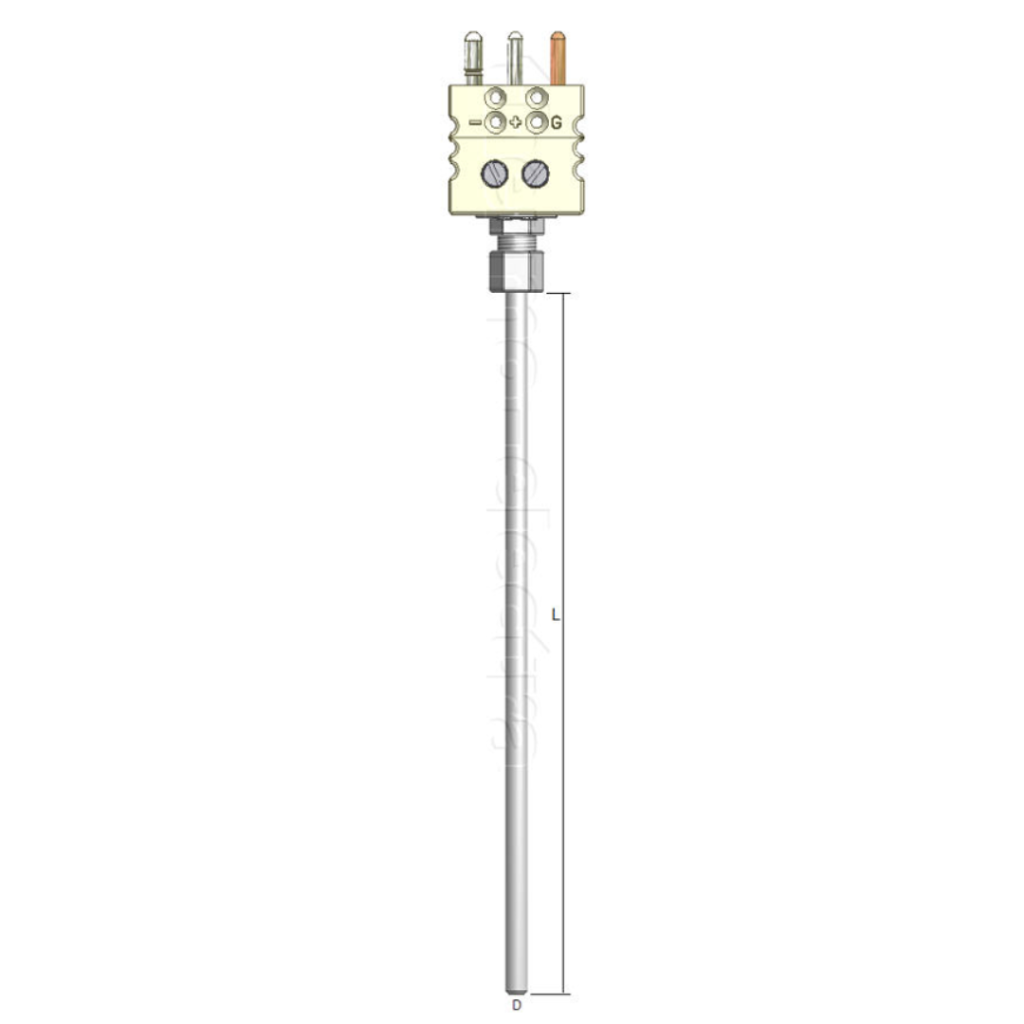

Thermo-Electra ME 2053 Resistance thermometer with 3-pole standard plug
Click to enlarge

Thermo-Electra ME 2053 Resistance thermometer with 3-pole standard plug

Thermo-Electra ME 2053 Resistance thermometer with 3-pole standard plug

Product Code: ME2053

Manufacturer: Thermo-Electra


Thermo-Electra RTD sensors with cable or plug such as Pt100 sensors are made in all sizes starting from 0.5 mm. Both standard and high vibration resistant versions in single and duplex in 2, 3 and 4 wire system. You can select from a wide range of designs from quick connect type to transition style. We offer glass, ceramic, wire wound and thin film sensors.

Construction Mineral insulated
Material SS 316 – (Wst 1.4401)
Insulation MgO
Diameter 3 or 6 mm, customer to specify
Length Customer to specify
Standard 3 pole plug with round pins type TE1061
Single or Duplex Pt100
Accuracy According IEC 60751 Cl. B, A or AA
Style / Connection 2-, 3- or 4-wire system
Range -20 / +400°C standard, -220 / +600°C optional
Testing Tested 500 Volt @ 20°C
Insulation resistance Minimum 100Mohm
Datasheet Download
