Thermo-Electra ME 1074 Tube skin thermocouple with PTFE cable

Product Code: ME1074

The range of surface temperature thermocouples includes mechanical and magnetic contact probes and self-adhesive patch-type thermocouples for general and high-temperature surface measurement applications up to 800°C.

Features
Downloads

Construction	Mineral insulated ( MgO )
Material	SS 316 – (Wst 1.4401)
Insulation	Mineral insulated ( MgO )

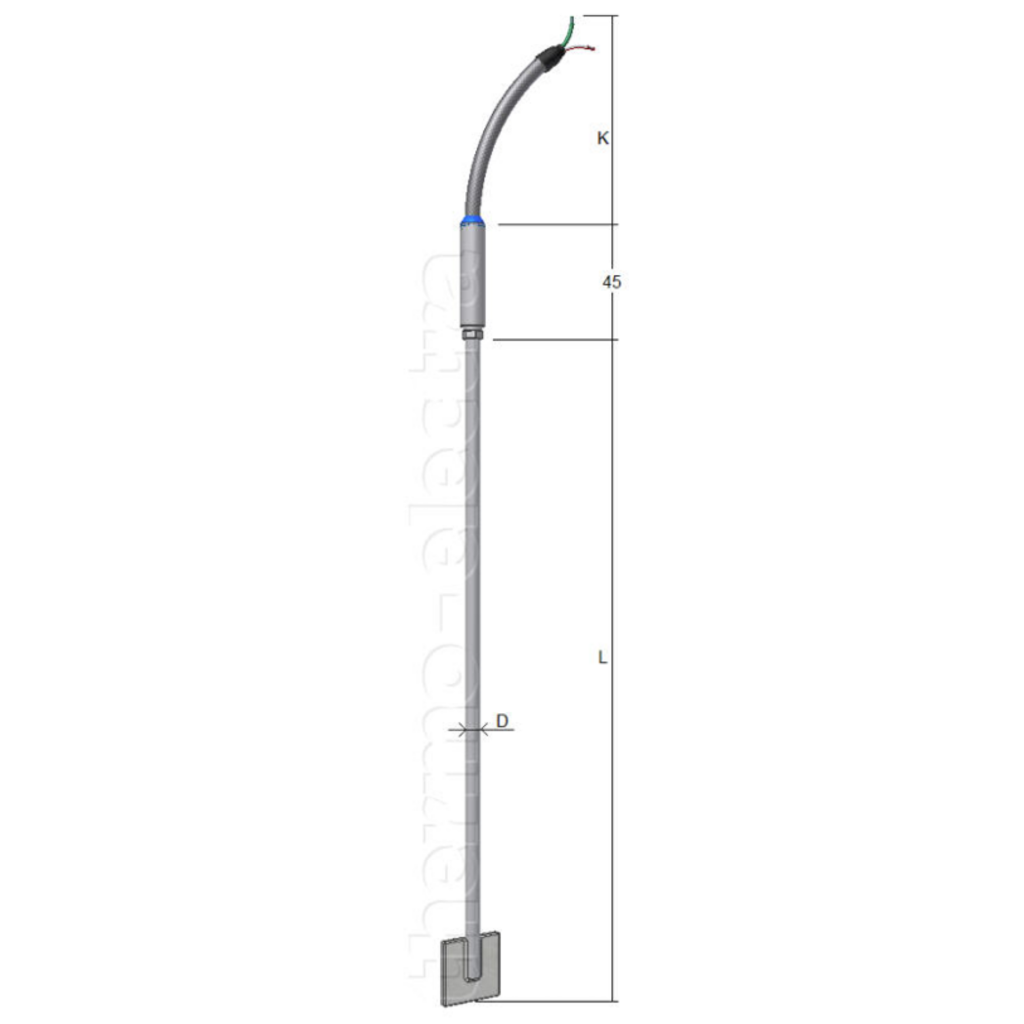

Diameter “D”	6.0 mm standard
Length “L”	Customer to specify

Transition	Stainless steel sealpot with epoxy resin seal, moisture resistant
Ingress protection	IP65 / IEC529
Cable	FEP insulated flexible thermocouple wire,with FEP outer jacket 240 °C
Lead wire length “K”	Customer to specify

Material	Same as sheath
Dimensions	25 x 25 x 3 mm

Calibration	K, T, J, E, N, U or L
For duplex	KK, TT, JJ, EE, NN, UU or LL
Accuracy	According IEC 584-1 / DIN 43710
Hot junction	Insulated
Insulation material	Mineral insulated ( MgO )
Insulation test	Tested with 500 Vdc @ 20 °C
Insulation resistance	Minimum 100 Mohm

Hot junction	Grounded hot junction
Material	Other sheath/pad material such as Inconel or Hasteloy
