Thermo-Electra ME 1073 Tube skin thermocouple with armoured PTFE cable

Product Code: ME1073

Thermo-Electra’s range of surface temperature thermocouples includes mechanical and magnetic contact probes and self-adhesive patch-type thermocouples for general and high-temperature surface measurement applications up to 800°C.

Features
Downloads

Construction	Weld on pad
Material	SS 316 – (Wst 1.4401)
Insulation	Mineral insulated ( MgO )

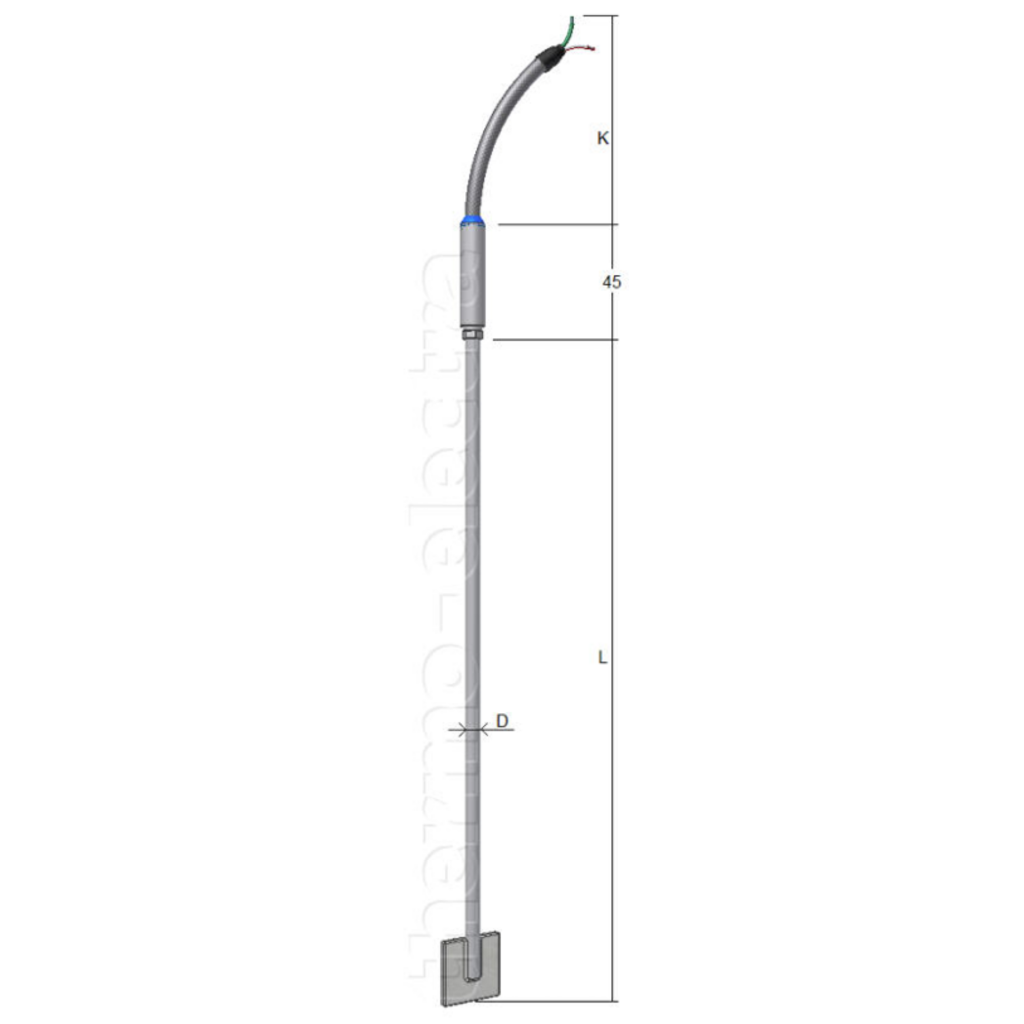

Diameter “D”	6.0 mm standard
Length “L”	Customer to specify

Transition	Stainless steel sealpot with epoxy resin seal,moisture resistant
Ingress protection	IP65 / IEC529
Wire	FEP insulated flexible thermocouple wire with glassfiber braiding and stainless steel overall braid. Maximum 220°C
Lead wire length “K”	Customer to specify

Material	Same as sheath
Dimensions	25 x 25 x 3 mm

Calibration	K, T, J, E, N, U or L
For duplex	KK, TT, JJ, EE, NN, UU or LL
Accuracy	According IEC 584-1 / DIN 43710
Hot junction	Insulated
Insulation	Mineral insulated ( MgO )
Insulation test	Tested with 500 Vdc @ 20 °C
Insulation resistance	Minimum 100 M ohm

Hot junction	Grounded hot junction
Material	Other sheath/pad material such as Inconel or Hasteloy
