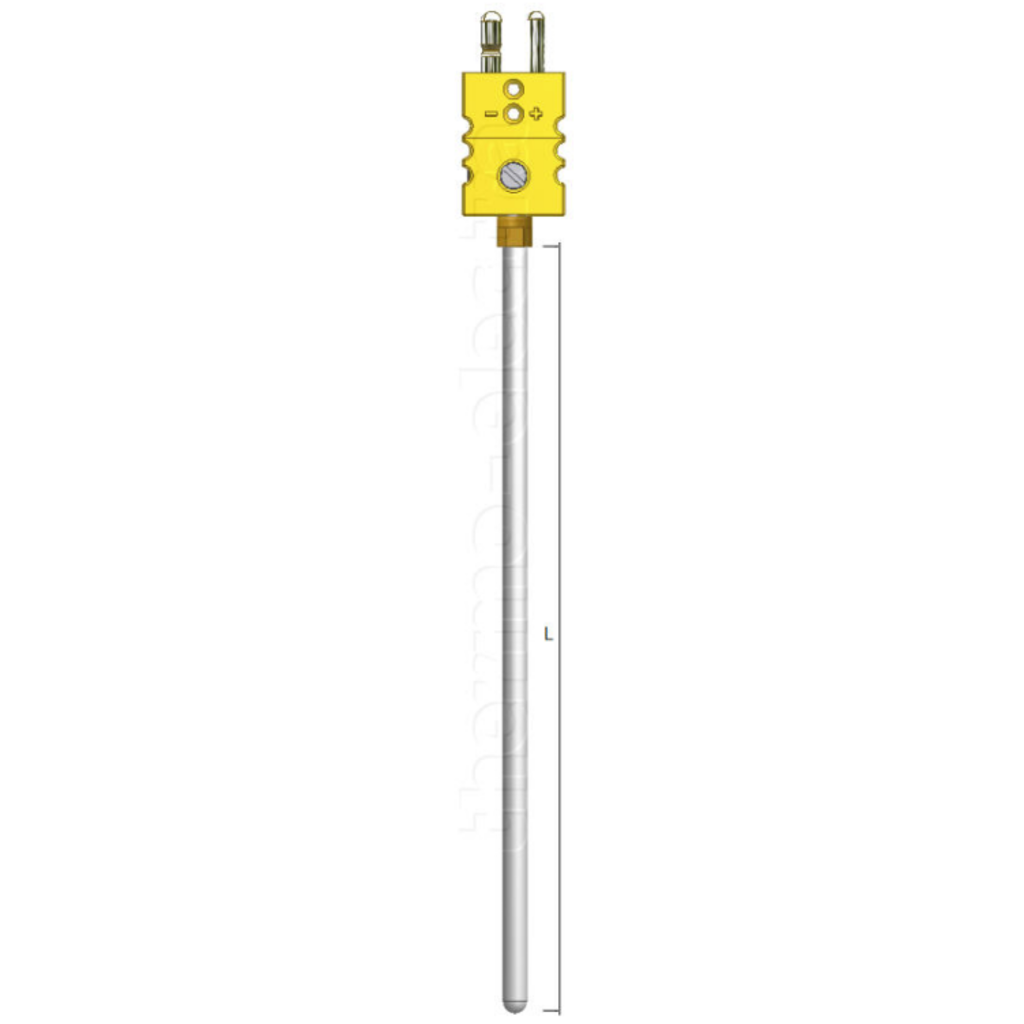

Thermo-Electra ME 1051 Mineral insulated thermocouple with standard plug

Thermo-Electra ME 1051 Mineral insulated thermocouple with standard plug

Product Code: ME1051

Manufacturer: Thermo-Electra


Thermo-Electra Mineral insulated Thermocouples are metal sheathed and have magnesium oxide (MgO) insulation offering a sealed rugged enclosure capable of withstanding very high temperatures, pressure, and excessive vibration. MI sensors are flexible and are available as of 0,25 mm Thermocouple types K, T, J, E, R, S, and N are available in accordance with ANSI or IEC with thermocouple plug, jack, or a sealed connection cable.

Construction Mineral insulated
Material SS 316 – (Wst 1.4401) Also available in SS310, Inconel 600, Hasteloy X and Nicrosil D
Insulation MgO
Diameter Customer to specify
Length Customer to specify
Type Standard 2 pole plug, with rounds pins, model TE 1065
Mounting Direct on sheath
Calibration K, T, J, E, N, U or L
For duplex KK, TT, JJ, EE, NN, UU or LL
Accuracy According IEC 60584
Hot junction Insulated
Testing Tested 500 Volt @ 20 °C
Insulation resistance Minimum 100 M ohm
Available diameter (0.25 – 0.5 – 1.0)* 1.5 – 2.0 – 3.0 – 4.5
6.0 and 8.0 mm
Other diameters possible
* single only
Datasheet Download
