Thermo-Electra KE 2083 General purpose resistance thermometer with silicone cable
Click to enlarge

Thermo-Electra KE 2083 General purpose resistance thermometer with silicone cable

Thermo-Electra KE 2083 General purpose resistance thermometer with silicone cable

Product Code: KE2083

Manufacturer: Thermo-Electra


Thermo-Electra RTD sensors with cable or plug such as Pt100 sensors are made in all sizes starting from 0.5 mm. Both standard and high vibration resistant versions in single and duplex in 2, 3 and 4 wire system. You can select from a wide range of designs from quick connect type to transition style. We offer glass, ceramic, wire wound and thin film sensors.

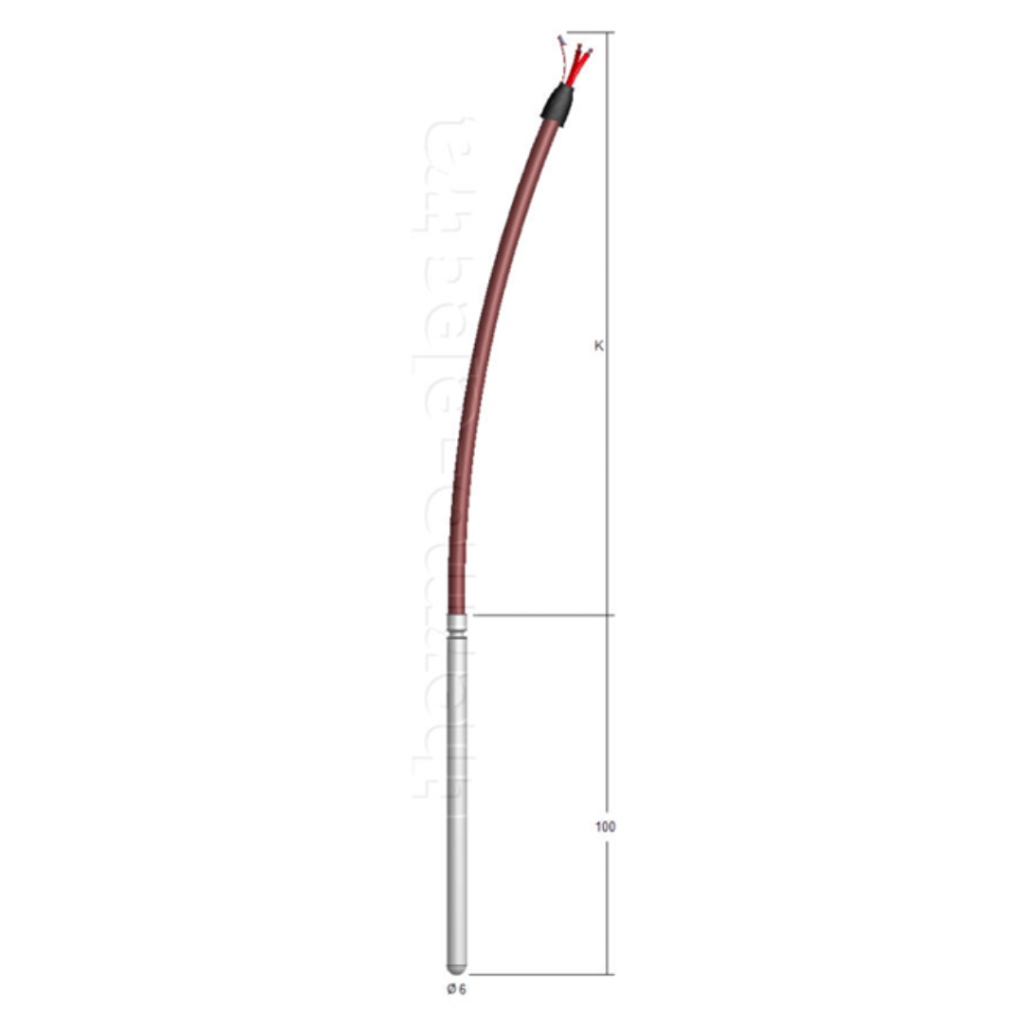

Construction Closed-end tube
Material SS 316 – (Wst 1.4401) standard, other materials possible
Diameter 6.0mm standard, other diameters possible
Length 100 mm standard, other lengths possible
Silicon insulatedflexible cable, 230°C
Lead wire length Customer to specify
Single or Duplex Pt100
Accuracy According IEC 60751 Cl. B, A or AA
Style / Connection 3-wire system standard, 4-wire system optional
Range Standard -20 / +400°C, optional -220 / +600°C
Testing Tested at 500 Vdc @ 20°C
Insulation resistance Minimum 100Mohm
Datasheet Download
