Thermo-Electra HT 4095 Handheld lance for Marshall tip thermocouple

Thermo-Electra HT 4095 Handheld lance for Marshall tip thermocouple

Product Code: HT4095

Manufacturer: Thermo-Electra


High-temperature thermocouple type K, N, R, S and B (Platinum-Platinum Rhodium) for temperatures up to 1800°C or higher with primary and secondary ceramic protection tubes. Depending on the process conditions we supply protection tubes from Kanthal, Silicium-Carbide, Tantalum, Titanium, Hastelloy-alloys, Haynes, Monel, Sapphire, Ceramic tubes KER710/C799, KER630/C630, KER530/C530, etc. for temperature sensing applications like blast or carburizing furnaces, kilns, ovens, galvanizing baths and flue gas and other environments where their robust construction ensures long temperature sensor life.

Model HT 4095
Application Use in molten brass, copper, aluminium, lead and other non-Ferrous metals maximum temperature 1255 °C
Construction Single piece solid Marshall tip, replacable element
Material SS 446
Diameter 12.7 mm (1/2″)
Standard tip length L = 8, 12, 15, 20, 24 or 30″
Length Length K = Lance length + 80mm to specify
Lead wire Ceramic insulated
Calibration Type K
Model PH
Construction Curved lance with instrument case
Lance length Standard 1100 mm

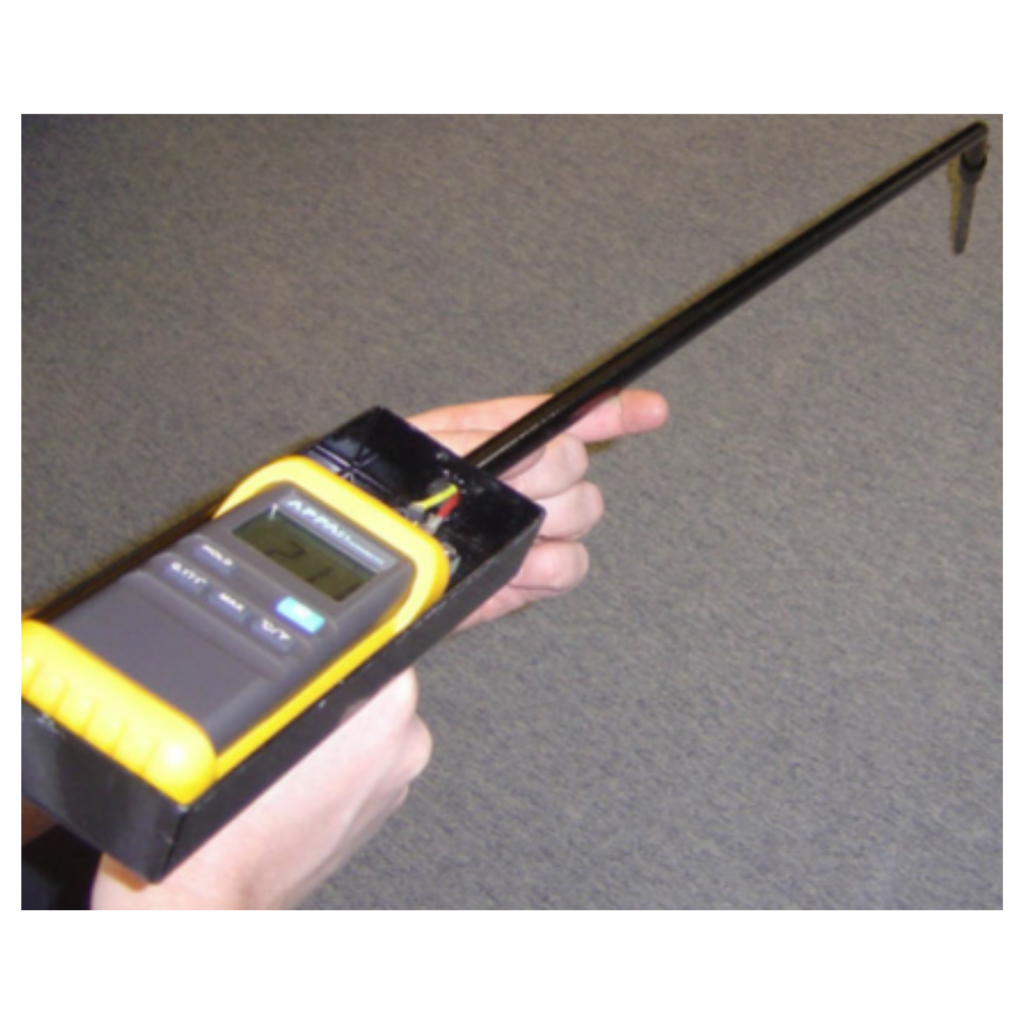

Digital thermometer option APPA 51 digital thermometer, type K
For standard version of 1300mm (tube+tip) see
Datasheet Download
