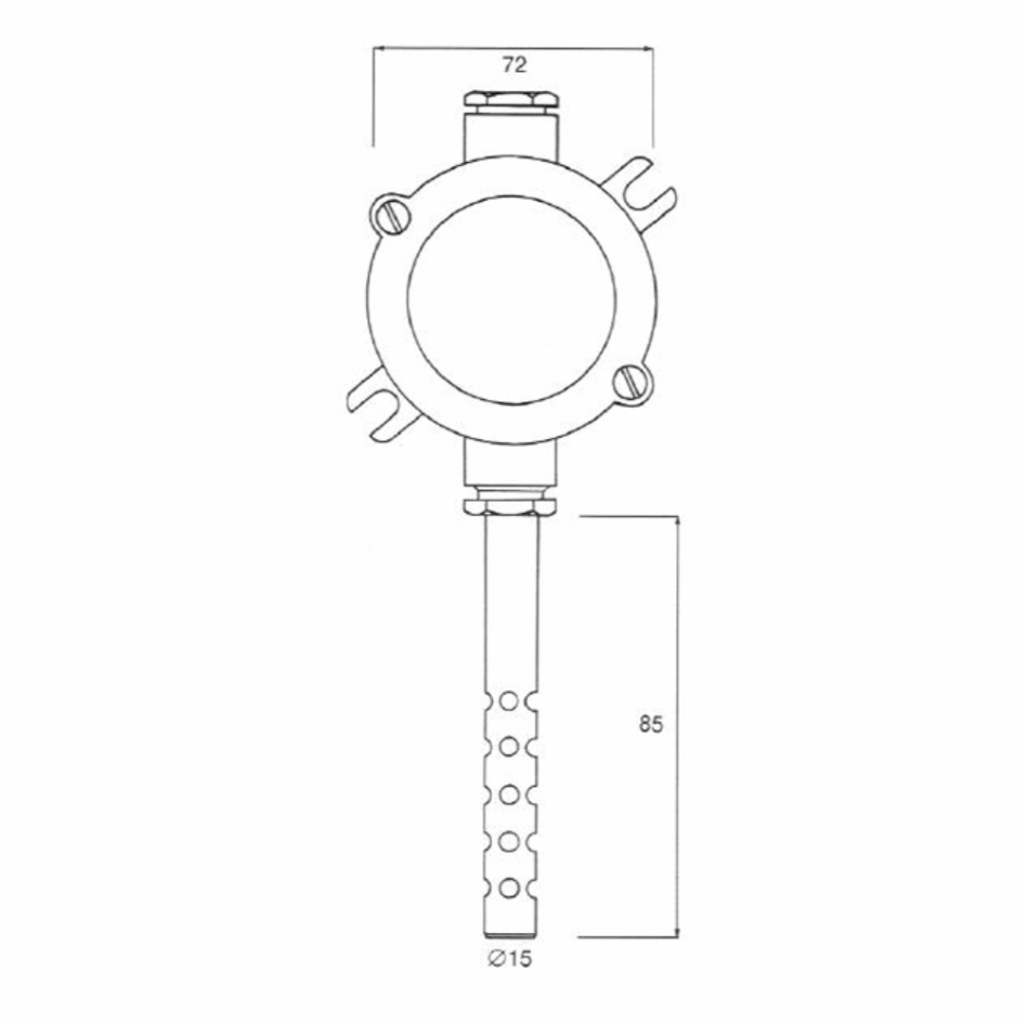

Thermo-Electra DWK 6095 Air resistance thermometer
Product Code: DWK6095
Manufacturer: Thermo-Electra
Thermo-Electra manufactures sensors for engine bearings, exhaust gasses, turbo measurement, and for cargo measurement. Most of our standard sensors in Pt100 have an international Lloyds Register approval. Most of the temperature sensors have an improved vibration construction specially for vibrating equipment such as engines and turbines. The best vibration-proof option is to use thermocouple temperature measurement instead of Pt100 / resistance temperature measurement. Usually, a pocket or thermowell is used to protect the temperature sensor and an additional benefit of using a pocket or thermowell is that the sensor can be replaced without opening the process
Designed for use in maritime environments
Type approval LLoyds Register Marine
Category TEK 100 4L
Material SS 316 – ( Wst 1.4401 ) standard, other materials possible
Construction Perforated tube
Material Brass
Cable entry M24x1.5 cable gland
Single Pt100
Style / Connection 4-wire system
Accuracy AA according to IEC 60751
Range -40 / +70°C
Testing Tested 500VDC
Insulation Minimum 100 Mohm
Protection IP 65
| Datasheet | Download |
