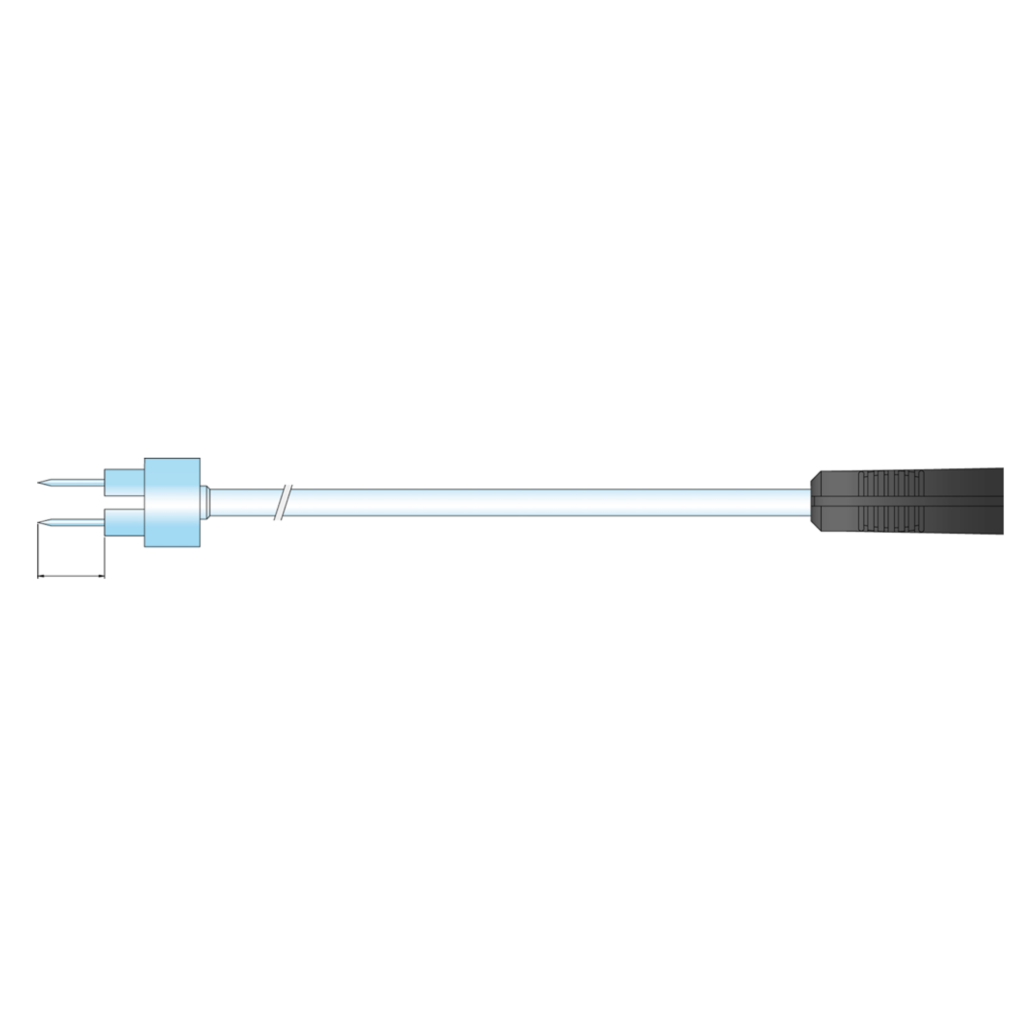

Thermo-Electra 80514 Sheet metal surface thermocouple probe with contact pins
Click to enlarge

Thermo-Electra 80514 Sheet metal surface thermocouple probe with contact pins

Thermo-Electra 80514 Sheet metal surface thermocouple probe with contact pins

Product Code: 80514

Manufacturer: Thermo-Electra


Thermo-Electra’s range of surface temperature thermocouples includes mechanical and magnetic contact probes and self-adhesive patch-type thermocouples for general and high-temperature surface measurement applications up to 800°C.

Application Area measurement on sheet metal
Measuring system Solid thermocouple pins with sharp points
Handle ABS plastic
Thermocouple Type K
Accuracy According to IEC60584-1
Response time 2 seconds
Max. tip temperature 1260°C / 2300°F
Sensor pins Solid thermocouple pins, replaceable
Pin diameter 3.0mm
Material Stainless steel
Tip Length 50mm
Extension 500mm
Execution Coiled cable
Material Polyurethane insulated
Colour Black (deviation from colourcode)
Connector Miniature thermocouple connector (black), with flat pins
Cable colour IEC/ANSI
Connector colour IEC/ANSI
Datasheet Download
