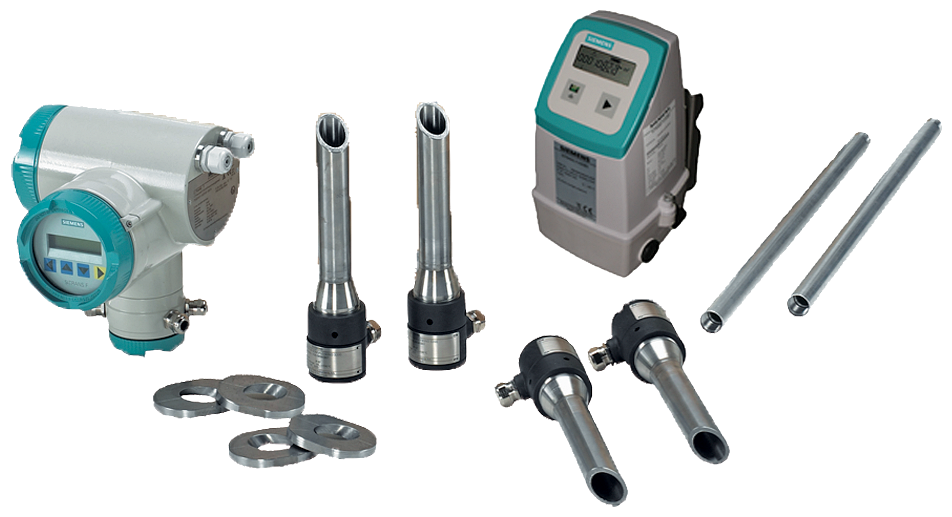

Siemens SONOKIT (with FUS060 or FUS080) Flowmeters

Siemens SONOKIT (with FUS060 or FUS080) Flowmeters

Download PDF

Benefits

• Cost-effective solution – contains all the necessary components for retrofitting
• SONOKIT is easy to install in pipeline sizes DN 200 to DN 4000 (8” to 160”) 1-path DN 100 to DN 2400 (4” to 96”).
• No bypass installation necessary – withstands pressures up to 40 bar (580 psi) and media temperatures between ‑20 °C and +200 °C (‑4 °F and +392 °F)
• High accuracy – the bigger the pipe, the more accurate the result
• Solid construction and no moving parts for a 100 % maintenance and obstruction-free flowmeter
• The SONOKIT comes with transducers in IP68 enclosure.
• Available in a robust version that can be buried and withstands constant flooding.
• In-line transducers assure superior accuracy and performance.
• Automatic calculation of the calibration factor when pipe geometry data are entered in the transmitter.
• FUS060 transmitter versions with HART or PROFIBUS PA
• FUS080 transmitter, battery or mains-powered

Application

• Raw water intake for water treatment plants
• Water distribution systems
• Irrigation systems
• Power generation (energy and water)
• District heating plants
• Cooling water plants within the industry and in power stations
• Systems within the oil and refinery business
• Sewage treatment plants
• Plants transporting non-conductive liquids
