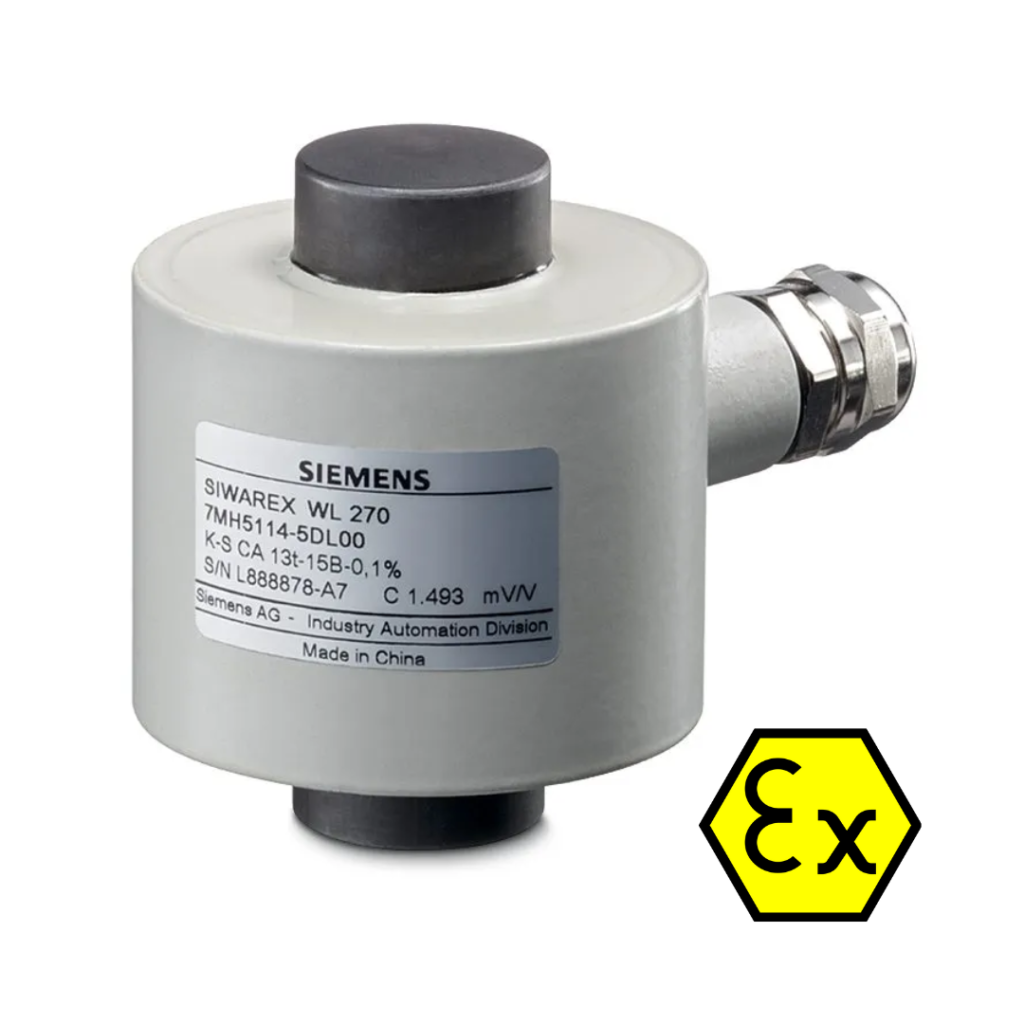

Siemens SIWAREX WL270 K-S CA compression load cell is characterized by its very high load class up to 500t and extremely low installation height, making it ideal for container and hopper scales (including for level measurement). In addition to options for expanded load ranges and high temperatures, the load cell also offers options for explosive areas in Zones 2 and 22.
Use in extreme temperatures up to 250 °C
This load cell features options for expanded temperature ranges, for all rated loads.The specially developed strain gauges can be used in a temperature range from -30 °C to 250 °C without any damage. Cables and accessories are appropriately adapted to these temperature ranges.
More application security with a double bridge Applications such as cranes require high security standards. SIWAREX WL270 K-S CA offers an option for a redundant design with a double bridge in the load cells. Both measuring bridges deliver continuous measurement values, which make it possible to check for any discrepancies during the weighing process. If one bridge is damaged, the second bridge continues to work. This option is available for loads of 13t or greater. An enclosure made of painted steel protects the strain gauge from environmental influences.
Use in explosive areas The load cell is also available with Ex protection for Zones 2 and 22 as an option. The deflection of the load cell depends on the rated load and lies between 0.23 and 3.11 mm (0.01 and 0.11 inch).
Siemens SIWAREX WL270 K-S CA compression load cell is characterized by its very high load class up to 500t and extremely low installation height, making it ideal for container and hopper scales (including for level measurement). In addition to options for expanded load ranges and high temperatures, the load cell also offers options for explosive areas in Zones 2 and 22.
Use in extreme temperatures up to 250 °C
This load cell features options for expanded temperature ranges, for all rated loads.The specially developed strain gauges can be used in a temperature range from -30 °C to 250 °C without any damage. Cables and accessories are appropriately adapted to these temperature ranges.
More application security with a double bridge Applications such as cranes require high security standards. SIWAREX WL270 K-S CA offers an option for a redundant design with a double bridge in the load cells. Both measuring bridges deliver continuous measurement values, which make it possible to check for any discrepancies during the weighing process. If one bridge is damaged, the second bridge continues to work. This option is available for loads of 13t or greater. An enclosure made of painted steel protects the strain gauge from environmental influences.
Use in explosive areas The load cell is also available with Ex protection for Zones 2 and 22 as an option. The deflection of the load cell depends on the rated load and lies between 0.23 and 3.11 mm (0.01 and 0.11 inch).
