Uniform design, and totally integrated communication in SIMATIC S7 and SIMATIC PCS 7
Uniform configuration with SIMATIC
Direct use in the SIMATIC automation system
Use in distributed plant concept through connection to PROFIBUS DP/PROFINET using ET 200M
Measurement of weight or force with high resolution of 16 million intervals
High accuracy 3 x 6000 d, legal-for-trade
Optimized measuring accuracy through use of METTLER TOLEDO weighing modules and Modulo WM and Modulo WMH weighing platforms
Optimized measurement speed through use of Wipotec load cells, type EC and IW
Connection of digital load cells in accordance with the string vibration measurement method from PESA is possible
Legal-for-trade display with SIMATIC standard operator panels
Continuous or stepped feed control
Exact switching of dosing signals (< 1 ms)
Parameterizable inputs and outputs
Parameterizable for highly versatile applications
Flexible adaptation to different requirements with SIMATIC
Simple adjustment of scale using the SIWATOOL FTA program
Theoretical adjustment without adjustment weights
Replacement of module without renewed adjustment of scale
Recording of weighing sequence
Legal-for-trade alibi memory
Can be used in Ex applications
Application

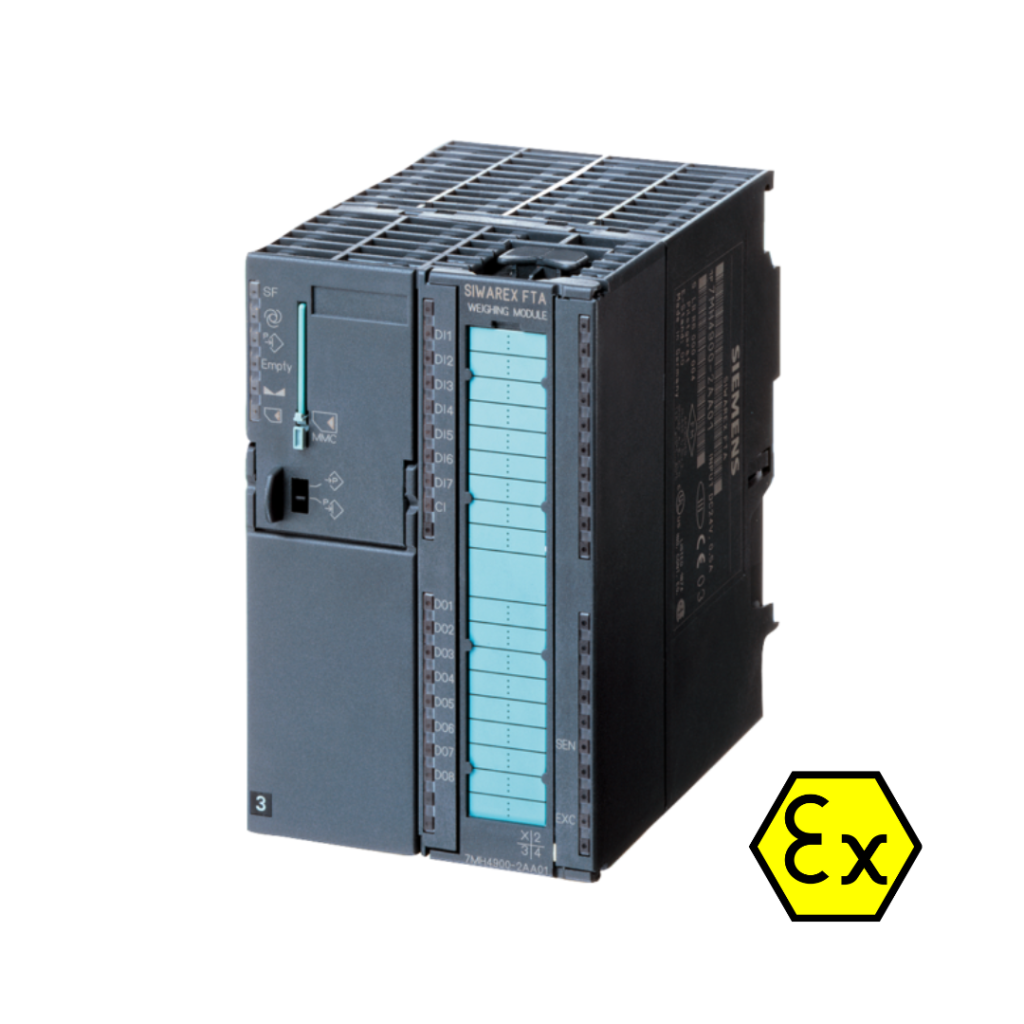

The SIWAREX FTA weighing module is the optimum solution wherever high demands are placed on accuracy and speed.
Thanks to its outstanding measuring properties, weights can be measured with extreme accuracy in up to three ranges.
SIWAREX FTA can be used to design legal-for-trade dosing systems, such as filling plants, loading stations, bagging stations, rotopackers, mixers or test stations.
Typical fields of application include:
Filling of liquids
Bagging of solid matter (also big bag)
Proportioning as deduction weighing or fill weighing
Checking of individual quantities
Loading or receiving of materials
Static checkweigher
Check weigher (in combination with Wipotec load cells)
Uniform design, and totally integrated communication in SIMATIC S7 and SIMATIC PCS 7
Uniform configuration with SIMATIC
Direct use in the SIMATIC automation system
Use in distributed plant concept through connection to PROFIBUS DP/PROFINET using ET 200M
Measurement of weight or force with high resolution of 16 million intervals
High accuracy 3 x 6000 d, legal-for-trade
Optimized measuring accuracy through use of METTLER TOLEDO weighing modules and Modulo WM and Modulo WMH weighing platforms
Optimized measurement speed through use of Wipotec load cells, type EC and IW
Connection of digital load cells in accordance with the string vibration measurement method from PESA is possible
Legal-for-trade display with SIMATIC standard operator panels
Continuous or stepped feed control
Exact switching of dosing signals (< 1 ms)
Parameterizable inputs and outputs
Parameterizable for highly versatile applications
Flexible adaptation to different requirements with SIMATIC
Simple adjustment of scale using the SIWATOOL FTA program
Theoretical adjustment without adjustment weights
Replacement of module without renewed adjustment of scale
Recording of weighing sequence
Legal-for-trade alibi memory
Can be used in Ex applications
Application
The SIWAREX FTA weighing module is the optimum solution wherever high demands are placed on accuracy and speed.
Thanks to its outstanding measuring properties, weights can be measured with extreme accuracy in up to three ranges.
SIWAREX FTA can be used to design legal-for-trade dosing systems, such as filling plants, loading stations, bagging stations, rotopackers, mixers or test stations.
Typical fields of application include:
Filling of liquids
Bagging of solid matter (also big bag)
Proportioning as deduction weighing or fill weighing
Checking of individual quantities
Loading or receiving of materials
Static checkweigher
Check weigher (in combination with Wipotec load cells)
