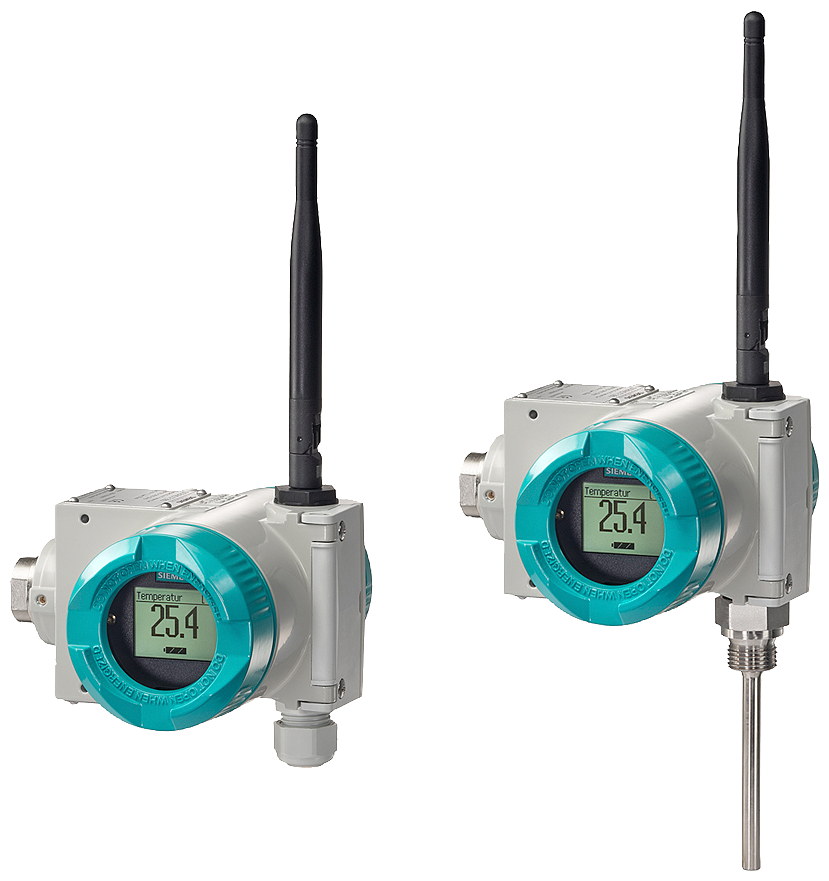

Siemens SITRANS TF280 Transmitter

Siemens SITRANS TF280 Transmitter

Siemens SITRANS TF280 Transmitter

Product Code: SITRANS TF280

Manufacturer: Siemens

The SITRANS TF280 is a WirelessHART temperature transmitter that provides all measured process values as well as diagnostic information, parameters and functions via radio. The device is powered by an internal battery and designed for ultra low power consumption. Its compact and rugged design makes it specially suitable for direct mounting on tanks and pipes in remote parts of plants, and on moving or rotating equipment for process monitoring or asset management applications.


The SITRANS TF280 is a temperature transmitter that features Wireless HART as the standard communication interface.

Also available is a wired interface to connect a HART modem:

  • Flexible temperature measurement
  • Save costs on writing for difficult installation conditions. Wireless technology offers cost advantages in cases where extensive wiring cots would normally apply.
  • It enables additional hitherto unfeasible measuring points, particularly for monitoring purposes
  • Easy installation also on moveable equipment parts
  • Enables cost-effective temporary measurements, for example for process optimizations.
  • Optimum addition to wired communication and expansion of solution options for system solutions in process automation

The SITRANS TF280 is a WirelessHART field device for measuring temperature with a Pt100 sensor.

This sensor can be installed directly on the field device, or connected at an offset with a cable connection. On the wireless communication side, the transmitter supports the WirelessHART standard. A HART modem can be connected to the transmitter particularly for initial parameterization.

It can be used in all industries and applications in non-explosive areas.

Datasheet Download
Instruction Manual Download
Temperature Measurement Download
