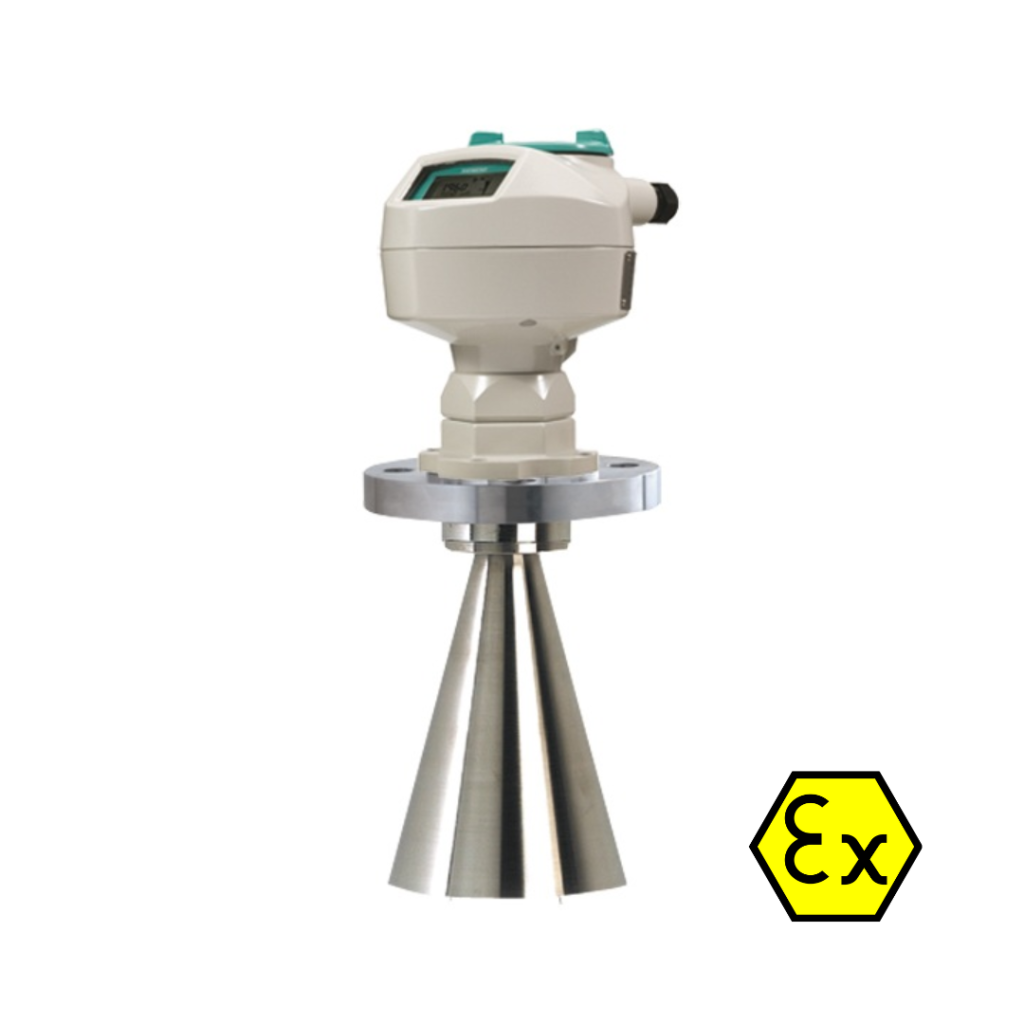

Siemens SITRANS LR200 is a 2-wire, 6 GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in process vessels including high temperature, pressure, agitation, and turbulence to a range of 20 m (65 ft).
SITRANS LR200’s unique design allows safe and simple program ming using the Intrinsically Safe handheld programmer without having to open the instrument’s lid. It also features a built-in alpha numeric display in four languages.
The SITRANS LR200 has a standard Uni-Construction polypropylene rod antenna that offers excellent chemical resistance and is hermet ically sealed. The Uni-Construction antenna features an internal, integrated shield that eliminates vessel nozzle interference.
Startup is easy with as few as two parameters for basic operation. Installation is simplified as the electronics are mounted on a rotat ing head that swivels, allowing the instrument to line up with con duit or wiring connections or simply to adjust the position for easy viewing. SITRANS LR200 features Process Intelligence signal-pro cessing technology for superior reliability.
Key Applications: liquid process vessels with agitators, vaporous liquids, high temperatures, asphalt
Benefits
- Graphical local user interface (LUI) makes operation simple with plug-and-play setup using the intuitive Quick Start Wizard
- LUI displays echo profiles for diagnostic support
- Communication using HART or PROFIBUS PA
- Process Intelligence signal processing for improved measurement reliability and Auto False-Echo Suppression of fixed obstructions
- Programming using infrared Intrinsically Safe handheld programmer or SIMATIC PDM
