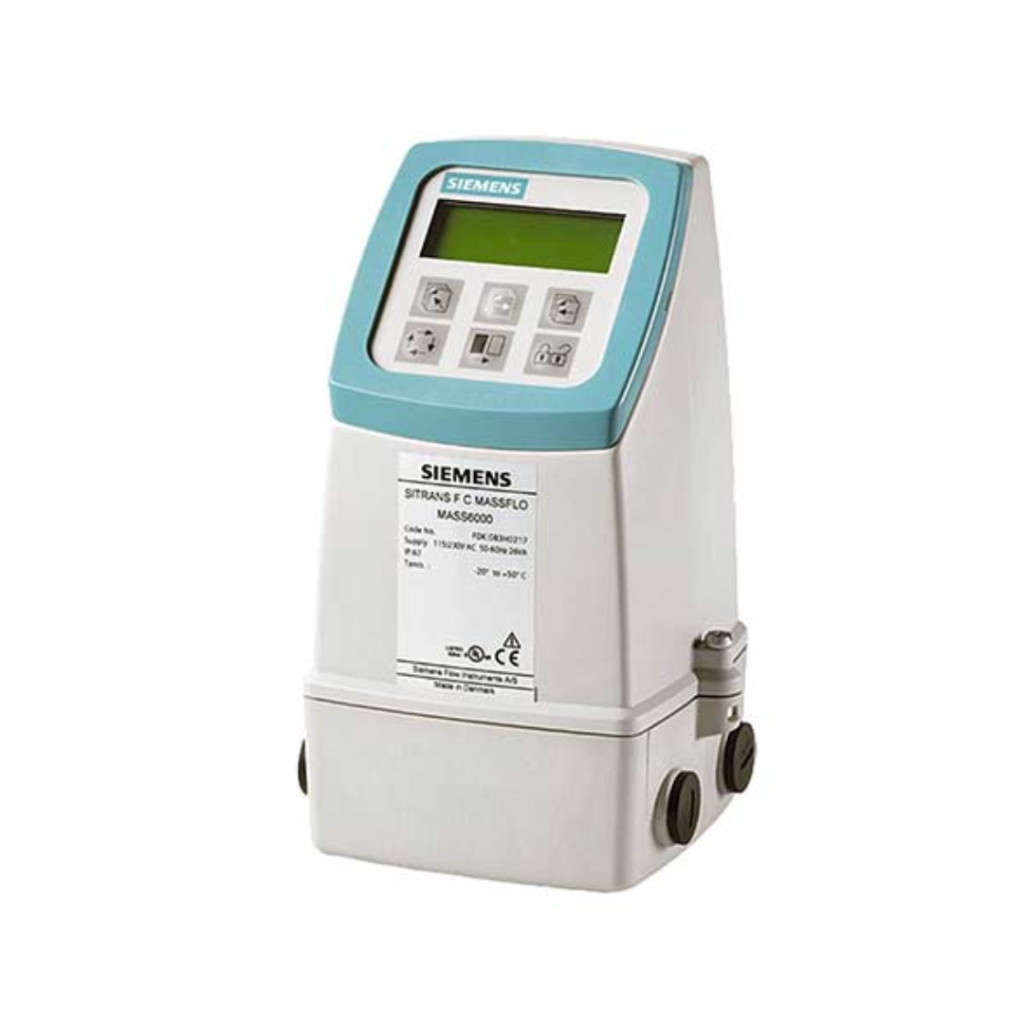

Siemens MASS 6000 IP67 compact/remote

Siemens MASS 6000 IP67 compact/remote

Siemens MASS 6000 IP67 compact/remote

Product Code: MASS 6000 IP67 compact/remote

Manufacturer: Siemens


Benefits

  • Dedicated mass flow chip with the latest ASIC technology
  • Fast batching and flow step response with an update rate of true 30 Hz
  • Superior noise immunity due to a patented DFT (Discrete Fourier Transformation) algorithm.
  • Front end resolution better than 0.35 ns improves zero point stability and enhances dynamic turn-down ratio on flow and density accuracy.
  • Advanced diagnosis and service menu enhances trouble shooting and meter verification.
  • Built-in batch controller with compensation and monitoring comprising 2 built-in totalizers
  • Multi-parameter outputs, individual configurable for mass flow, volume flow, density, temperature or fraction flow such as Brix or Plato
  • Digital input for batch control, remote zero adjust or forced output mode
  • All outputs can be forced to preset value for simulation, verification or calibration purposes.
  • User-configurable operation menu with password protection:
    • 3 lines, 20 characters display in 11 languages
    • Self-explaining error handling/log in text format
    • Keypad can be used for controlling batch as start/stop/hold/reset.
  • SENSORPROM technology automatically configures transmitter at start-up providing:
    • Factory pre-programming with calibration data, pipe size, sensor type, output settings
    • Any values or settings changed by users are stored automatically.
    • Automatically re-programming any new transmitter without loss of accuracy
    • Transmitter replacement in less than 5 minutes. True “plug & play”
  • 4-wire Pt1000 temperature measurement ensures optimum accuracy on mass flow, density and fraction flow.
  • Fraction flow computation based on a 3rd-order algorithm matching all applications.
  • USM II platform enables fitting of add-on bus modules without loss of functionality.
    • All modules can be fitted as true “plug & play”.
    • Module and transmitter are automatically configured through the SENSORPROM.
  • Installation of the transmitter to the sensor is simple “plug & play” via the sensor pedestal.

Application

SITRANS F C mass flowmeters are suitable for all applications within the entire process industry, where there is a demand for accurate flow measurement. The meter is capable of measuring both liquid and gas flow.

The main applications for the MASS 6000 IP67 transmitter can be found in:

  • Food and beverage industries
  • Pharmaceutical industries
  • Automotive industry
  • Oil and gas industry
  • Power generation and utility industry
  • Water and waste water industry


Datasheet Download
Instruction Manual Download
