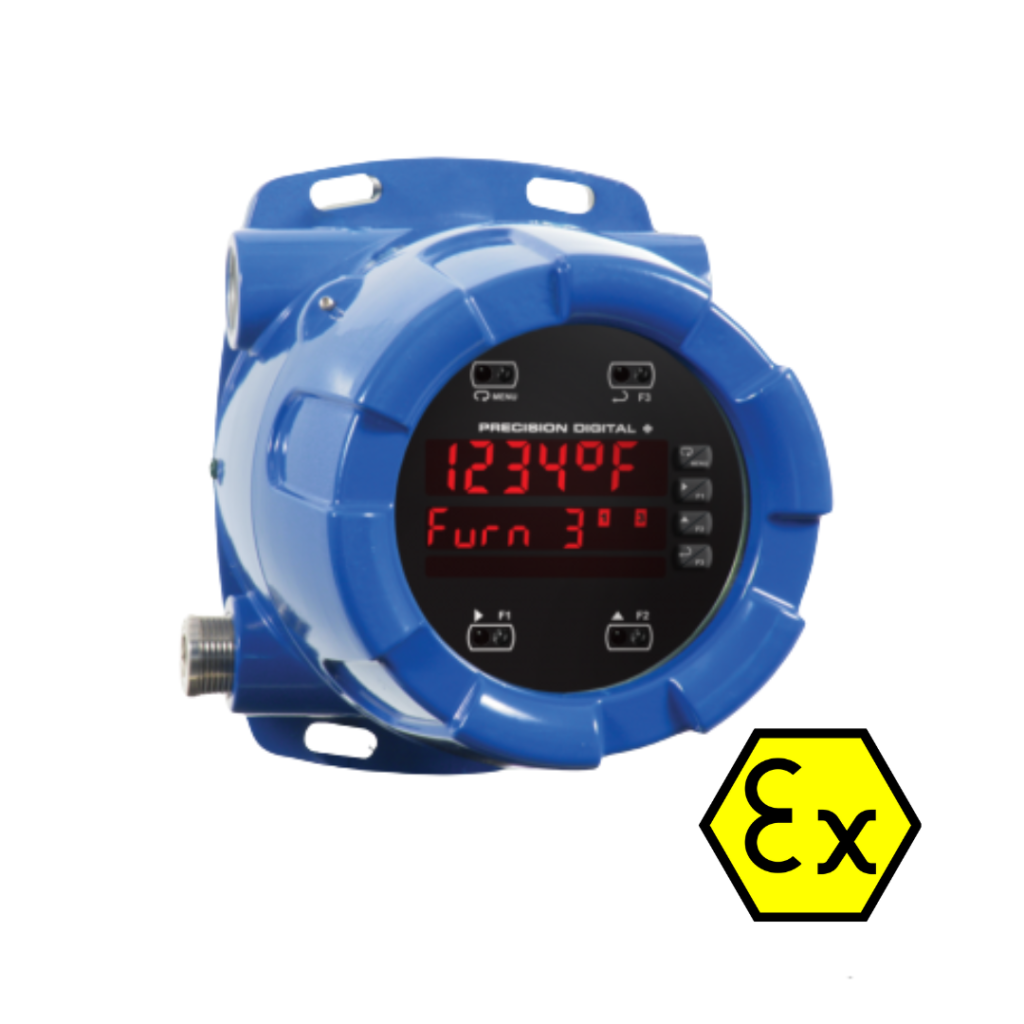

Precision Digital PD8-7000 ProtEX-MAX Explosion-Proof Temperature Meter
Product Code: PD8-7000
Manufacturer: Precision Digital
The ProtEX-MAX™ PD8-7000 offers all the functionality of the ProVu PD7000 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product. It accepts a direct temperature input from a wide range of temperature measurement devices (type J, K, T, E, R, S, B, N, and C thermocouples and 100 or 1000 Ω platinum, 10 Ω copper, 120 Ω nickel RTDs). It displays the measured temperature in either degrees Fahrenheit or degrees Celsius on a dual-line, 6-digit Sunbright sunlight readable display. The meter includes automatic cold junction compensation for thermocouples and the ability to average up to ten (10) RTD sensors. The PD8-7000 can be equipped with four internal relays and a 4-20 mA analog output. It can be programmed and operated without opening the housing by using the built-in SafeTouch® through-glass buttons or the RS485 serial communication port with free Modbus® protocol.
• Modern, Sleek and Practical Enclosure
• Display Mountable at 0°, 90°, 180°, & 270° Degrees
• Explosion-Proof, IP68, NEMA 4X Enclosure
• SafeTouch® Through-Glass Button Programming
• J, K, T, E, R, S, B, N, C Thermocouples
• 100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs
• 1° or 0.1° Resolution
• Averages up to 10 RTD Sensors
• Automatic Cold Junction Compensation
• Input Power Options Include 85-265 VAC or 12-24 VDC
• Large Dual-Line 6-Character Display, 0.60″ & 0.46″
• Programmable Displays & Function Keys
• SunBright Display Standard
• 4 Relays + Isolated 4-20 mA Output Option
• External 4-Relay & Digital I/O Expansion Modules
• RS-232, & RS-485 Serial Communication Options
• Modbus® RTU Communication Protocol Standard
• On-Board Digital Input
• Onboard USB and MeterView® Pro Programming Software
