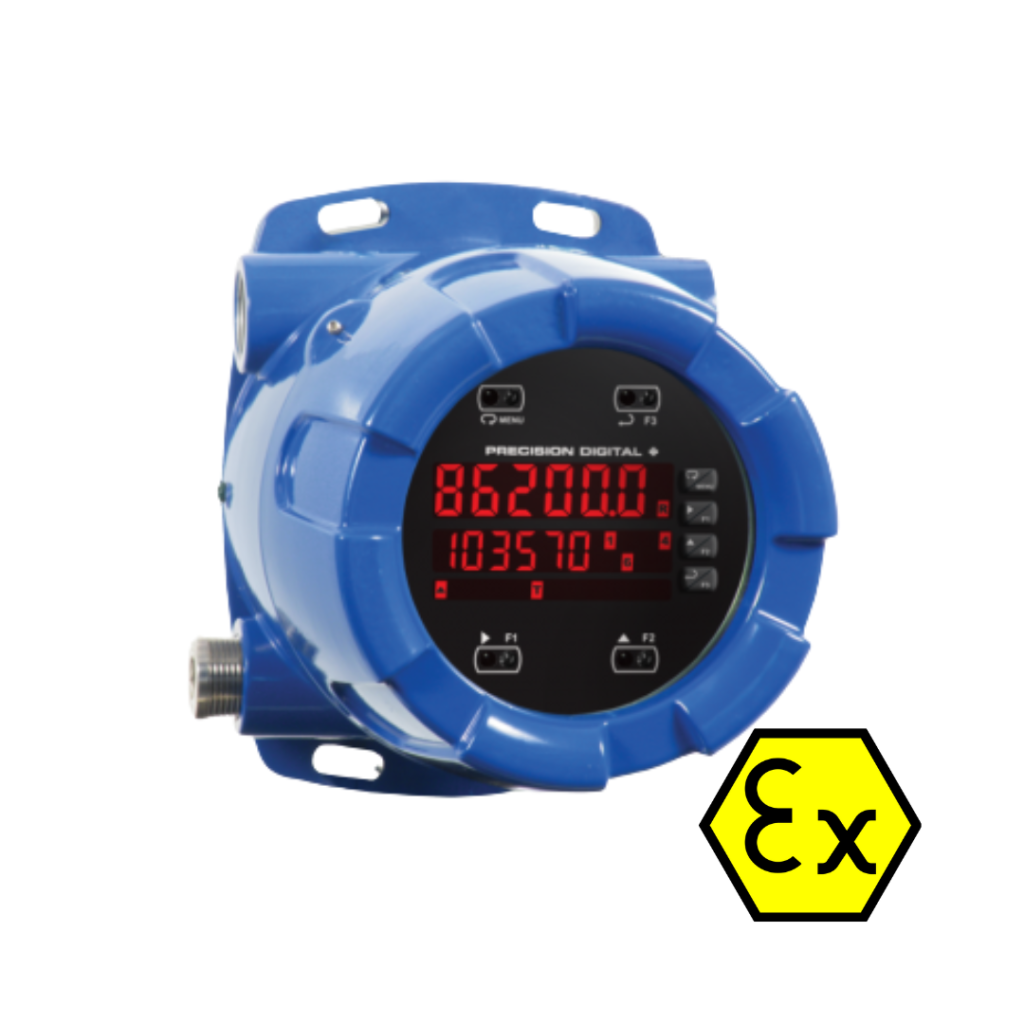

Precision Digital PD8-6200 ProtEX-MAX Explosion-Proof Analog Input Flow Rate/Totalizer
Product Code: PD8-6200
Manufacturer: Precision Digital
The ProtEX-MAX™ PD8-6200 offers all the functionality of the ProVu PD6200 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product. It is specifically designed to display flow rate and total from an analog output (4-20 mA, 0-5 V, 1-5 V, etc.) flowmeter. It displays that signal on a dual-line, 6-digit Sunbright sunlight readable display. Flow rate is typically displayed on the upper line and the cumulative total is displayed on the lower line. The total overflow feature allows up to a 9-digit total and grand total to be displayed. The PD8-6200 includes a 24 VDC power supply to drive the flowmeter and can be equipped with four internal relays and a 4-20 mA analog output. It can be programmed and operated without opening the housing by using the built-in SafeTouch® through-glass buttons or the RS485 serial communication port with free Modbus® protocol.
Common ProtEX-MAXTM METER Features
• Modern, Sleek and Practical Enclosure
• Display Mountable at 0°, 90°, 180°, & 270°Degrees
• Explosion-Proof, IP68, NEMA 4X Enclosure
• SunBright Display Standard
• Dual-Line 6-Digit Display, 0.60” & 0.46”
• SafeTouch Through-Glass Button Programming
• Universal 85-265 VAC or 12-24 VDC Input Power
• Onboard USB and MeterView® Pro Programming Software
Common Rate/Totalizer Features
• Display Rate & Total at the Same Time
• Rate in Units per Second, Minute, Hour, or Day
• Total, Grand Total or Non-Resettable Grand Total
• Password Protection for Total Reset
• 9-Digit Totalizer with Total Overflow Feature
• Total Stored in Non-Volatile Memory
• Any Relay for Rate or Total
• 4-20 mA Output for Rate or Total
• Sampling Relay
