Precision Digital PD6801 ProtEX Ex-Proof Feet & Inches Level Meter
Product Code: PD6801 ProtEX Ex-Proof Feet & Inches Level Meter
Manufacturer: Precision Digital

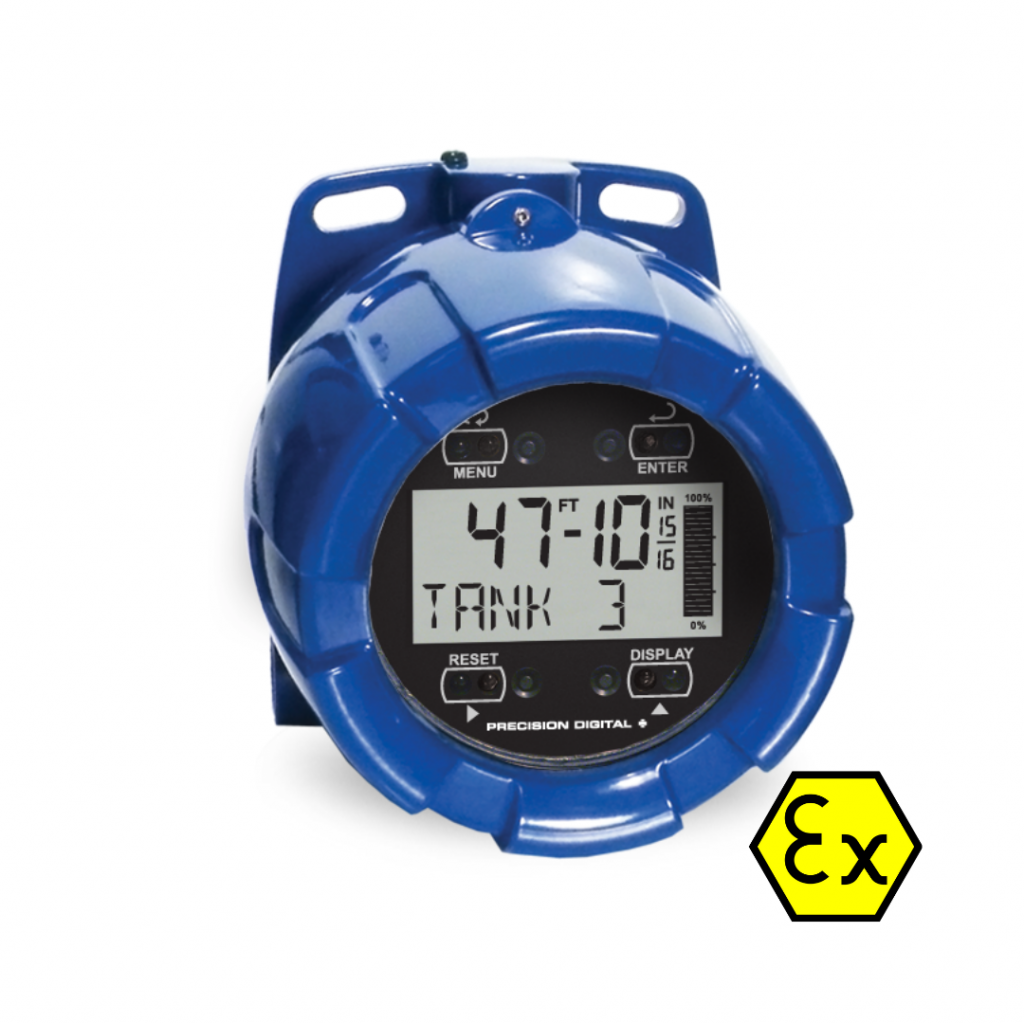

The PD6801 explosion-proof loop-powered level meter displays level information in clearly labelled feet and inches. It the ideal level meter for hazardous areas, or safe areas in need of an extremely rugged solution. Its unique feet and inches LCD can indicate up to 399 feet, 11 and 15/16 inches.
A glance at the 20-segment tank level indicator conveys the level status in an instant. The 7-digit, easy to understand 14-sgement lower display can show a combination of custom tag, volume, or percent. Volume is calculated as a second scaling of the 4-20 mA input loop, and the percent display shows the tank full percentage as well as a PCT label to clearly identify the display as percent. Backlighting is standard, and the display is viewable in varying lighting conditions, from wide angles, and from a distance.
The PD6801 includes a modern, smooth, cast aluminium enclosure with two threaded conduit holes and integrated pipe or wall mounting holes. The operating temperature range is -40 to 75°C. Worldwide explosion-proof agency approvals include FM, ATEX, CSA, IECEx.
- Display Level in Feet & Inches
- 4-20 mA Input Loop-Powered
- Programmable 1/8 or 1/16 Inch Display
- 20-Segment Tank Level Indicator
- Lower Display for Tag, Volume, or Percent
- SafeTouch® Through-Glass Button Programming
- Open Collector Alarm Output
- Loop-Powered or External DC-Powered Backlight Standard
- Explosion-Proof, IP68, NEMA 4X Enclosure
- Operates from -40 to 75°C
