Set Point Displayed as 0-100%, 4-20 mA, or 3-21 mA
Built-in Dial for Changing Output
Backlit Display
Coarse or Fine Set Point Adjustment
+/- 0.5% Output Accuracy
0.01 Display Accuracy
15-30 VDC Power Requirement
< 500 ohms Sampling Resistance
Overview
The PD420 4-20 mA current loop set point generator provides a convenient way to generate a 4-20 mA signal that can be used to control another device. The PD420 features a backlit LCD display that can be programmed to display 0-100%, 4-20 mA or 3-21 mA and output either 4-20 mA or 3-21 mA. A built- in dial is provided to vary the displayed / output value. The dial may be programmed for coarse or fine adjustment.

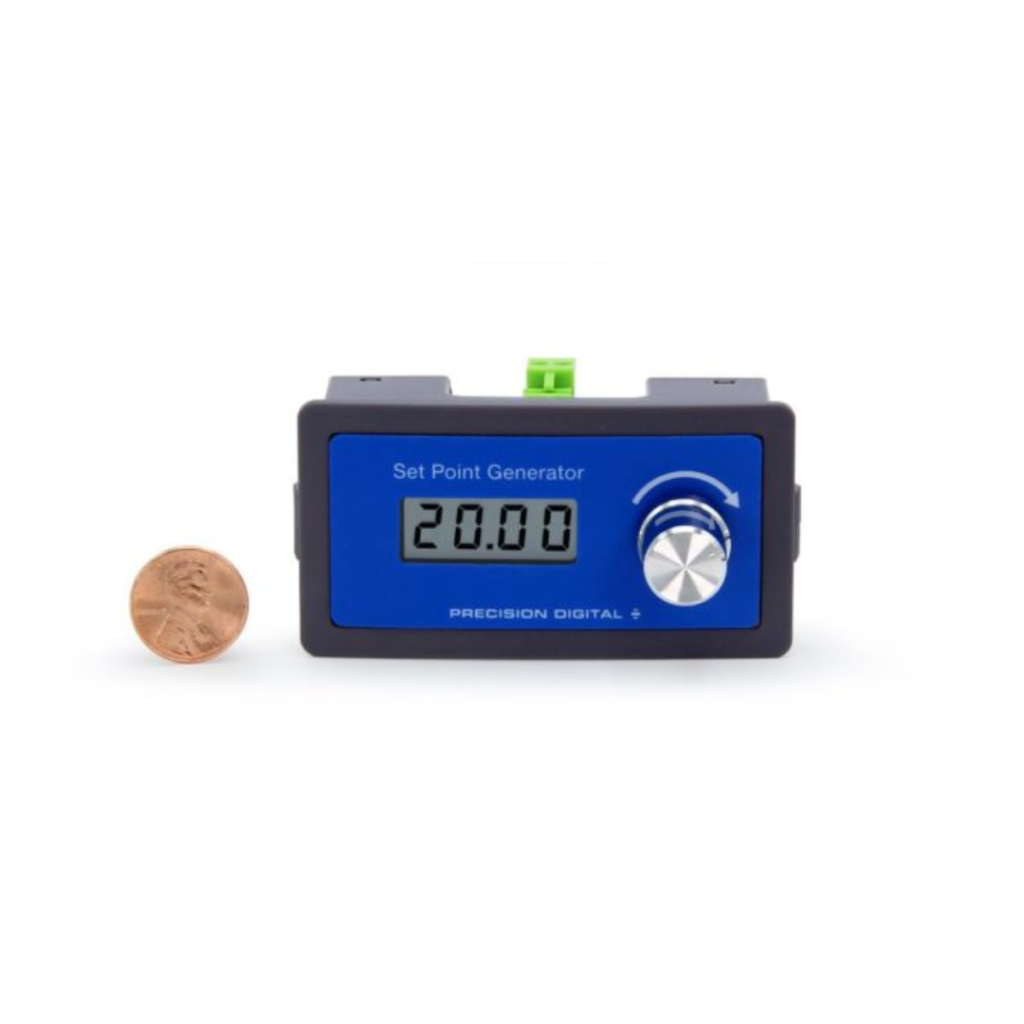

Precision Digital PD420 Panel Mount 4-20mA Set-Point Generator
Features
4-20 mA Current Loop Set Point Generator
4-20 mA or 3-21 mA Output Ranges
Set Point Displayed as 0-100%, 4-20 mA, or 3-21 mA
Built-in Dial for Changing Output
Backlit Display
Coarse or Fine Set Point Adjustment
+/- 0.5% Output Accuracy
0.01 Display Accuracy
15-30 VDC Power Requirement
< 500 ohms Sampling Resistance
Overview
The PD420 4-20 mA current loop set point generator provides a convenient way to generate a 4-20 mA signal that can be used to control another device. The PD420 features a backlit LCD display that can be programmed to display 0-100%, 4-20 mA or 3-21 mA and output either 4-20 mA or 3-21 mA. A built- in dial is provided to vary the displayed / output value. The dial may be programmed for coarse or fine adjustment.
