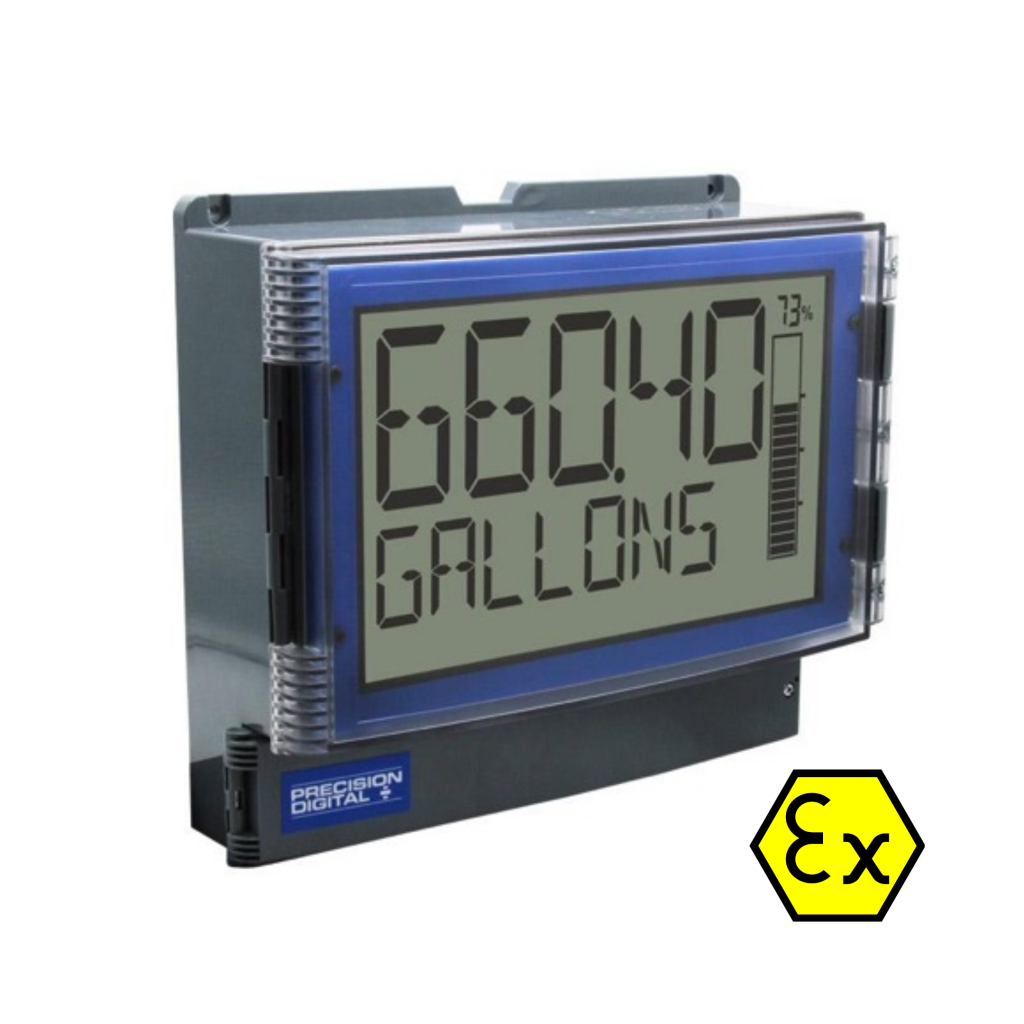

Precision Digital PD4-6600 Loop Leader+ Large Display Loop-Powered Process Meter

Precision Digital PD4-6600 Loop Leader+ Large Display Loop-Powered Process Meter

Features

• Large Display NEMA 4X, IP65 Loop-Powered Wall & Pipe Mounted Meters
• 4-20 mA Input Displayed with ±0.02% FS Accuracy
• 2.1 Volt Drop Maximum
• 2.8″ (71 mm) 5 Alphanumeric 14-Segment Characters Top Display (PD4-6604)
• 2.8″ (71 mm) 5 Digits 7-Segment, FT-IN & Fractions Top Display (PD4-6603)
• 1.5″ (39 mm) 8 Alphanumeric 14-Segment Characters Bottom Display
• Displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches (PD4-6603)
• 20-Segment Bargraph with Numeric Percent Indication
• (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
• (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
• Stopwatch & Timer Functions to Drive Relays & Open Collectors
• Optional Isolated 4-20 mA Analog Output
• Relay Pump Alternation Based on Level and Runtime
• Display Relay Runtime & Cycle Count via Relay Info Menu
• Round Horizontal Tank Function; Just Enter Diameter & Length
• 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
• Free PC-Based MeterView XL USB Programming Software
• Externally DC Powered Backlight with Red Backlight for Alarm Conditions
• Operating Temperature Range: -40 to 75°C (-40 to 167°F)
• Conformal Coated PCBs for Dust & Humidity Protection
• Pipe Mounting Kit Available
• 3-Year Warranty
