Precision Digital Helios Dual Pulse Input Flow Rate/ Totalizer PD2-6363
Product Code: PD2-6363
Manufacturer: Precision Digital

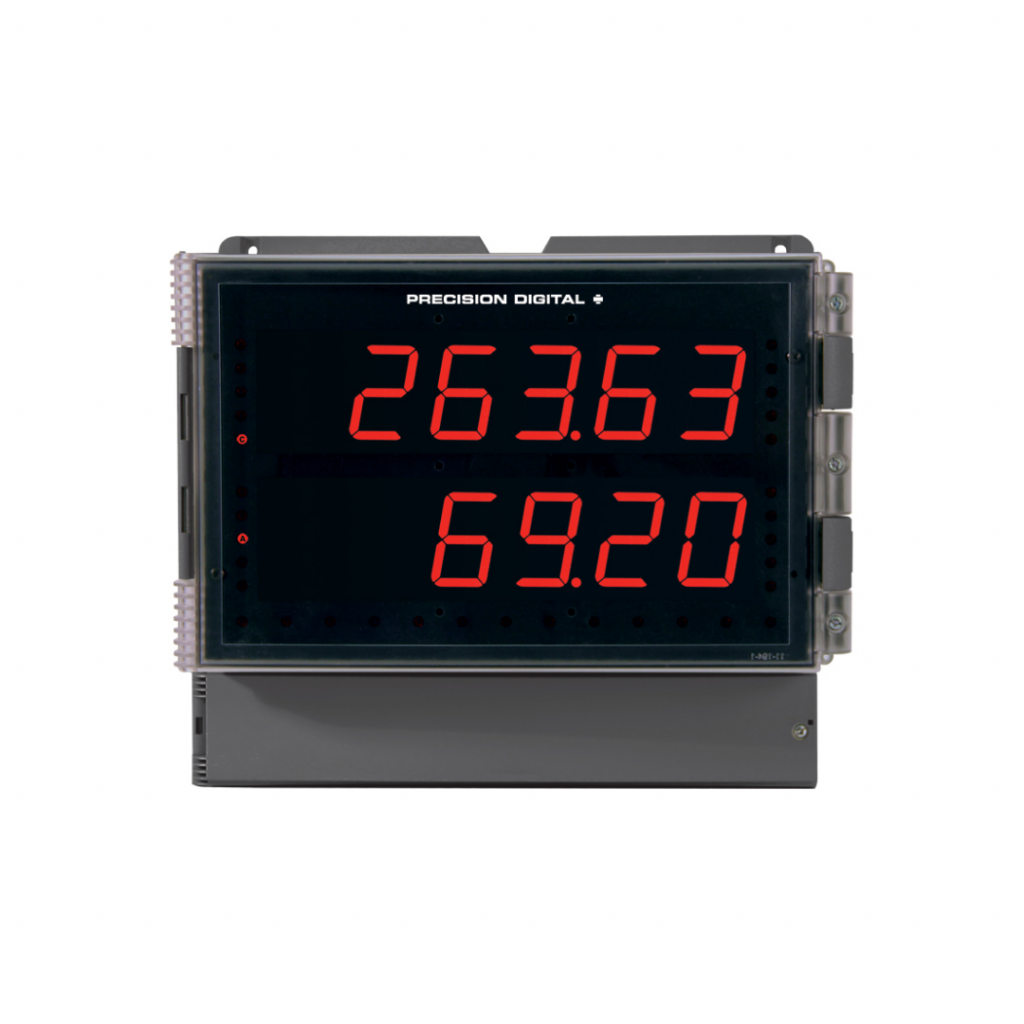

What sets the Helios apart from other Large Display Meters is its dual line display with super bright LEDs that can be read even in bright sunlight and up to 100 feet away. Based on Precision Digital’s popular line of ProVu® digital panel meters, the Helios can satisfy a wide variety of level, flow, temperature, pressure, & weight applications. It is available with models that accept 4-20 mA, thermocouple, RTD, pulse, strain gauge, AC and DC volts and current, and even Modbus®.
Go with the Helios PD2-6363 when you want to display two pulse flowmeter inputs on one meter you can see from a distance. Both of these inputs can be displayed on six full digits and each flowmeter is provided with its own DC power supply. The PD2-6363 can also perform a variety of math functions on those two inputs, such as computing the difference between them or summing them together. One application for the PD6363 is determining fuel consumption by computing the difference between two flowmeter inputs.
Take a look at the other Helios products from Precision Digital
- Two (2) Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave Inputs
- Large 1.80″ Digits
- Dual Line Display
- Six Full Digits on Each Line
- Readable From 100 Feet Away
- Superluminous Sunlight Readable Display
- NEMA 4X, IP65 Rated Field Mountable Enclosure
- Great for Outdoor Use: -40 to 150°F (-40 to 65°C)
- Program the Meter from a PC with Onboard USB and MeterView Pro
- Displays Two Flow Inputs Simultaneously
- Displays Rate and Total Simultaneously
- Math Functions Capabilities
- 5, 10, or 24 V Flowmeter Power Supply
- Count Up or Down, Total & Grand Total
- Gate Function for Rate Display of Slow Pulse Rates
- K-Factor, Internal Scaling, or External Calibration
- Non-Resettable Grand Total
- 32-Point Linearization
- On-Board Digital Input (for Remote Reset)
- Can Convert Pulse Input to an Isolated 4-20 mA Output
