Precision Digital Helios Feet and Inches Level Meter PD2-6001

Precision Digital Helios Feet and Inches Level Meter PD2-6001

The Helios Series delivers the same advanced measurement and control functionality found across Precision Digital’s most capable meter families, combined with a distinctive large-format display designed for maximum visibility. Based on the ProVu Series, Helios meters are available in models that support a wide range of input types, including 4–20 mA, thermocouples, RTDs, pulse signals, strain and load cells, and Modbus communication, allowing them to address level, flow, temperature, pressure, and weight applications. What sets the Helios Series apart is its dual-line display with equally sized digits on both lines, providing clear presentation of multiple values at once.

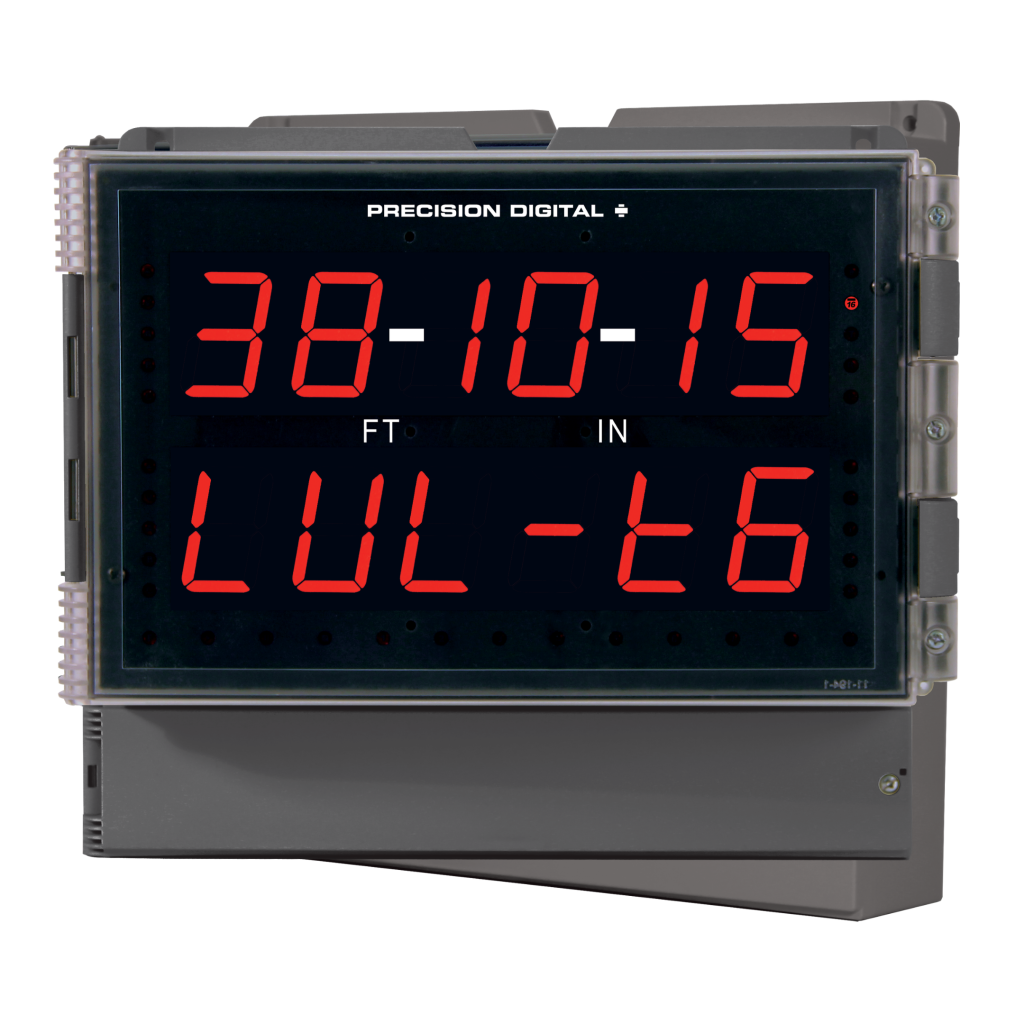

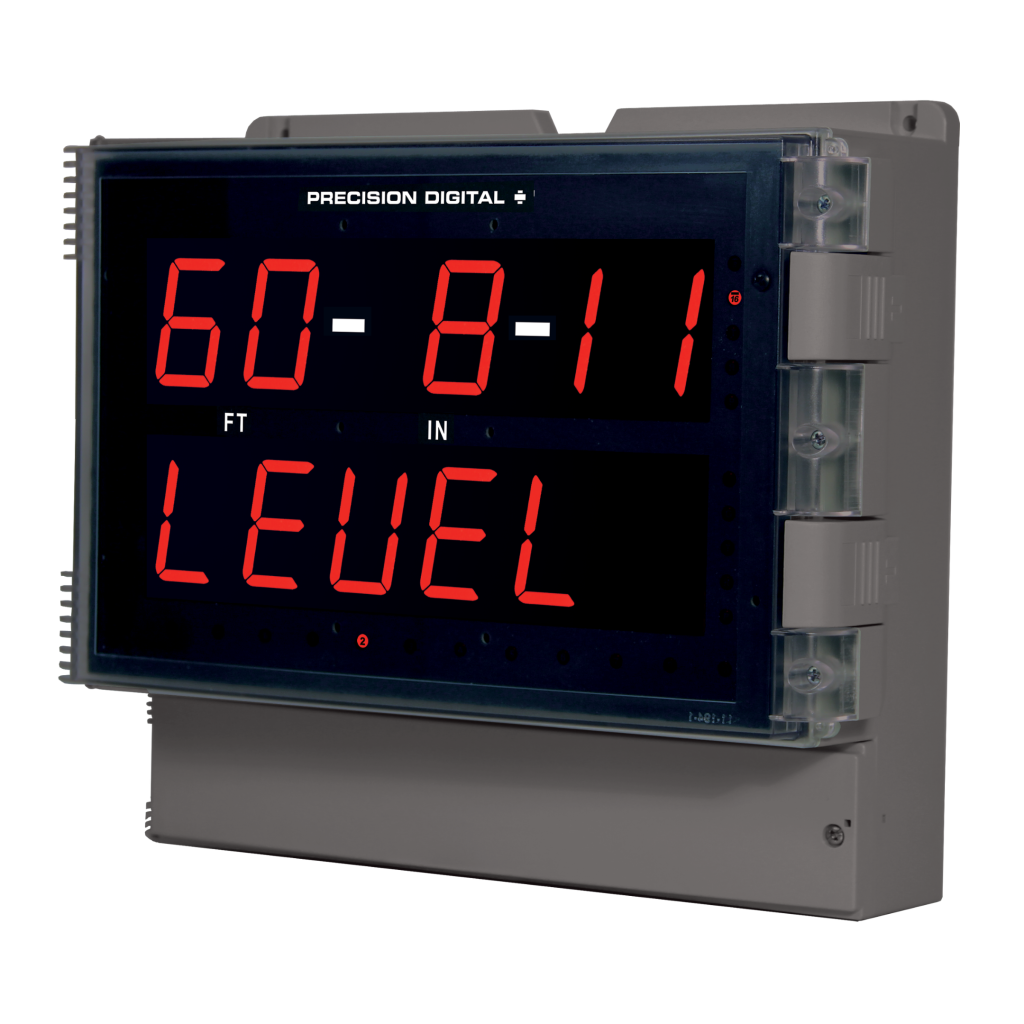

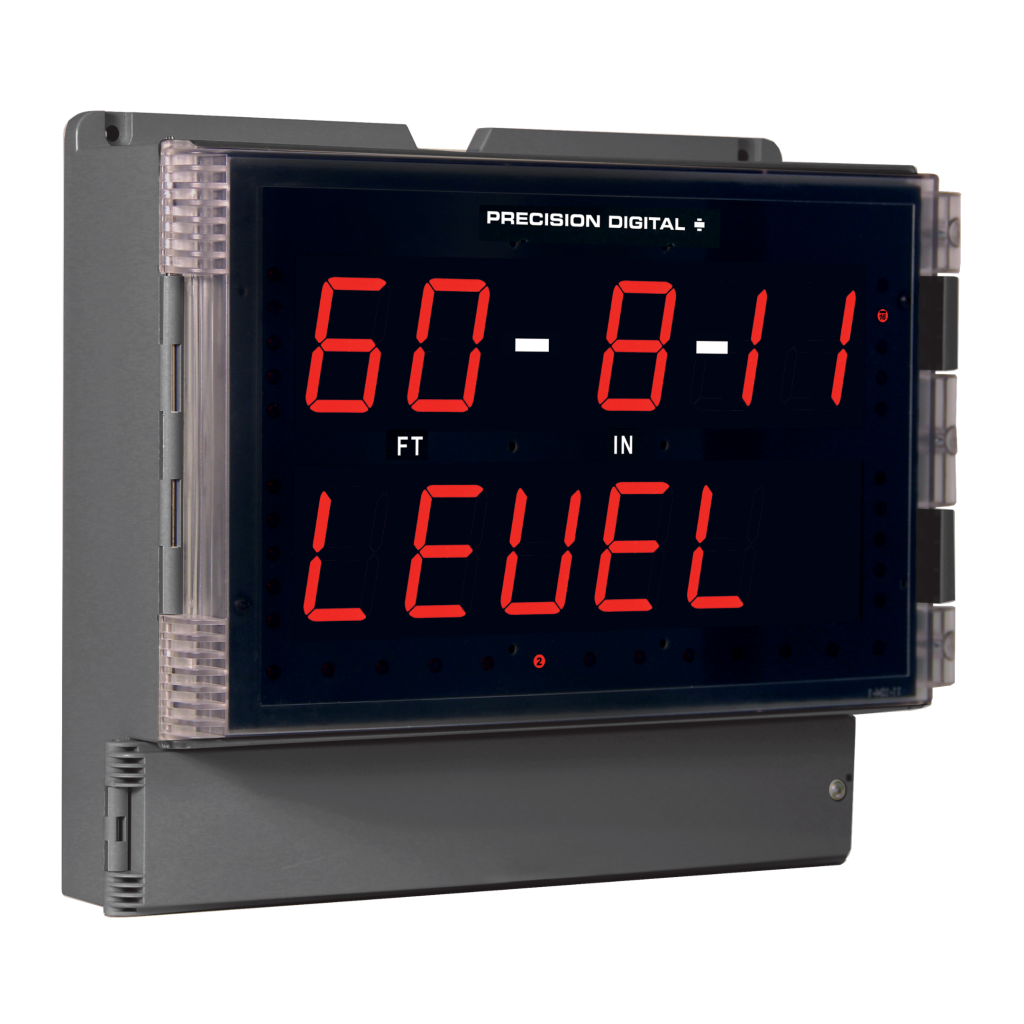

Go with the Helios PD2-6001 when you prefer to read level in feet and inches instead of the more common decimal format. This unique display will read up to 99 feet, 11 & 15/16s inches on the upper line. The lower line can display a tag or volume, even from non-linear tanks such as round horizontal ones. The PD2-6001 makes a great outdoor tank side indicator because its display is bright enough to read in direct sunlight and it will operate from -40 to 150°F. The PD2-6001 can also be equipped with a 4-20 mA output as well as four relays that can be used for alarming or controlling applications, including pump alternation control.

Super-bright LED digits are approximately three times larger than standard panel meters and remain easy to read in direct sunlight from distances up to 100 feet, making Helios ideal for wall-mounted installations where visibility from across a facility is critical. With advanced capability, intuitive configuration, and a rugged NEMA 4X enclosure, the Helios Series delivers clear, reliable indication and control in demanding indoor and outdoor industrial environments.
