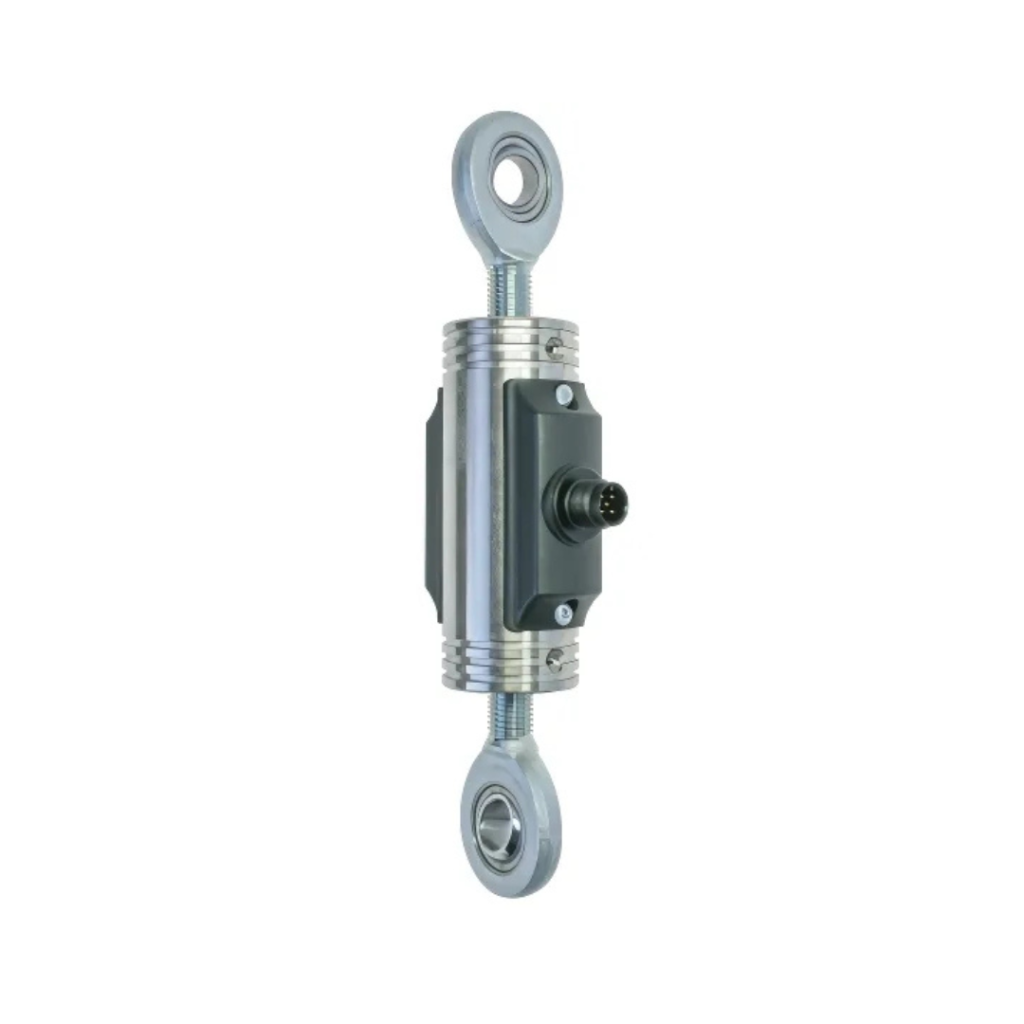

Müller Modular Universal Load Cell SIL3 + PL"e" (MULC)

Müller Modular Universal Load Cell SIL3 + PL"e" (MULC)

Technical Features

• Sensor input: 1x strain gauge full bridge
• (350 ohms)
• Function load cell: tension load, compression load, tension and compression load
• Measuring range: 1000 kg, 1500 kg, 3000 kg
• Analog output: 2x 4…20 mA
• Power supply: 24 VDC +/-10%
• Accuracy: 5% deviation setpoint/actual value
• Protection: IP54
• Vibration protection: electronics completely potted
• Test input: test pulse 24 VDC
• Material load cell: stainless steel, alloy steel nickel-plated
• Certificates: SIL 3, Performance Level “e”
