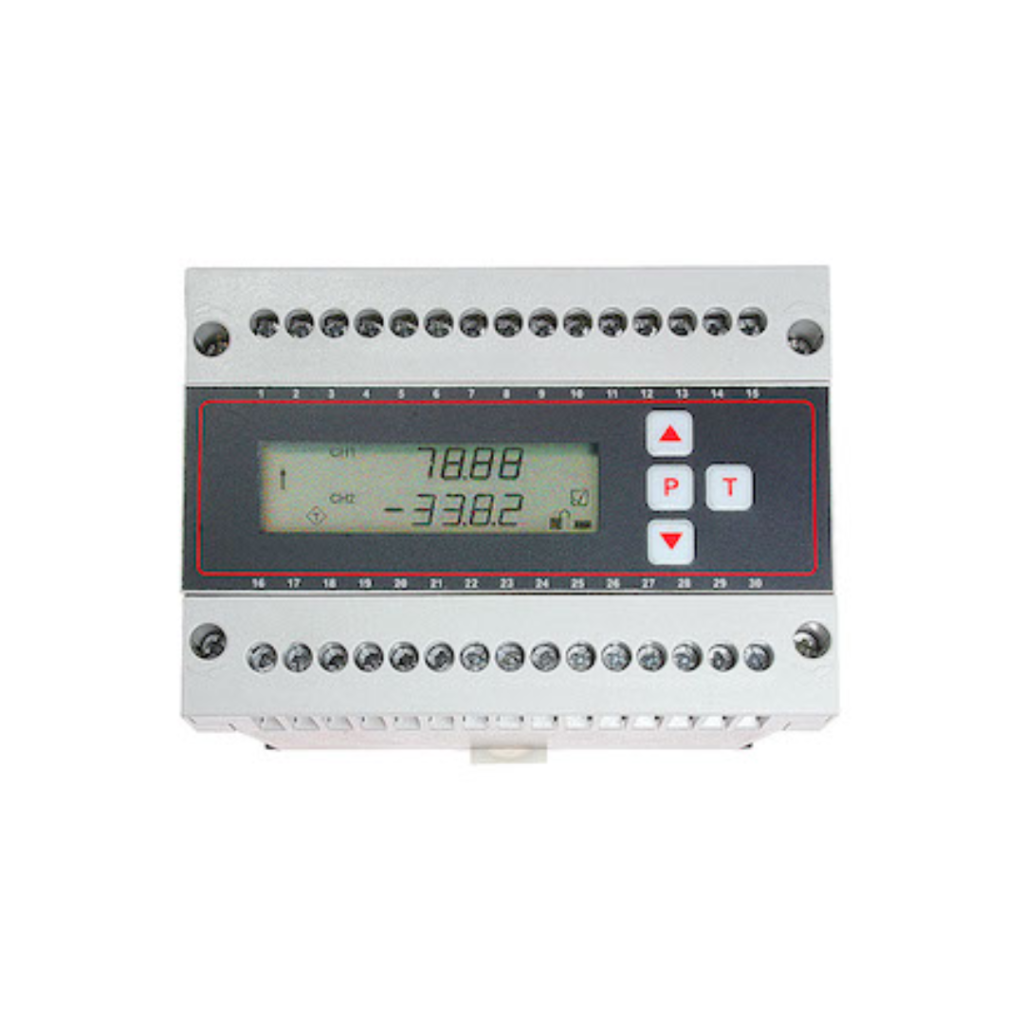

Müller Digital strain gauge and standard signal amplifier (ADLM-NS)
Product Code: ADLM-NS
Manufacturer: Müller
Download PDF
Technical Features
- Input Strain gauge: up to 4 full bridges
- Input sensitivity: 0,1…5 mV/V
- Input standard signal: 4…20 mA, 0…10 V
- Analog output: 4…20 mA / 0…10 V
- Voltage supply: 24 VDC
- Resolution: 12 / 14 / 15 / 16 bit
- Combined error: 0,2% of end scale value
- Optionally: limit value switch / interface
- Degree of protection: IP20
- Adjustment: via RS232 interface
Müller Digital strain gauge and standard signal amplifier (ADLM-NS)
Download PDF
Technical Features
- Input Strain gauge: up to 4 full bridges
- Input sensitivity: 0,1…5 mV/V
- Input standard signal: 4…20 mA, 0…10 V
- Analog output: 4…20 mA / 0…10 V
- Voltage supply: 24 VDC
- Resolution: 12 / 14 / 15 / 16 bit
- Combined error: 0,2% of end scale value
- Optionally: limit value switch / interface
- Degree of protection: IP20
- Adjustment: via RS232 interface
