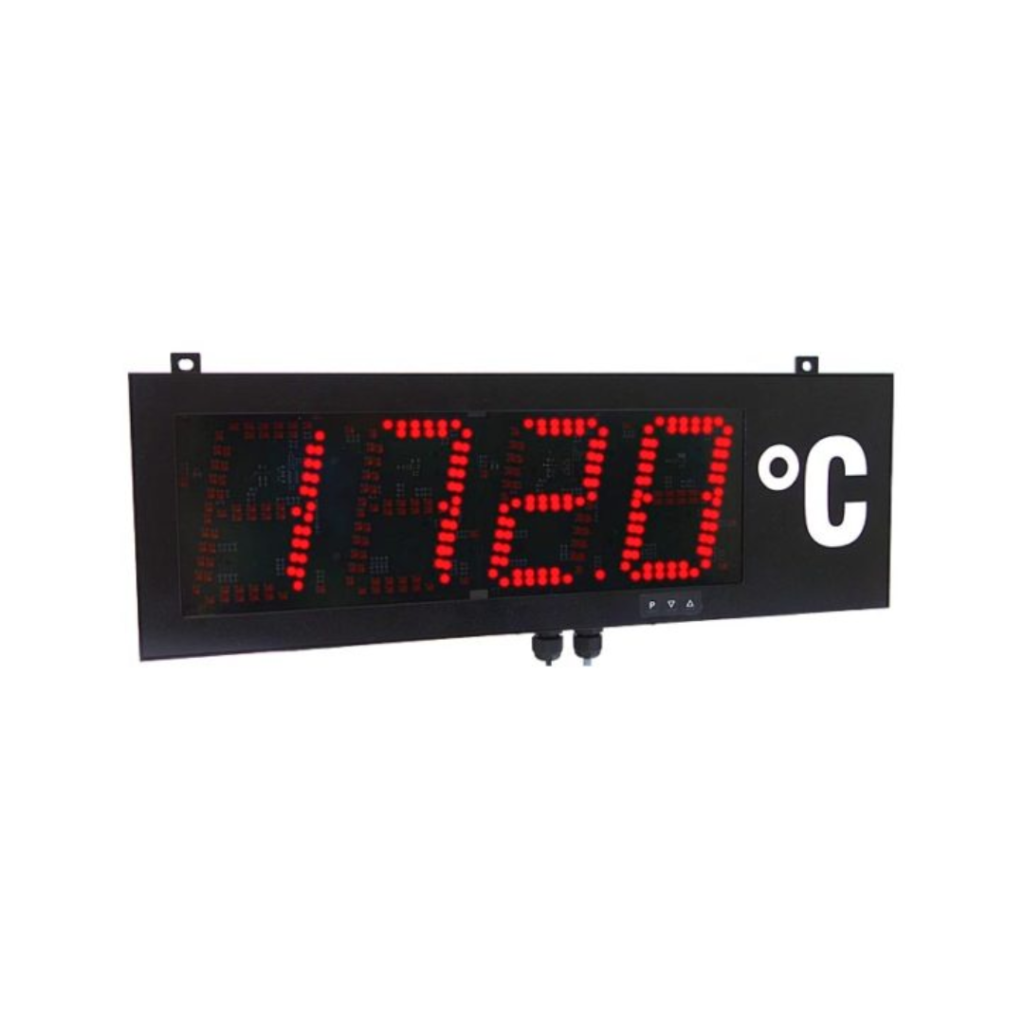

This Müller Digital Large Indicator (MG-AU) large-format digital display offers a red readout ranging from -1999 to 9999 digits, with optional 6- or 8-digit versions and digit heights of 57 mm, 100 mm, or 200 mm for enhanced visibility. Designed for wall mounting, it features an IP65-rated enclosure with a built-in membrane for pressure equalization and ventilation. The unit supports display adjustments via factory defaults or directly from sensor signals, along with min/max value recording, a Tara function, and 9 configurable support points. Visual alerts are triggered when threshold values are exceeded or undercut, and an integrated brightness sensor optimizes display clarity. Additional features include two switching points, a programming interlock via access code, and optional cable lengths (2m, 5m, or 10m), external keypad connectivity, and Bluetooth communication. A PC-based configuration kit (PM-TOOL) with CD and USB adapter is also available for easy setup and customisation.
- red display of von -1999…9999 digits (optional 6 or 8 digits)
- digit height 57 mm, 100 mm or 200 mm
- protection class IP65
- wall mounting housing
- membrane for pressure equalisation for air ventilation and air vent
- display adjustment via factory setting or directly on the sensor signal
- minimum/maximum value recording
- 9 additional, adjustable supporting points
- display flashing at threshold value exceedance / undercut
- tara function
- brightness sensor
- programming interlock via access code
- 2 switching points (closer)
- optional: fix cable outlet 2m, 5m or 10m
- optional: connection via external keypad
- on request: communication via Bluetooth
- accessories: PC-based configuration kit PM-TOOL with CD and USB-plug
