Müller Conductive Level Sensor
Click to enlarge

Müller Conductive Level Sensor

Müller Conductive Level Sensor

Product Code: PT-HL-T-C

Manufacturer: Müller

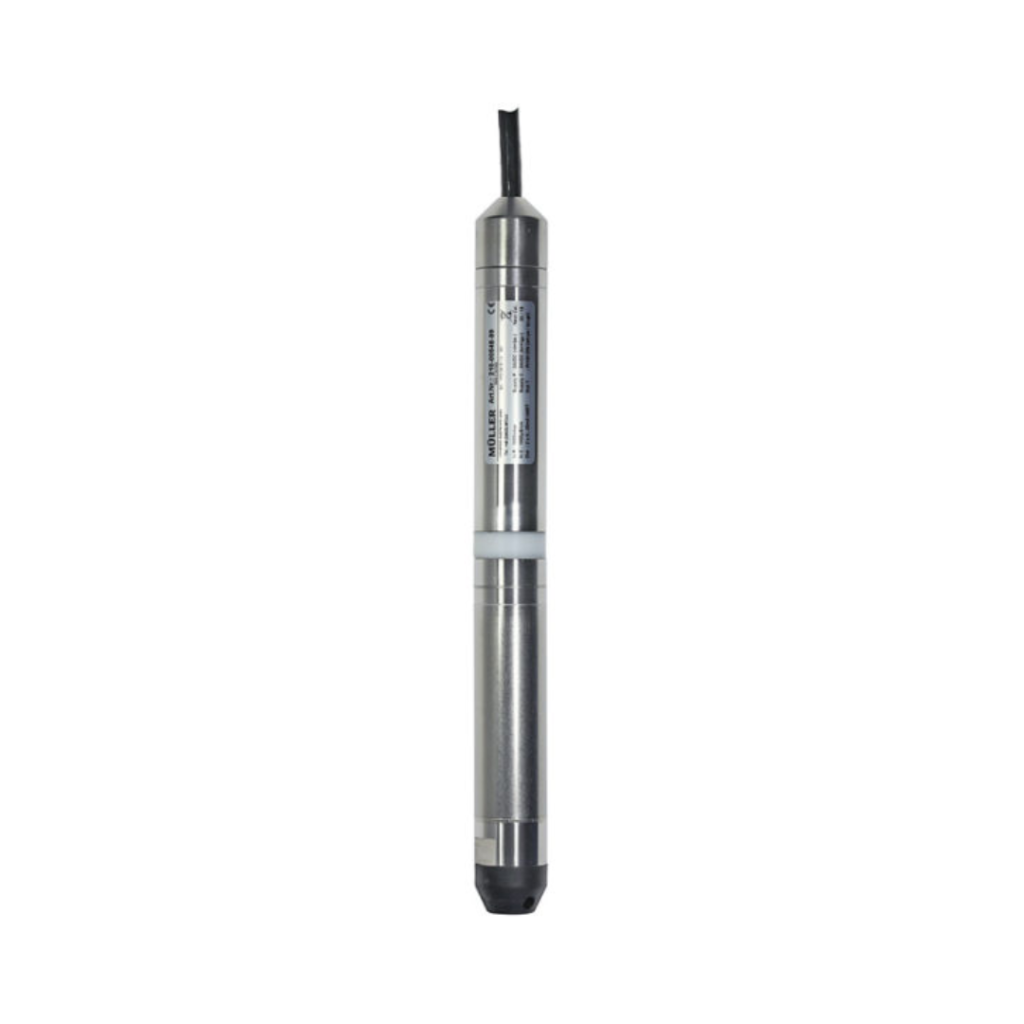

The Müller Conductive Level Sensor immersion probe PT-HL-T-C uses two transmitters for combined pressure and conductivity measurement. In addition, the temperature of the medium is measured via an integrated Pt100. The immersion probe is suitable for numerous applications in industrial level measurement.



  • Ranges: 0…0,1 bar up to 0…25 bar
  • Output: 4…20 mA
  • Accuracy: 20% of span (conductivity)
  • Temperature range: -10…+85 °C maximum with FEP-cable
  • Material casing: CrNi steel 316L
  • Electrical connection: Fixed cable, open end, 15 m (standard)
  • Protection: IP68
  • Pressure connection: CrNi: 1/2″ B
  • Immersion depth: 300 m maximum with PUR-cable
Datasheet Download
