The New U1000MKII-HM is a “Best Value” Clamp-on, Ultrasonic heat meter alternative to traditional inline energy meters, for energy management and billing applications in domestic and commercial, district or shared heating or cooling systems. Offering significant installation cost and dry maintenance benefits over traditional inline products.
Key Features & Benefits
New: larger pipe range 2 options, fully adjustable for 22mm – 115mm and 125mm – 180mm (6″) OD
New: Optional Modbus RTU slave, RS485 serial and M-Bus communication.
New: cross correlation flow measurement system
New: 1Mhz transducers to get through poor/old thick wall pipes and larger pipework
New: Water/Glycol option

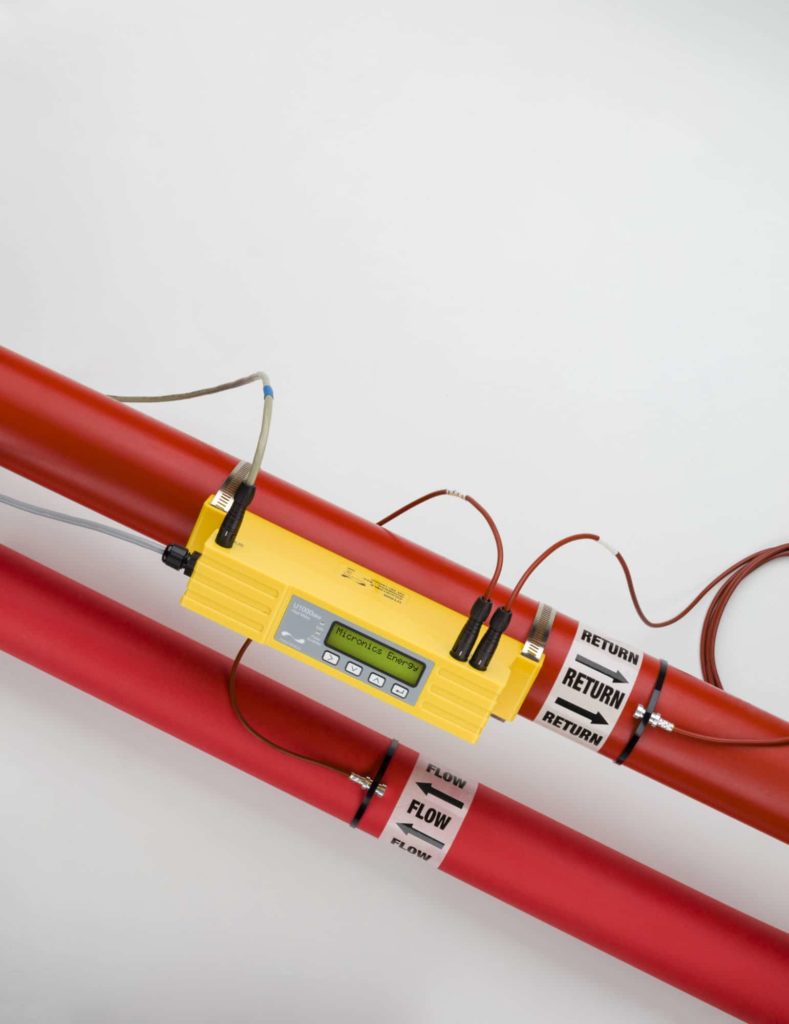

Simple to install: connect power and enter the pipe inside diameter, adjust the sensors and clamp-on the pipe, no specialist skills or tools required
A clamp-on non-invasive alternative heat meter to traditional in-line meter installation, plus dry servicing, providing minimum downtime and maximum availability.
LCD with backlight – install & service information.
Integrated pulse output – aM&T & BEM’s compatible with Modbus.
Micronics U1000MKII-HM Clamp-on Heat Meter/Energy Meter
The New U1000MKII-HM is a “Best Value” Clamp-on, Ultrasonic heat meter alternative to traditional inline energy meters, for energy management and billing applications in domestic and commercial, district or shared heating or cooling systems. Offering significant installation cost and dry maintenance benefits over traditional inline products.
Key Features & Benefits
New: larger pipe range 2 options, fully adjustable for 22mm – 115mm and 125mm – 180mm (6″) OD
New: Optional Modbus RTU slave, RS485 serial and M-Bus communication.
New: cross correlation flow measurement system
New: 1Mhz transducers to get through poor/old thick wall pipes and larger pipework
New: Water/Glycol option
Simple to install: connect power and enter the pipe inside diameter, adjust the sensors and clamp-on the pipe, no specialist skills or tools required
A clamp-on non-invasive alternative heat meter to traditional in-line meter installation, plus dry servicing, providing minimum downtime and maximum availability.
LCD with backlight – install & service information.
Integrated pulse output – aM&T & BEM’s compatible with Modbus.
