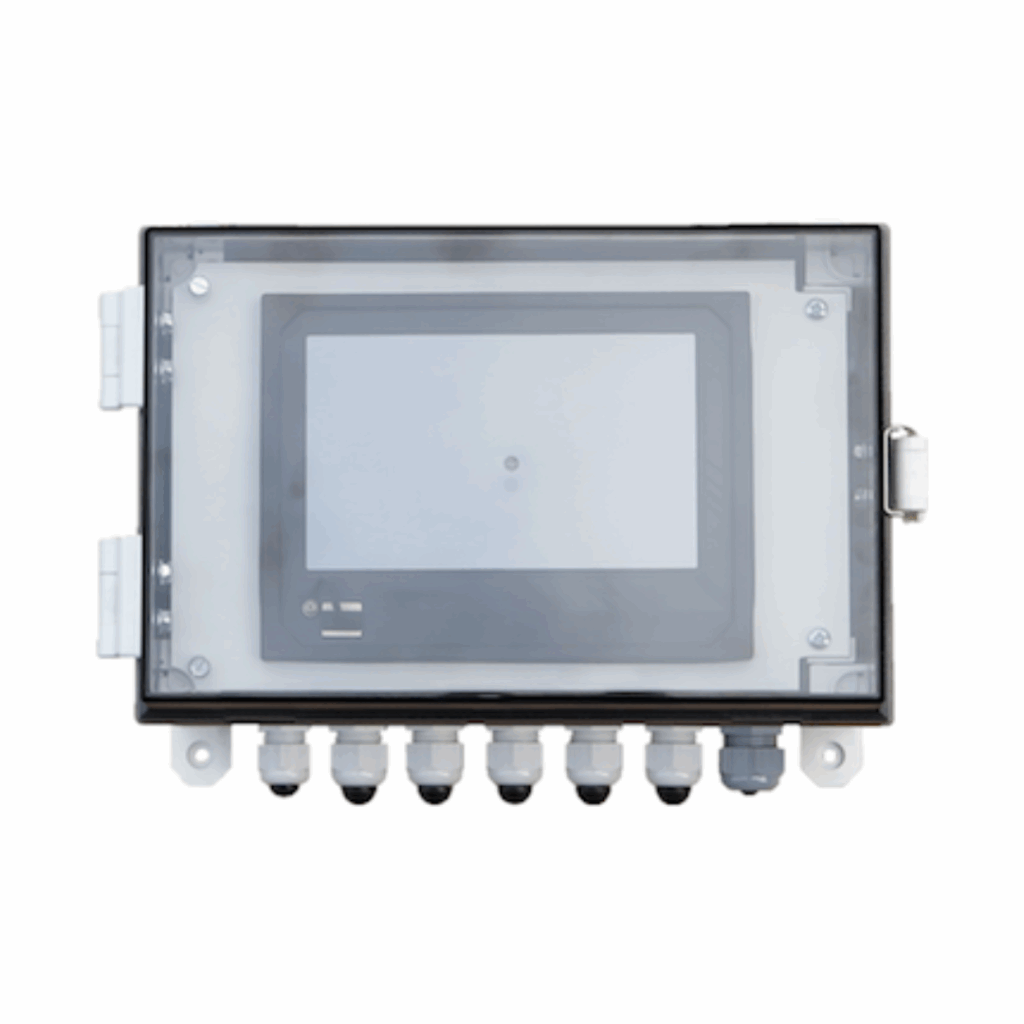

Metronic DL7W KIT is a wall enclosure for DL7 data logger. Enables the installation of the DL7 data logger indoor or outdoor. Openable front panel enables electrical connection without the need to disassemble the device and the entire enclosure.
The device can be supplied using the installed power supply (typical power supply: 230 VAC / 24 VDC switching power supply, the device can be supplied from 24 VDC source). Local regulations may require installation of an external fuse and circuit breaker.
Additional elements with a maximum depth of 30 mm can be installed on the TS-35 rail.
• Transparent door closed with a latch
• The possibility of closing the padlock or placing a seal
• High degree of protection (IP65)
• TS-35 rail enabling the montage of additional elements
• Switching power supply 230 VAC / 24 VDC (25 W or 50 W)
• 6 cable glands for connecting I/O signals
• 1 cable gland for connecting an Ethernet cable with an RJ-45 connector
• Openable mounting plate – easy electrical installation
