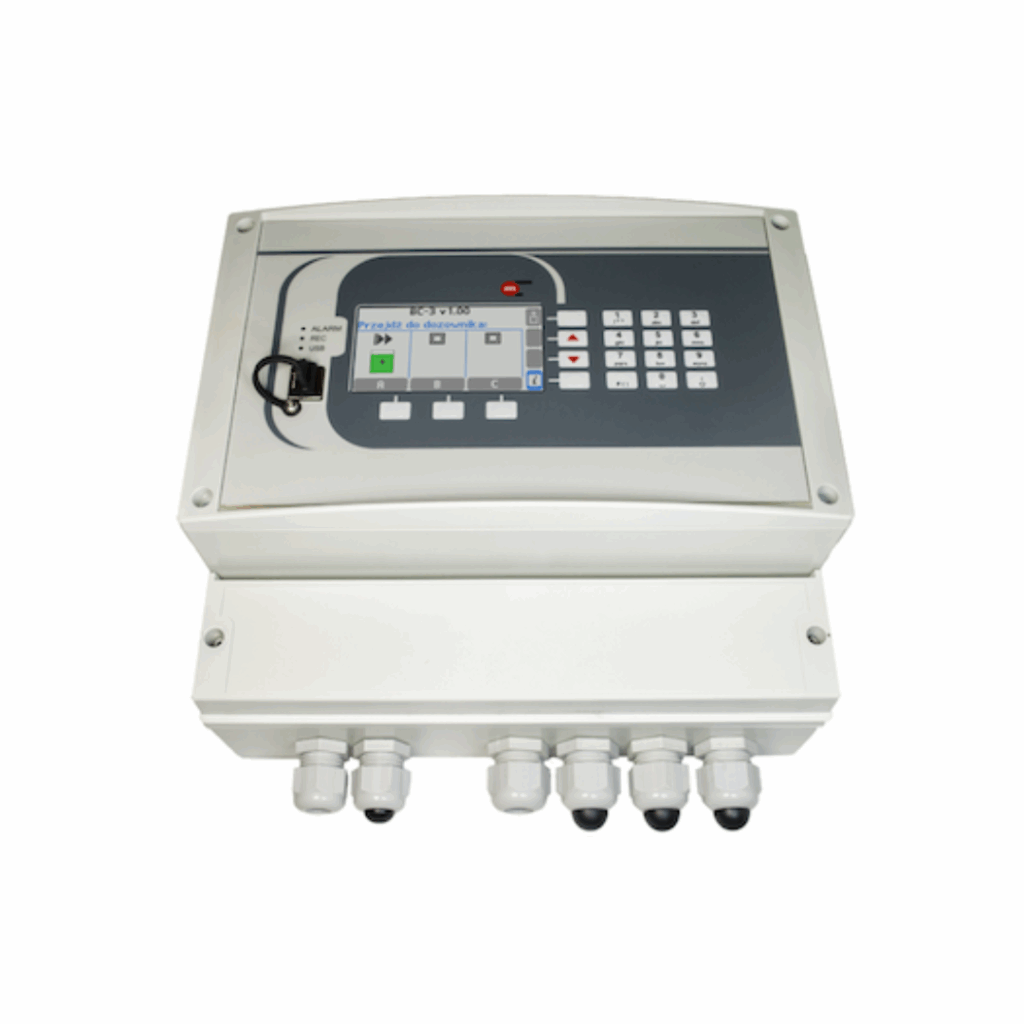

Metronic BC-3N Batch-Controller in wall-mounted case. Allows metering of the specified quantity of media by working with the flow meter and valve / valves control via 4-20mA relay or analogue outputs.
• Up to 3 batch systems
• One or two-step batching mode
• 5 measurement inputs
• 4 semiconducting output relays rated at 01.A / 60V
• 1 or 2 4-20mA analog outputs (optional)
• Valves can be controlled by relay outputs or by 4-20mA analog output
• 2 totalizers for each inputs or batcher
• Results recorded in internal 2GB memory. Local access to stored data through USB port on face plate
• RS-485 communication port, Modbus RTU protocol
• Ethernet communication port; Modbus TCP protocol, WWW server
• 19-buttons extended keyboard version (makes it easier to enter and edit numbers, text, formulas and passwords
