Exner EXstatic 312 Hygienic Process Connections

Exner EXstatic 312 Hygienic Process Connections

Product Code: EXstatic 312

Manufacturer: Exner

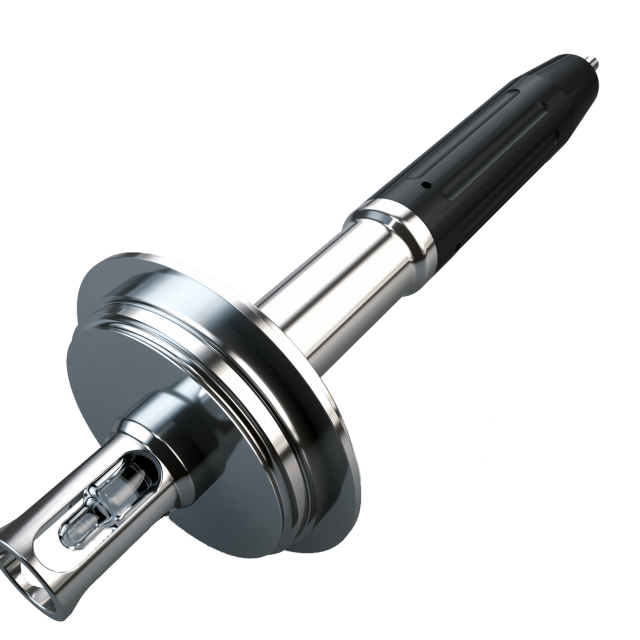

Exner EXstatic 312 Hygienic Process Connections.  Static probe housing for permanent installation of Ø12mm/120mm-sensors on tanks or pipelines by hygienic process connections. The probe housings are very easy to install and can be delivered with or without a sensor protection cage. The sensors used, especially glass sensors are very well protected against mechanical influences.

  • Designed according to hygienic criteria
  • Surface finish Ra<0,78 or Ra<0,37
  • Stainless steel AISI 316L / 1.4404
  • EPDM sealings with FDA and USP VI approval
  • Design process connections according to EHEDG / 3A
  • Optional sensor protection cage
  • Up to 10 bar and 140 °C
  • Protection cap for cable connection
Datasheet Download
Technical Manual Download
