Exner EXstatic 311 TriClamp Connection

Exner EXstatic 311 TriClamp Connection

Product Code: EXstatic 311

Manufacturer: Exner

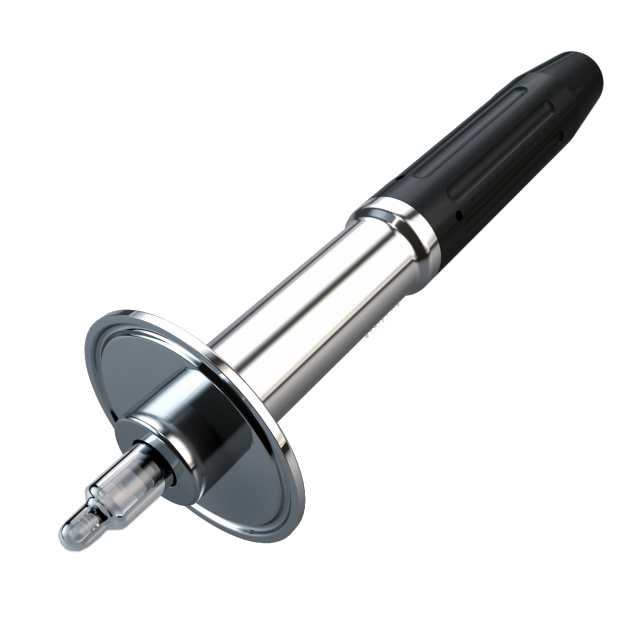

Exner EXstatic 311 TriClamp Connection. Static probe housing for permanent installation of Ø12mm/120mm-sensors on tanks or pipelines by TriClamp process connection. The probe housings are very easy to install and can be delivered with or without a sensor protection cage. The sensors used, especially glass sensors are very well protected against mechanical influences.

  • Designed according to hygienic criteria
  • Surface finish Ra<0,78 or Ra<0,37
  • Stainless steel AISI 316L / 1.4404
  • EPDM sealings with FDA and USP VI approval

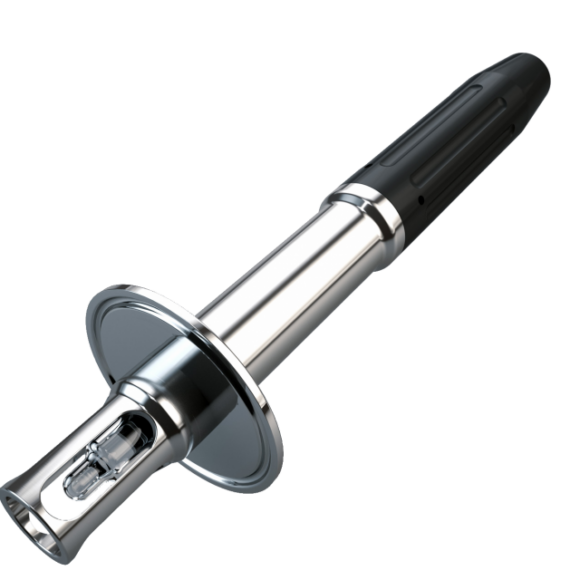

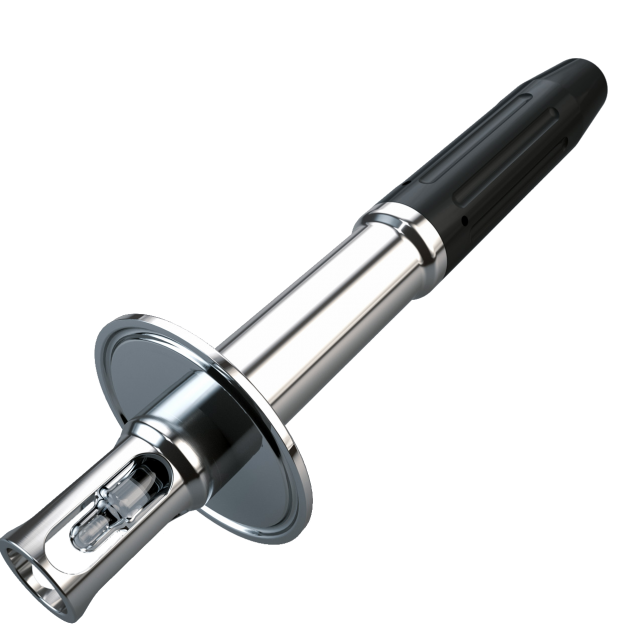

  • Optional sensor protection cage
  • Up to 10 bar and 140 °C
  • Protection cap for cable connection
Datasheet Download
Technical Manual Download
