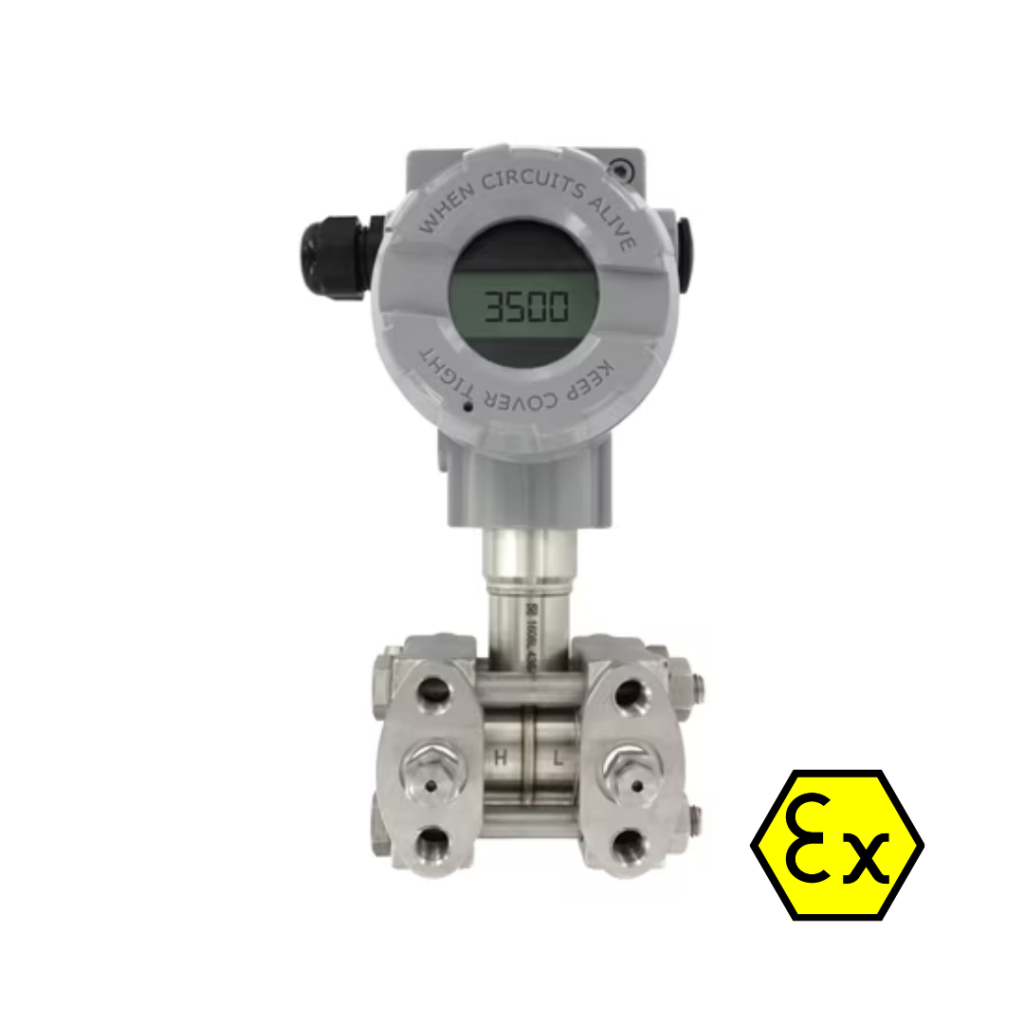

Dwyer Omega – Series 3500 Smart Differential Pressure Transmitter, HART®, ATEX/IECEX, customizable
Product Code: Series 3500
Manufacturer: Dwyer Omega
The Series 3500 Smart Differential Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and is programmable using HART® Communication. The Series 3500 is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3500 can be configured to be ATEX or IECEX approved for use in hazardous (classified) locations. The rangeability allows the smart transmitter to be configured to fit any application.
Accuracy
± 0.075 %
Accuracy Detail
± 0.075% FS (@ 20°C)
Applications
Chemicals, Filter Monitoring, Fluid Measurement and Control, Food and Beverage, Fuel and Gas, Level Monitoring and Control, Oil, Petrochemical, Pump Control
Compliance
CE
Compliance Note
CE; -IS, -FP suffix: ATEX Compliant CE 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. TypeCertificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013.
Damping Time
0 to 60 s
Electrical Connection
1/2 in NPT female Conduit with Screw Terminal block
Electrical Output
4 to 20 mA
Enclosure Ratings
IP66, IP67, NEMA Type 4X
Long Term Stability
≤0.075% FSO/3 years
Materials
Aluminum
Materials, Wetted
316L Stainless Steel, FKM
Media Compatibility
Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam
MTBF
1,000,000 hours
Output Signal
Current
Measurement Pressure Type
Differential
Process Connection Size
1/4 in
Process Connection Type
NPT Female
Response Time
16 to 480 ms
Supply Power Type
DC
Supply Voltage
10 to 55 Vdc
Thermal Effects
< ± 0.05% span/10°C
