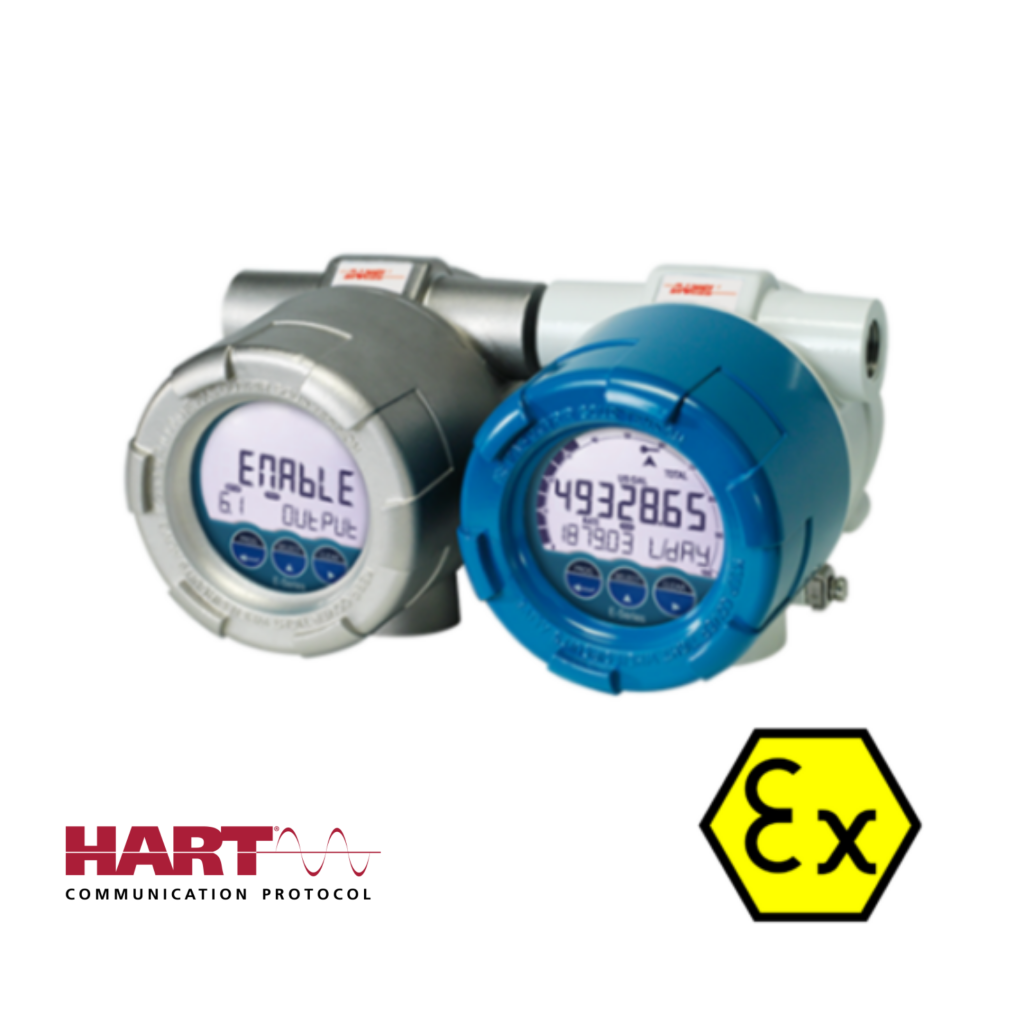

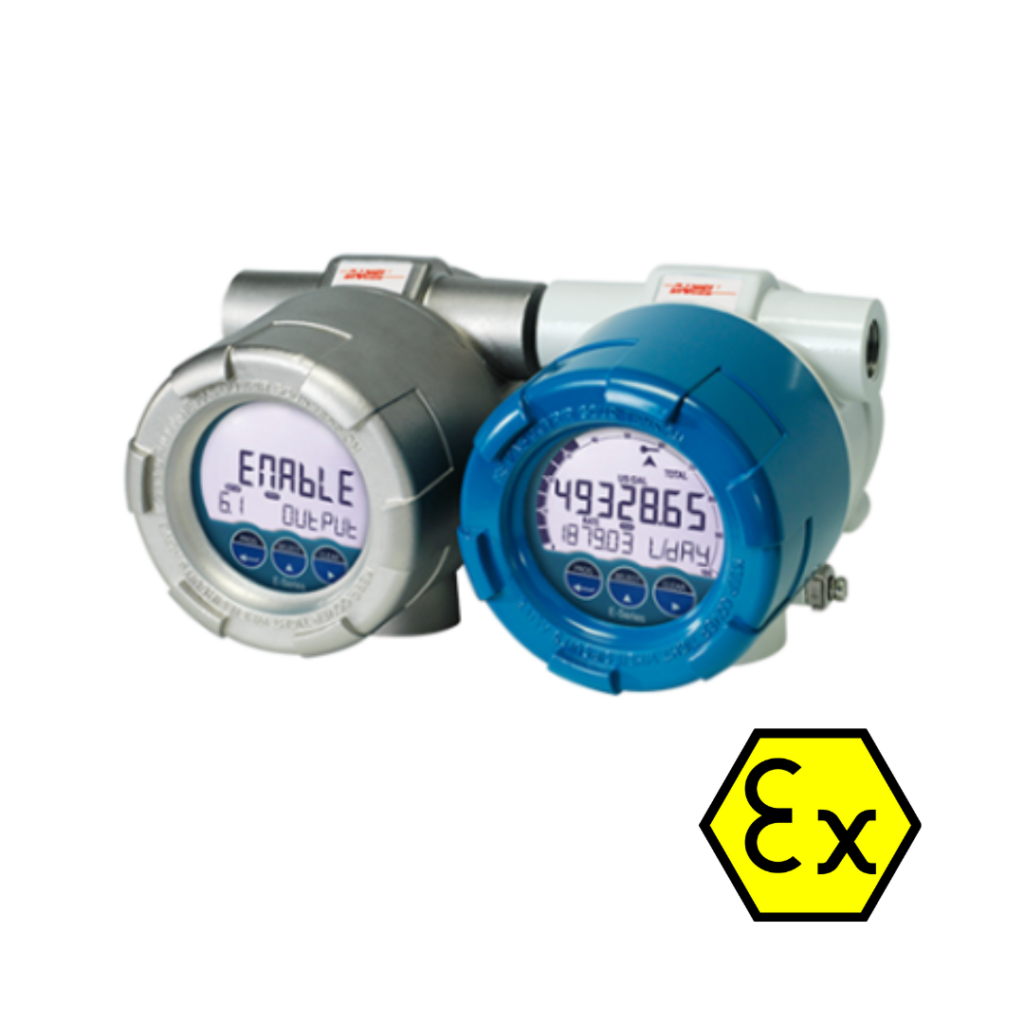

Daniel XRT Totalizer is a rugged, explosion-proof flow rate indicator and totaliser engineered to deliver accurate flow measurement and cumulative totals when paired with mechanical flow meters such as Daniel Series 1200 or 1500 liquid turbine meters ideal for oil & gas custody transfer, terminal metering and industrial fluid monitoring systems.
Built for harsh and hazardous environments, the XRT features ATEX, IECEx, FM and CSA explosion protection, a high-visibility display with LED backlight, intuitive through-glass keypad control and support for HART communications for remote diagnostics and configuration.
The totalizer provides linearised flow rate, total, accumulated total, daily and previous day totals, while accepting multiple signal types including sine-wave (coil), NAMUR, NPN/PNP pulse, Reed-switch and (0)4-20 mA inputs.
With scalable pulse outputs, loop-powered 4-20 mA retransmission and optional Modbus RS232/RS485/USB connectivity, the XRT enables precise volumetric or mass metering, data logging and robust communications critical for fiscal accountability, plant control and regulatory compliance in process industries.
- Explosion proof according ATEX, IECEx, FM and CSA c-us
- Displays flow rate, total, acc. total, daily total, previous day total, measuring units and a flow rate indicating speedometer
- Bright LED backlight
- Easy K-factor configuration for volumetric or mass
- 15 point linearization of the flow curve – with interpolation
- Ability to process all types of signals: Sine wave (coil), NAMUR, NPN/PNP pulse, Reed-switch, Active pulse signals, (0)4 – 20mA
- Scaled pulse output according to linearized acc. total and input retransmission
- Loop powered 4-20mA output acc. linearized flow rate
- Modbus RS232 / RS485 or USB communication
- Power requirements: Loop powered, battery or 9 – 27V DC
- Sensor supply: 8.2 / 12 / 24V DC
- Auto backup of settings and running totals
- Easy configurable via PC with free downloadable software
- Data logging of flow rate, total and accumulated total
